<11. Inspection and Maintenance>
11-10
IM 11M12G01-02EN 1sh Edition : Mar. 25, 2021-00
11.2.2 Cleaning
Use a soft dry cloth to clean any part of the converter during inspection and maintenance.
11.2.3 Adjust LCD panel
Adjust he position of touch button or brightness of LCD panel.
“Sensor menu” > “Other menu” > “Adjust panel”

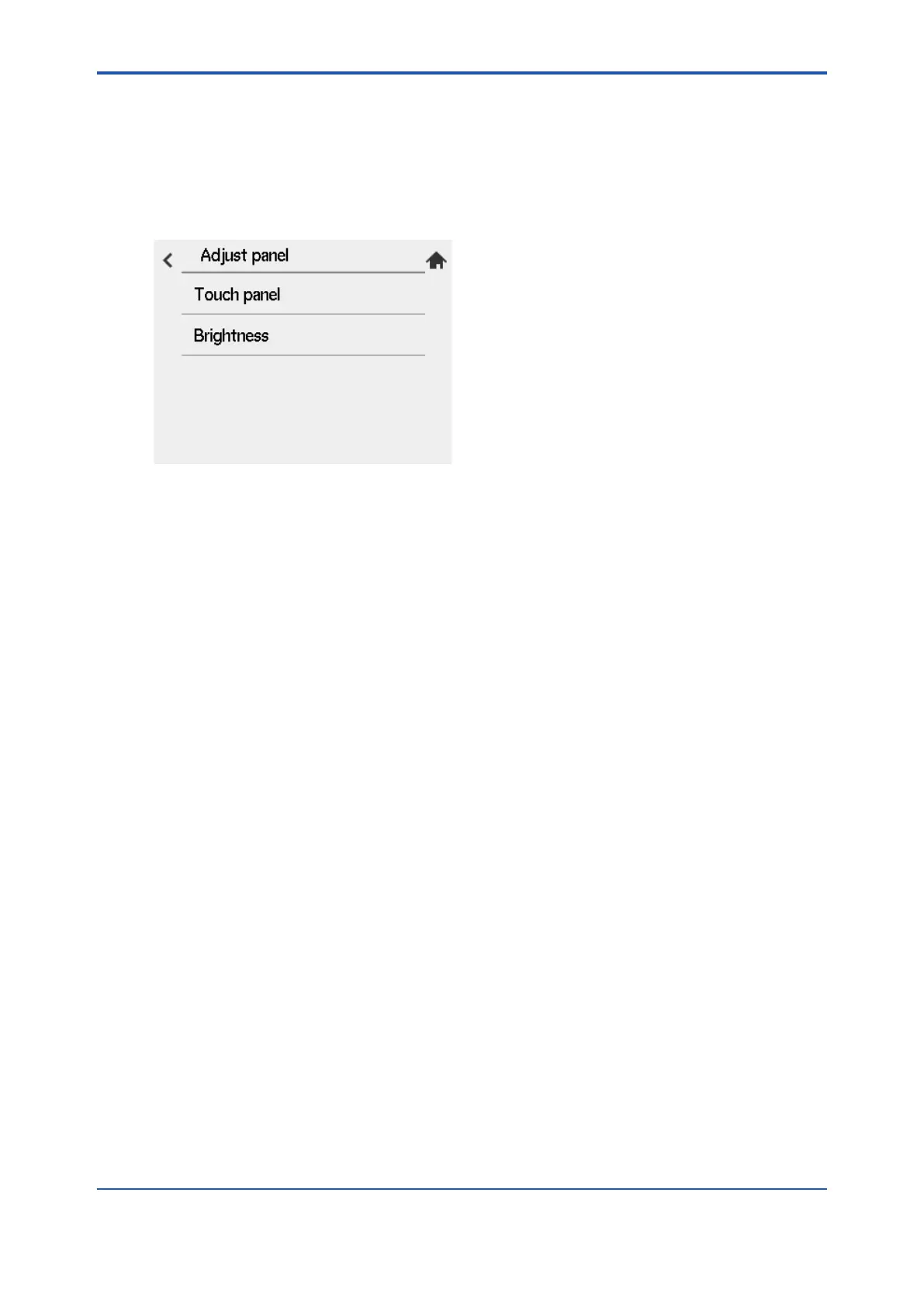

Figure 11.8 Adjust panel
n Touch panel
l How to adjust the touch panel
(1) Touch “+” and you will see “Please touch the point”.
(2) Touch “+” and hold until you see “Please release from the point”.
(3) Once you release the point, “+” moves to 2nd place.
Touch and hold “+” until you see “Please release from the point.” Release the point.
(4) After completing the touch and hold the 4th place, you will see “Please check the calibration
result.”
If you touch the screen, the point you touched shows “Displayed point” by coordinate points.
in coordinates of both points are acceptable.
To leave the screen, touch and hold it for three seconds.
