  <2.Specications>
2-9
IM 11M12G01-02EN 1sh Edition : Mar. 25, 2021-00

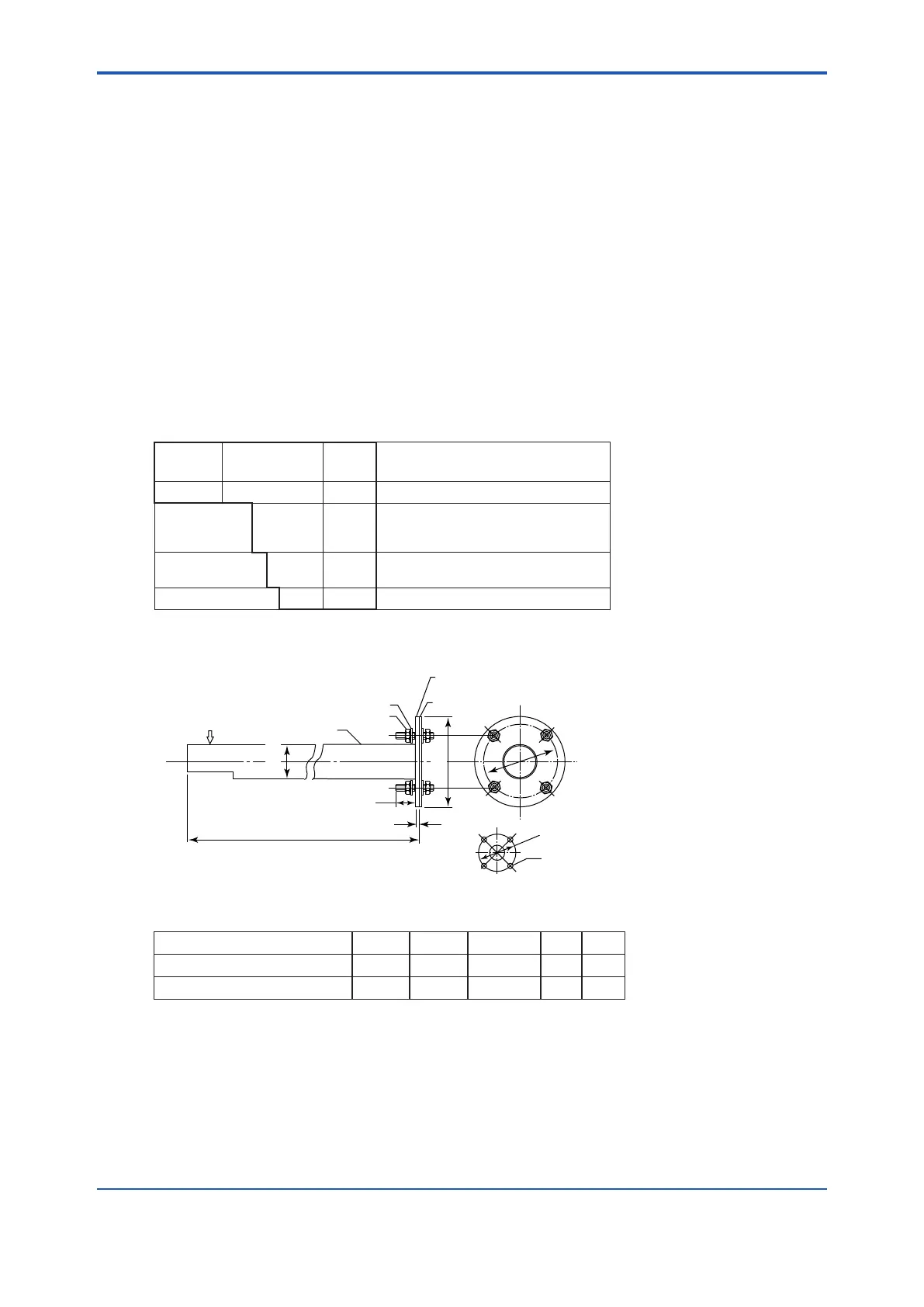

2.2.2 ZO21R Probe Protector


the detector from wearing by dust particles. When probe insertion length is 2.5 m or more and
horizontal installation, specify the ZO21R-L-200-
*B to reinforce the probe.
Insertion Length: 1.05 m, 1.55 m, 2.05 m.
  
󰀨
Material: SUS316 (JIS), SUS304 (JIS) or ASTM grade 304 (Flange)
  
   
   
Installation: Bolts, nuts, and washers are provided for detector, probe adapter and

l Model and Codes
Model Su󰀩x code
Option
code
Description
ZO21R -L - - - - - - Probe Protector(0 to 700 °C)
Insertion
length
-100
-150
-200
- - - - - -
- - - - - -
- - - - - -
1.05 m (3.5 ft)
1.55 m (5.1 ft)
2.05 m (6.8 ft)
Flange ( *1) -J
-A
- - - - - -
- - - - - -
JIS 5K 65 FF
ANSI Class 150 4 FF
Style code *B - - - - - - Style B
 
t
F2-3E.ai
D
Ø
B
C
Ø
B
Flange <1>
(with bolts, nuts and washer)
gasket (t3.0)
SUS316
Dimensions of
holes on opposing surface
ØA
Gas flow
Washer (12)
Mounting nut (M12)
l (Insert length)
l=1050,1550,2050
Ø60.5
Flange<1> A B C t D
JIS 5K 65 FF 155 130 4 - Ø15 5 40
ANSI Class 150 4 FF 228.6 190.5 8 - Ø19 12 50
