<8. Detailed Data Setting>
8-18
IM 1
1M12G01-02EN
1sh Edition : Mar
. 25, 2021-00
8.7
Other
Settings
8.7.1
Setting the Date-and-T
ime
The following describe how to set the date-and-time.
Automatic calibration or blow back works
following this setting.
Proceed
as follows:
(1)
“Converter menu” > “Others”
(2)
Select “Date/Time setting”.
(3)
Input date and time. When you press “Adjust” the operation starts at the time you have set.

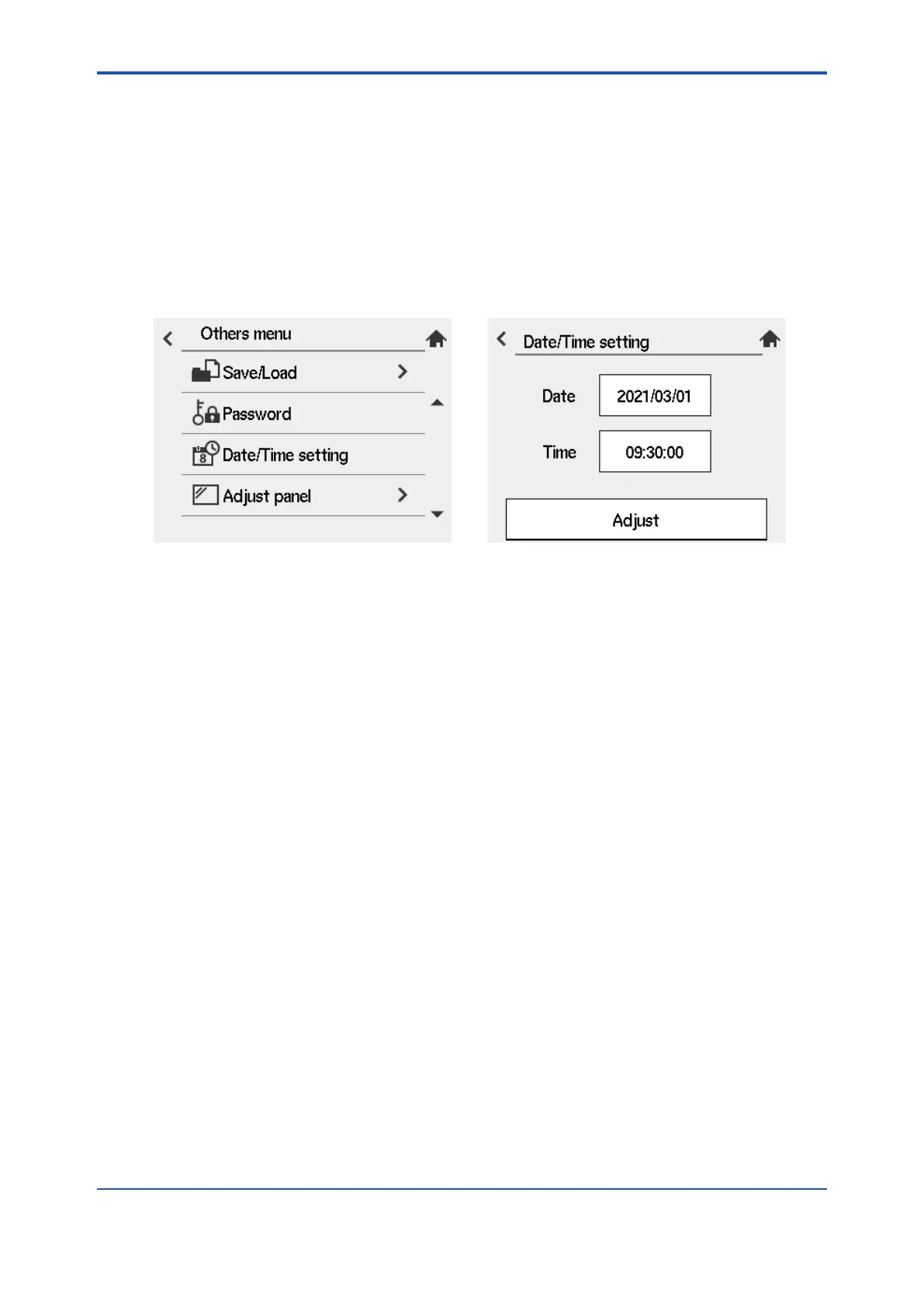

Figure
8.12
Date/T
ime
setting
140
142
