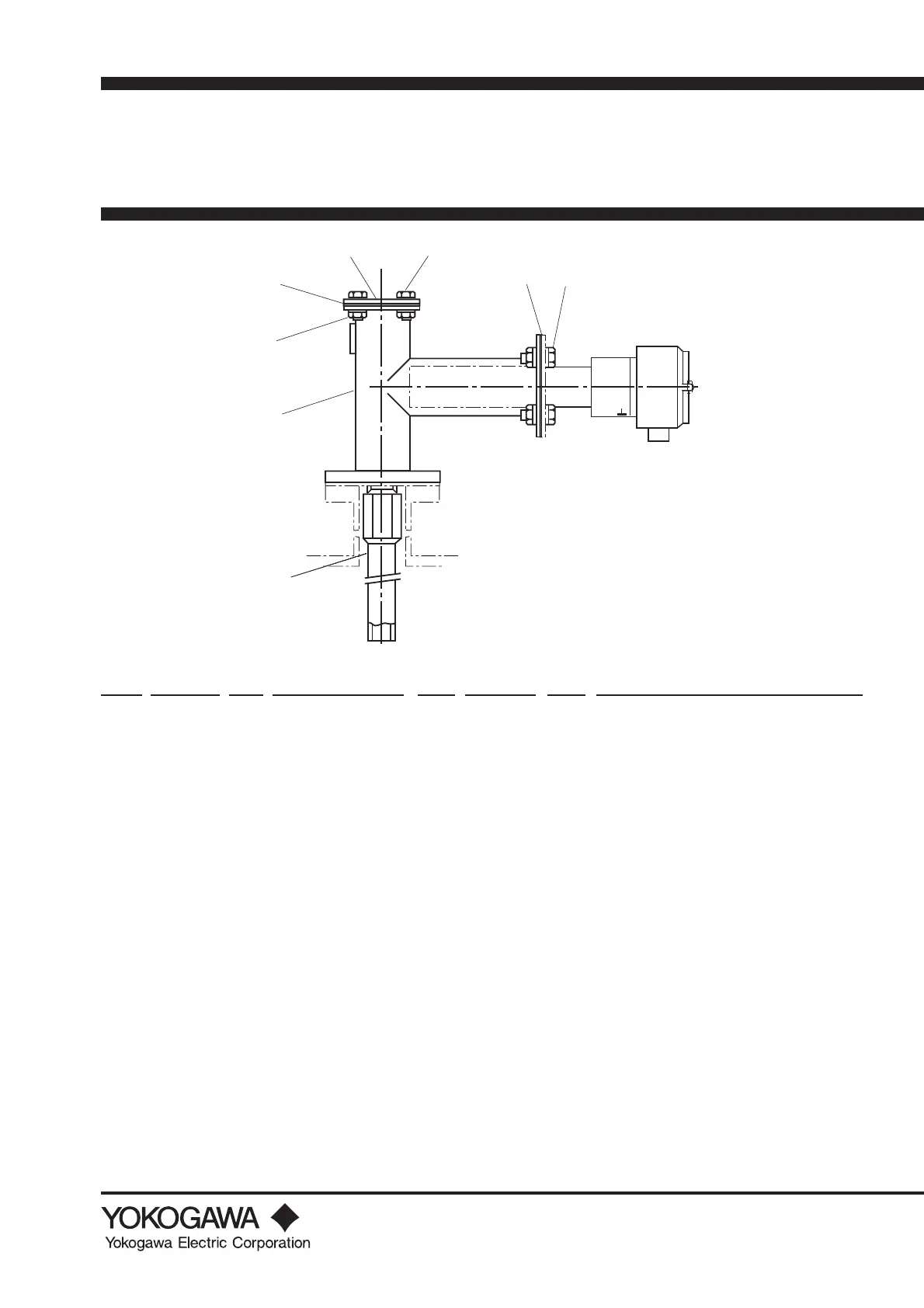

Model ZO21P-H
Zirconia Oxygen Analyzer
High Temperature Probe Adaptor
CMPL 11M03B01-10E
1st Edition : Dec. 2000 (YK)
8th Edition : Sep. 2012 (YK)
1
2
3
4
5,6
7 8,9,10
11
ZR22G
Item Part No. Qty Description Item Part No. Qty Description
1 K9292TP
E7046CF
K9292TQ
E7046CG
E7046CH
E7046AL
E7046BB
K9292TV
E7046CR
K9292TW
E7046CS
E7046CT
E7046AP
E7046AQ
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Probe (SiC, L=0.5m)
Probe (SiC, L=0.6m)
Probe (SiC, L=0.7m)
Probe (SiC, L=0.8m)
Probe (SiC, L=0.9m)
Probe (SiC, L=1.0m)
Probe (SiC, L=1.5m)
Probe (SUS, L=0.5m)
Probe (SUS, L=0.6m)
Probe (SUS, L=0.7m)
Probe (SUS, L=0.8m
Probe (SUS, L=0.9m
Probe (SUS, L=1.0m
Probe (SUS, L=1.5m
2 E7046FA
E7046FE
E7046FK
E7046FD
E7046FC
E7046FB
E7046FG
E7046FF
E7046FJ
E7046FH
1
1
1
1
1
1
1
1
1
1
Probe Adaptor (for JIS 5K-50-FF)
Probe Adaptor (for ANSI CLASS150-4-RF)
Probe Adaptor (for DIN PN10-DN50-A)
Probe Adaptor (for JIS 10K-100-FF)
Probe Adaptor (for JIS 10K-80-FF)
Probe Adaptor (for JIS 10K-65-FF)
Probe Adaptor (for ANSI CLASS150-3-RF)
Probe Adaptor (for ANSI CLASS150-2 1/2-RF)
Probe Adaptor (for JPI CLASS150-4-RF)
Probe Adaptor (for JPI CLASS150-3-RF)
3
4
5
6
7
E7046FQ
E7046FN
Y9825NU
Y9800WU
G7073XL
1
1
4
8
1
Gasket
Plate
Bolt
Washer
Gasket
8
9
10
11
Y9630RU
Y9121BU
Y9120WU
Y9801BU
4
4
4
4
Bolt
Nut
Washer
Nut
