YOKOGAWA ZR22G User Manual

Customer
Maintenance
Parts List
All Rights Reserved, Copyright © 2000, Yokogawa Electric Corporation.
Subject to change without notice.
Model ZR22G
Zirconia Oxygen/Humidity Analyzer, Detector
(Separate type)
CMPL 11M12A01-02E
1st Edition : Aug. 2000 (YK)
10th Edition : Oct. 2019 (YK)
ZR22G.ai
ZR22A

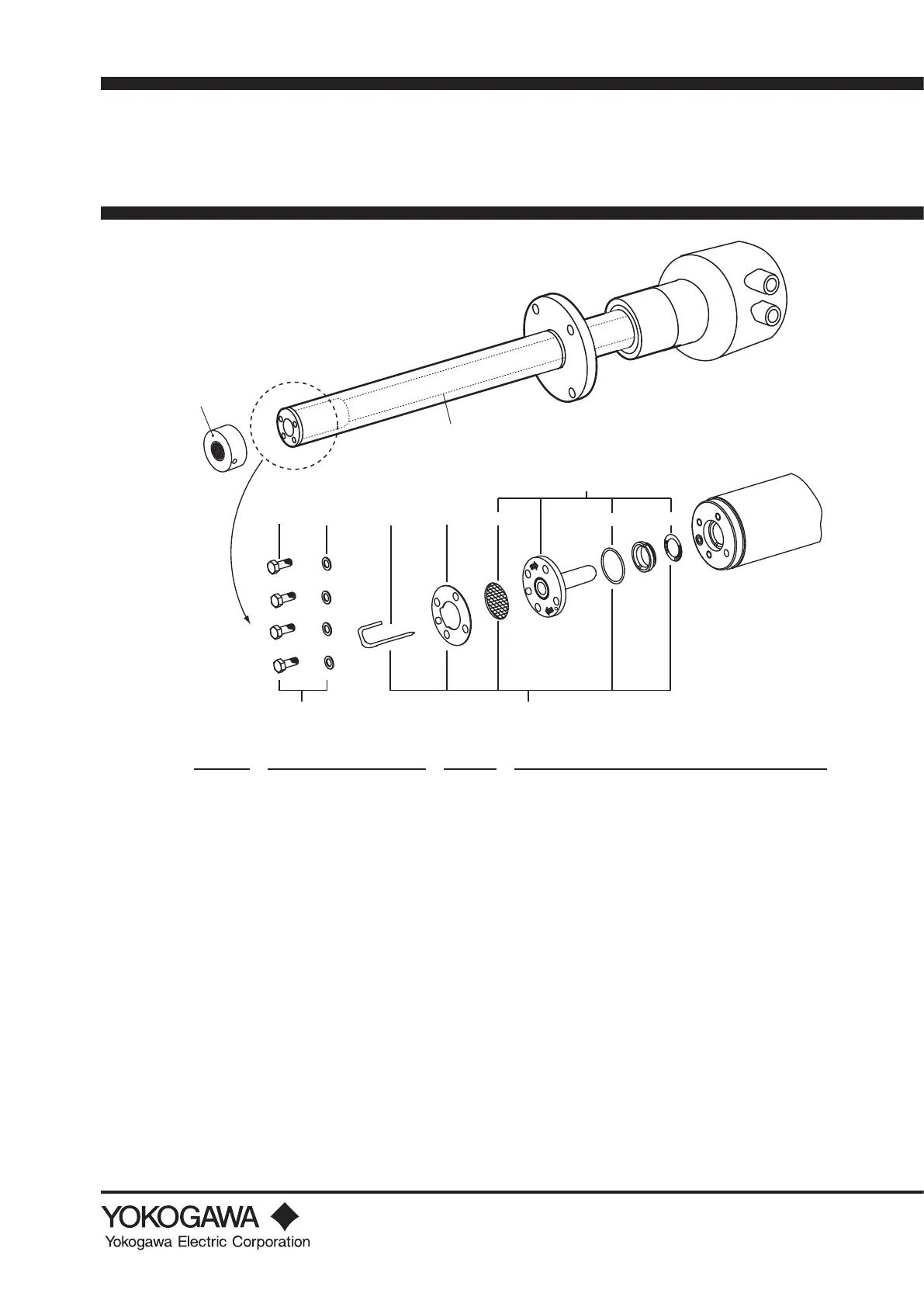

Heater Assembly
4 11
2
3
6 5
10
9 8
7
1
Item Part No. Qty Description
1
2
3
4
5
6
7
8
9
10
11
K9471UA
---
G7109YC
K9470BK
E7042DW
---
K9470ZF
K9470ZG
E7042BR
K9470BM
K9473AN
---
E7042UD
ZR01A01
E7042BS
K9470BJ
E7042AY
---
K9470ZK
K9470ZL
1
4
4
1
1
1
1
1
1
1
1
1
Dust Filter (Option)
Bolt
(M5x12, SUS316 stainless steel)
(M5x12, inconel) for Option code "/C"
Washer (SUS316 stainless steel)
Bolts and Washers
G7109YC x 4 + E7042DW x 4
K9470BK x 4 + E7042DW x 4 for Option code "/C"
Plate
Pipe
Pipe for Option code "/C"
Cell Assembly
only for Japan
for other than Japan
Contact
Metal O-ring
Filter
Calibration Tube Assembly
Cal. Gas Tube Assembly
Cal. Gas Tube Assembly for Option code "/C"
