Canon iR6000 Service Manual

COPYRIGHT © 2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000

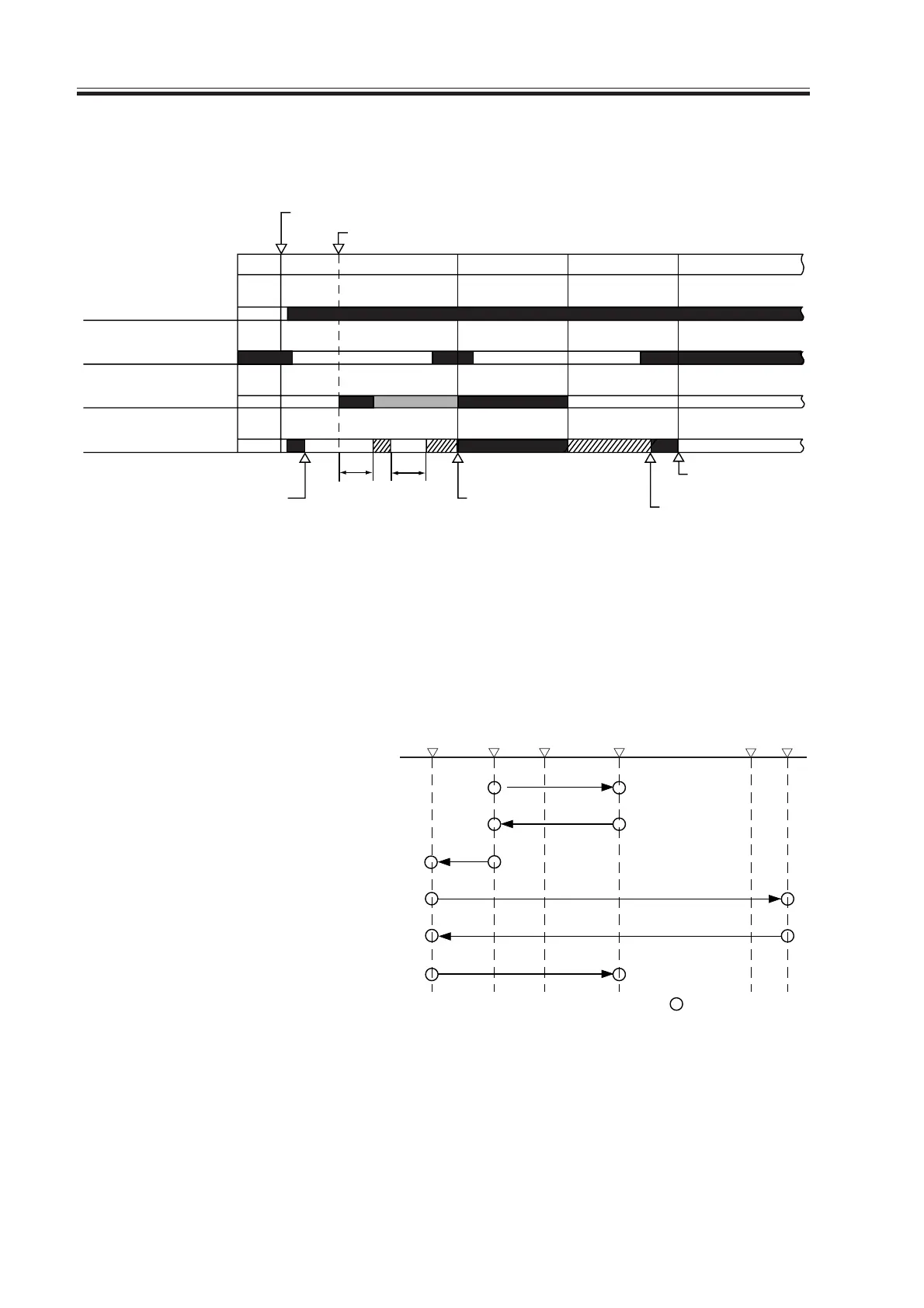

CHAPTER 2 ORIGINAL EXPOSURE SYSTEM
2-4 R
Reverse
Forward
*2
STBYSTBY
SREADY
SCFW
SCRV
Start key ON
Copyboard cover open
Start position
Start position
Point of original size detection
*1
Point of original
size detection
Scanner HP sensor
(PS39)
Copyboard cover
sensor (PS40)
Scanning lamp (LA2)
Scanner motor (M3)
1. The copyboard cover is opened.
The scanner moves to the point of original detection.
2. The Start key is pressed.
After the original size has been detected,
the scanner moves to home position.
3. After shading correction in home position,
the scanner moves to start position.
4. The scanner scans the original.
5. The scanner returns to start position
(at the speed used for 50% reduction).
6. The scanner moves to the point of original size detection.
HP
Image leading
edge
end
Stop
position
Stream reading position
(start position)
Point of original
size detection
: No. 1 mirror base
1.2.2 Book Mode, 1 Original, Copyboard Cover Open
*1: original size detection.*2: shading correction.
F02-102-03
F02-102-04
Download Free Service Manual at http://printer1.blogspot.com

Canon iR6000 Specifications

General

Print Technology	Laser
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Functions	Print, Copy, Scan
Print Speed	60 ppm
Duplex Printing	Yes
Network Connectivity	Ethernet
Paper Sizes	A3, A4, B4, B5
Warm-Up Time	30 seconds
Multiple Copies	Up to 999
Magnification	25-400%
Copy Speed	60 ppm (A4)
