Canon iR6000 Service Manual

COPYRIGHT © 2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 4 IMAGE FORMATION SYSTEM
4-3 P

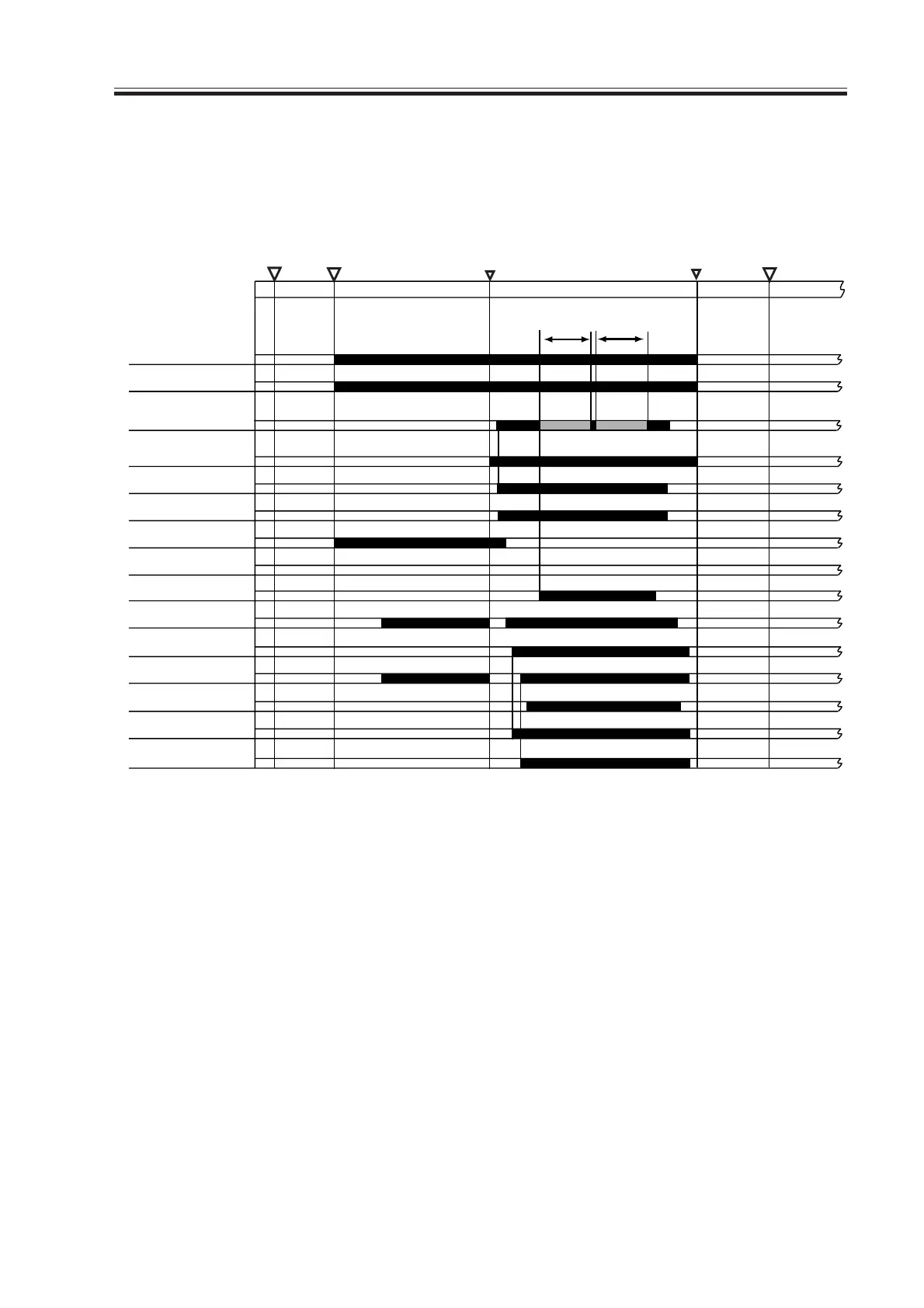

1.2 Basic Sequence of Operations (image formation system)
• at power-on, 1 original, 2 prints
F04-102-01
Note the following about the sequence:
[1] potential control for copying
[2] potential control for printing
Main power
switch ON
Control panel
power switch ON
Start key ON
INTR
WMUPR
WMUP
SLEEP STBY
Fixing assembly
temperature 195˚C
200˚C
Drum motor (M1)
Pre-exposure LED
Primary charging
Pre-transfer charging
bias (AC)
Grid bias
Developing clutch
(CL4)
Developing bias
(AC)
Developing bias
(DC)
Dust-collecting roller
bias (DC)
Separation charging
bias (DC)
Laser activation
Main motor (M2)
[1] [2]
Pre-transfer charging
bias (DC)
Transfer charging
Separation charging
bias (AC)
