2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000

CHAPTER 3 STANDARDS AND ADJUSTMENTS

3-13 T

4.6 Adjusting the Pressure of the Separation Roller of the

Deck/Cassette

If double feeding or pickup failure occurs during pickup, change the position of the pres-

sure spring of the separation roller:

• If double feeding occurs, move the hook of the spring in the direction of B.

• If pickup failure occurs, move the hook of the spring in the direction of A.

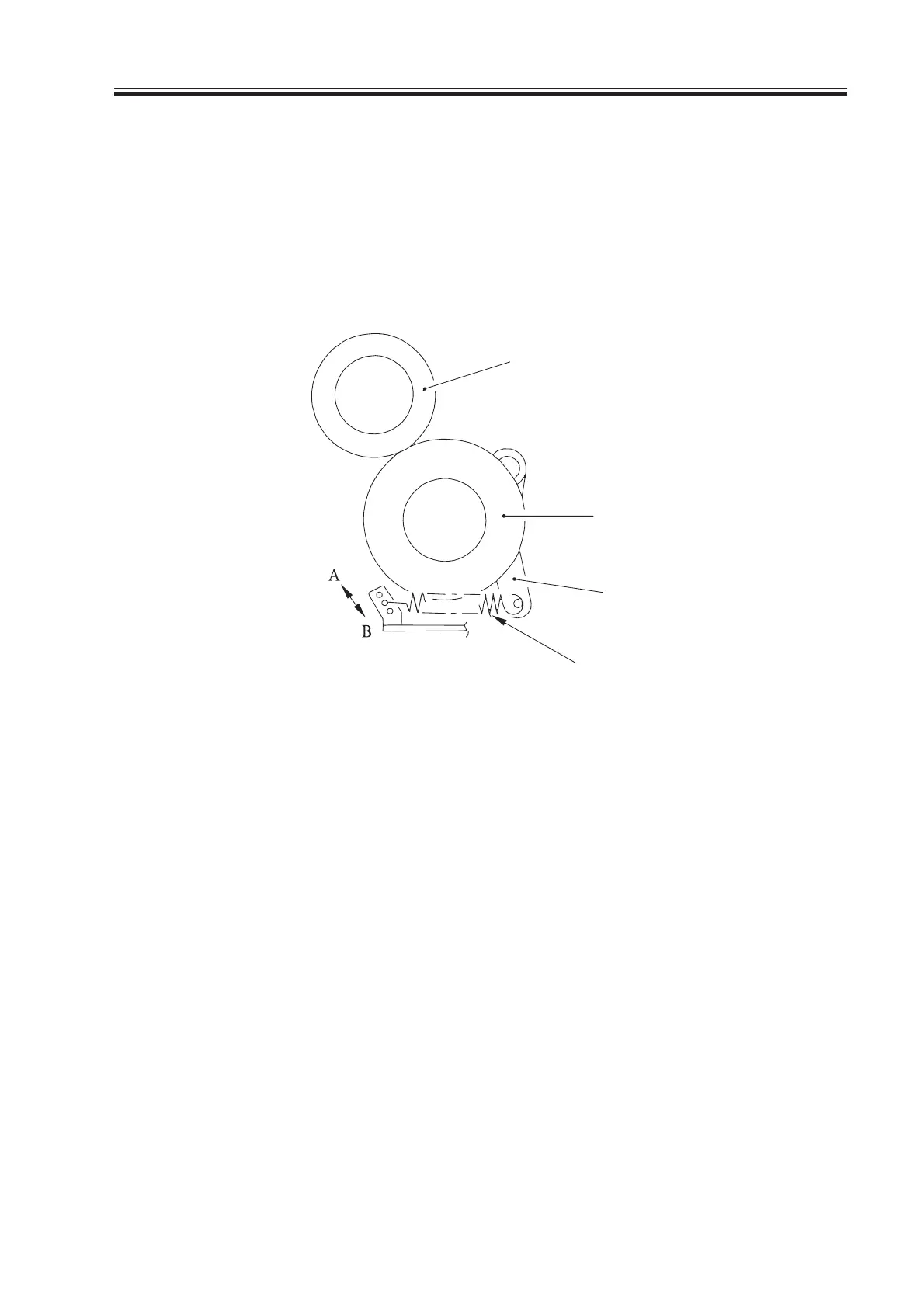

[1] Feeding roller [2] Separation roller

[3] Pressure lever [4] Pressure spring

F03-406-01

[1]

[2]

[3]

[4]
