Canon iR6000 Service Manual

COPYRIGHT © 2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 9 SHIFT TRAY
9-7 P
5. Maintenance and Inspection
5.1 Adjusting the Limit Sensor Position
Be sure to perform the following work if you have disassembled or replaced the limit sen-
sor (front, rear).
5.1.1 Related Service Mode
COPIER>FUNCTION>SNES-ADJ>STCK-LIMIT
Use it to adjust the position of the limit sensor (PS104, PS105) of the shift tray.
• ‘ON’ is indicated if either of the limit sensors (or both sensors) detects paper.
• ‘OFF’ is indicated if neither of the limit sensors detects paper.
5.1.2 Making Adjustments
1) Turn off the host machine’s main power switch.
2) Remove the delivery unit from the main machine. (Keep the tray connected to the host
machine.)
3) Temporarily fix the limit sensor (font, rear) at the point farthest from the paper.
4) Place a stack of 60 mm in height on the shift tray (where either of the limit sensors can
detect it).
5) Turn off the host machine’s main power switch; then, select ‘STCK-LIMIT’, and press
the OK key.
6) While referring to the indication, move the sensor toward the paper until ‘ON’ is indi-
cated; and secure the sensor in place.
7) Move the paper where it is detected by the paper.
8) Repeat steps 4) through 6) for the sensor.
9) After making the adjustments, turn off the host machine’s main power switch.
10) Mount the delivery unit.

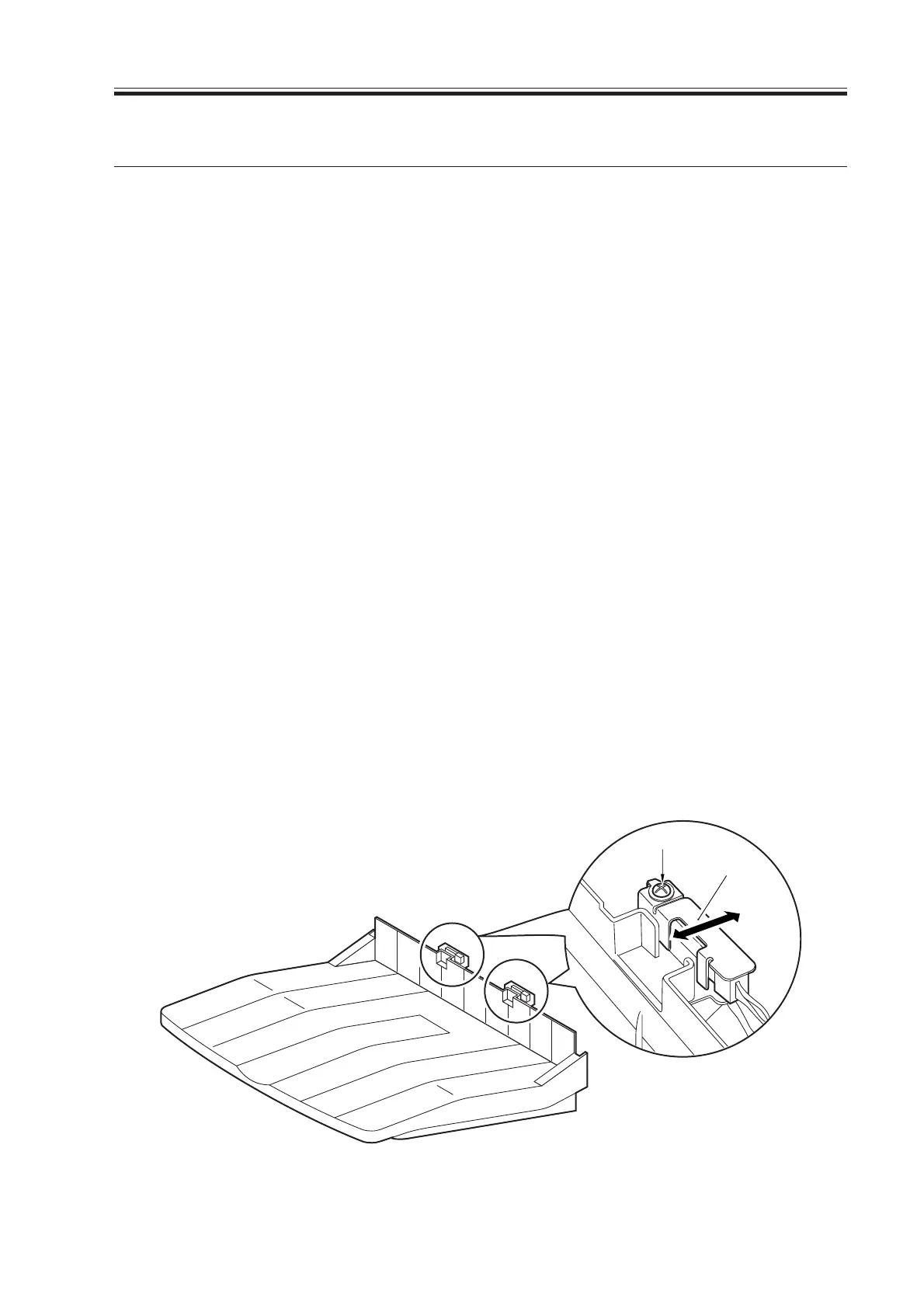

F09-501-01
Screw
Limit sensor
Download Free Service Manual at http://printer1.blogspot.com

Canon iR6000 Specifications

General

Print Technology	Laser
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Functions	Print, Copy, Scan
Print Speed	60 ppm
Duplex Printing	Yes
Network Connectivity	Ethernet
Paper Sizes	A3, A4, B4, B5
Warm-Up Time	30 seconds
Multiple Copies	Up to 999
Magnification	25-400%
Copy Speed	60 ppm (A4)
