CHAPTER 5 PICK UP/FEEDING SYSTEM
5-63 P
6) Fully tighten the two screws of the lifter
motor M20 (M21).
7) Mount back the removed parts, and turn
on the machine.
8) Press the cassette release button under
the following conditions, and turn on
the machine:
• the cassette contains no paper.
• the cassette contains about 550 sheets of
paper.
9.2.15 Adjusting the Position of the Cassette 3/4 Pickup Solenoid (SL3, 4)

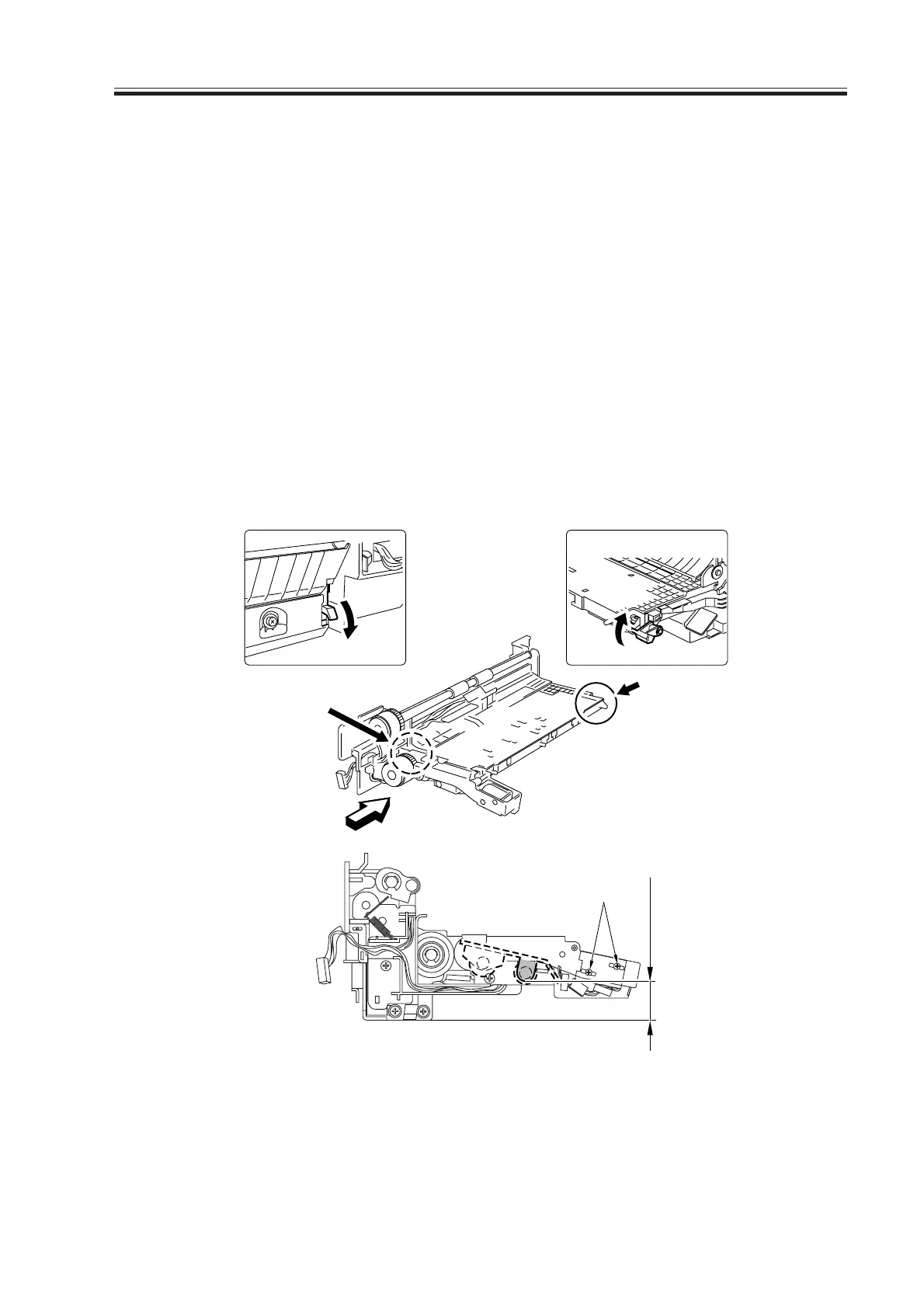

Adjust the position of the solenoid using the two screws [3] so that the distance from the
bottom of the pickup assembly to section A of the roller arm is 36±0.5 mm when [1] and [2]
are operated as shown.
F05-902-25
[1]
[2]
[1]
[3]
[2]
A
Viewed from A
36±0.5mm
