2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000

CHAPTER 8 PAPER DECK

8-24 P

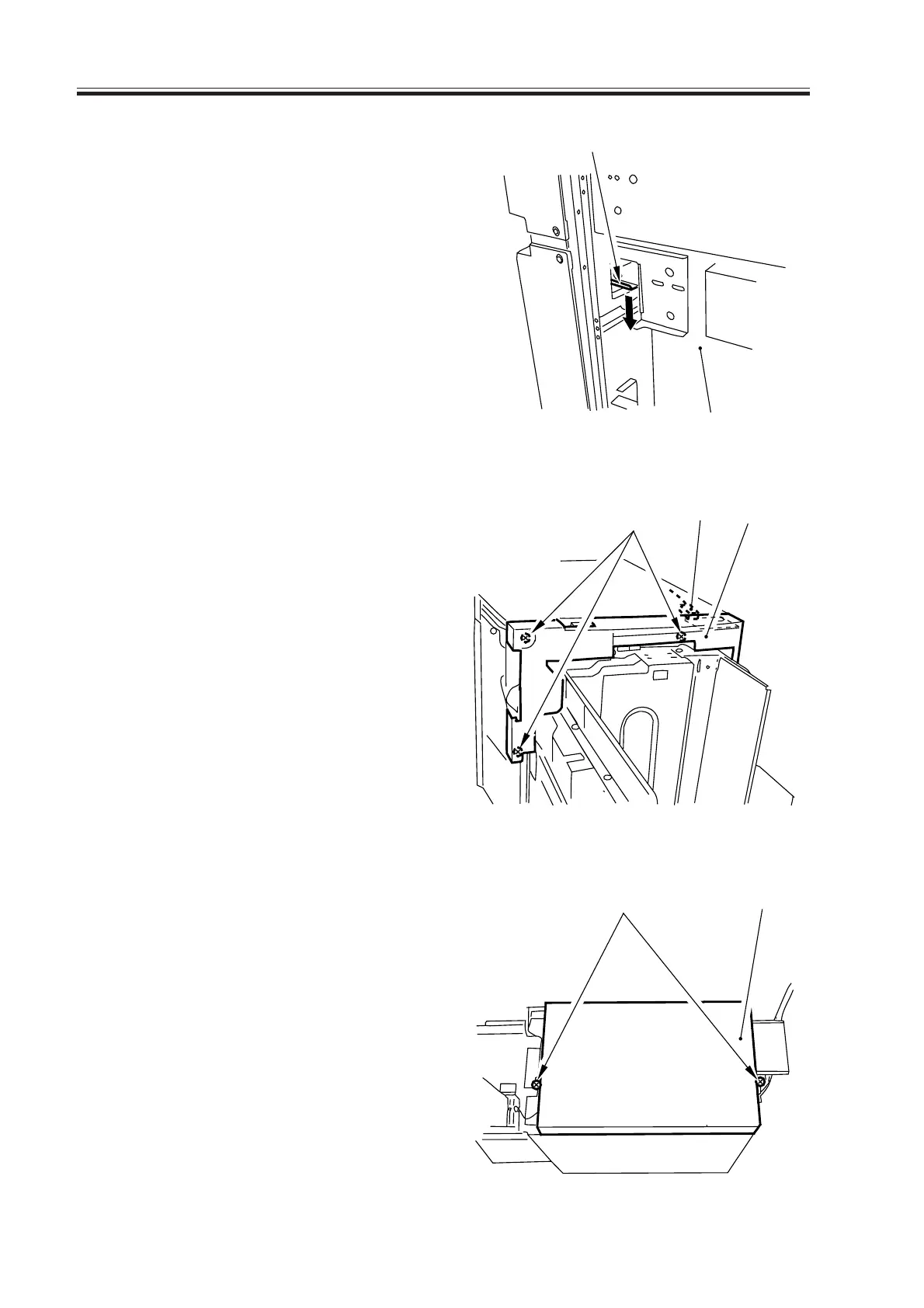

3.1.4 Removing the Upper Cover

1) Remove the rear cover. (See p. 8-23P.)

2) Push down the latch plate [2] of the

compartment [1] with your finger to

open the compartment [1].

F08-301-09

3) Remove the three screws [3], and dis-

connect the connector [4]; then, remove

the front upper cover [5].

F08-301-10

4) Close the deck vertical path assembly,

and remove the two screws [6]; then,

detach the upper cover [7].

F08-301-11

(rear)

[1]

[2]

[3]

[4]

[5]

[7]

[6]

Download Free Service Manual at http://printer1.blogspot.com
