2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000

CHAPTER 5 PICK UP/FEEDING SYSTEM

5-51 P

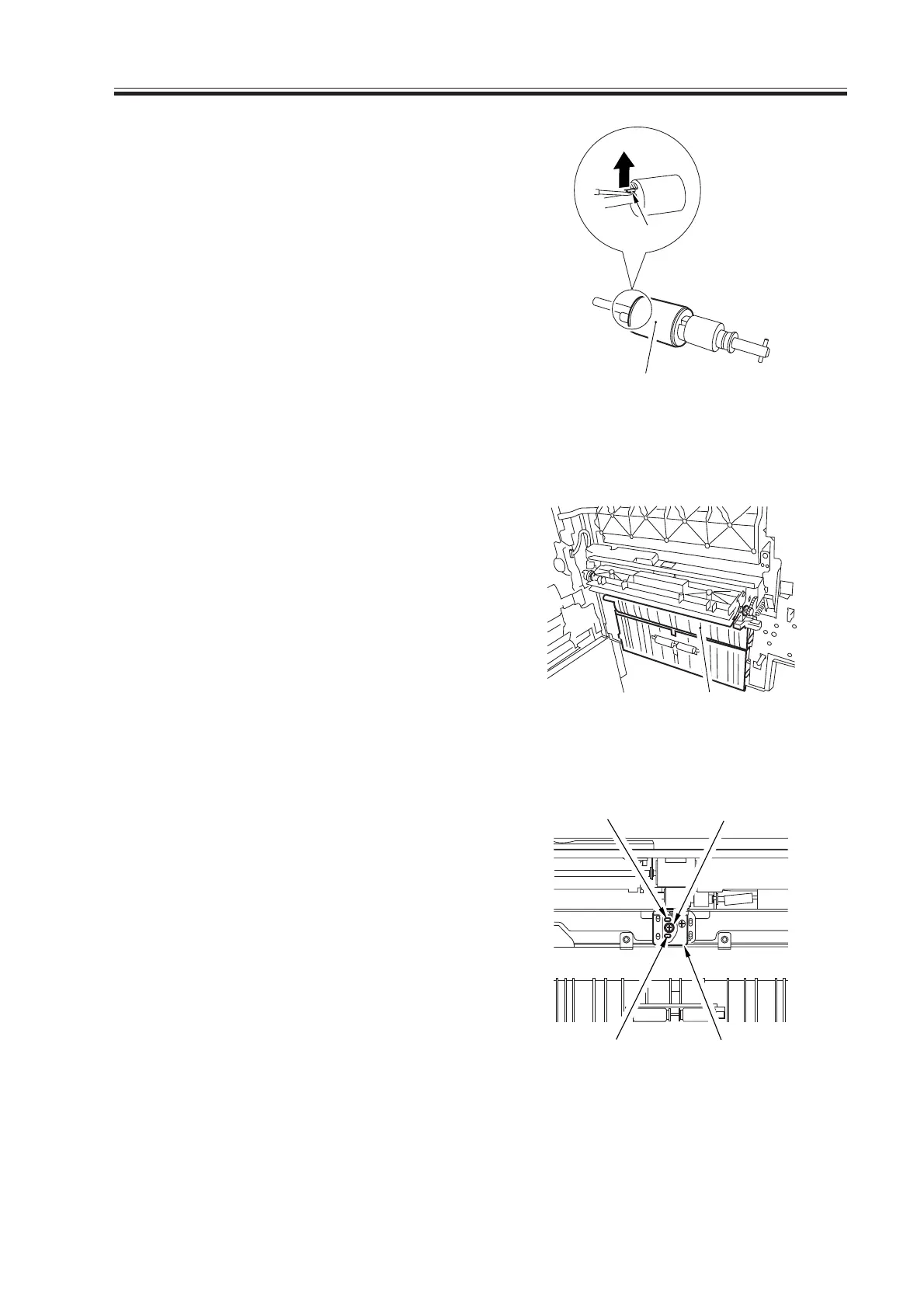

3) Disengage the hook [4] of the separa-

tion roller assembly, and detach the

separation roller [5].

F05-901-07

9.1.6 Adjusting the Pressure of the Separation Roller

1) Remove the right upper cover.

2) Remove the upper guide [1].

3) If double feeding or pickup failure oc-

curs during pickup, adjust the position

of the pressure spring of the separation

roller.

F05-901-08

• If double feeding occurs, remove the

mounting screw [2], and shift down the

mounting base [3]; then, fix it in hole A

using a mounting screw [2].

• If pickup failure occurs, remove the

mounting screw [2], and shift the

mounting base [3] up; then, fix it in

hole B using a mounting screw [2].

F05-901-09

[1]

[5]

[4]

[2]

[3]

Hole A

Hole B
