Canon iR6000 Service Manual

COPYRIGHT © 2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 6 FIXING SYSTEM
6-32 P

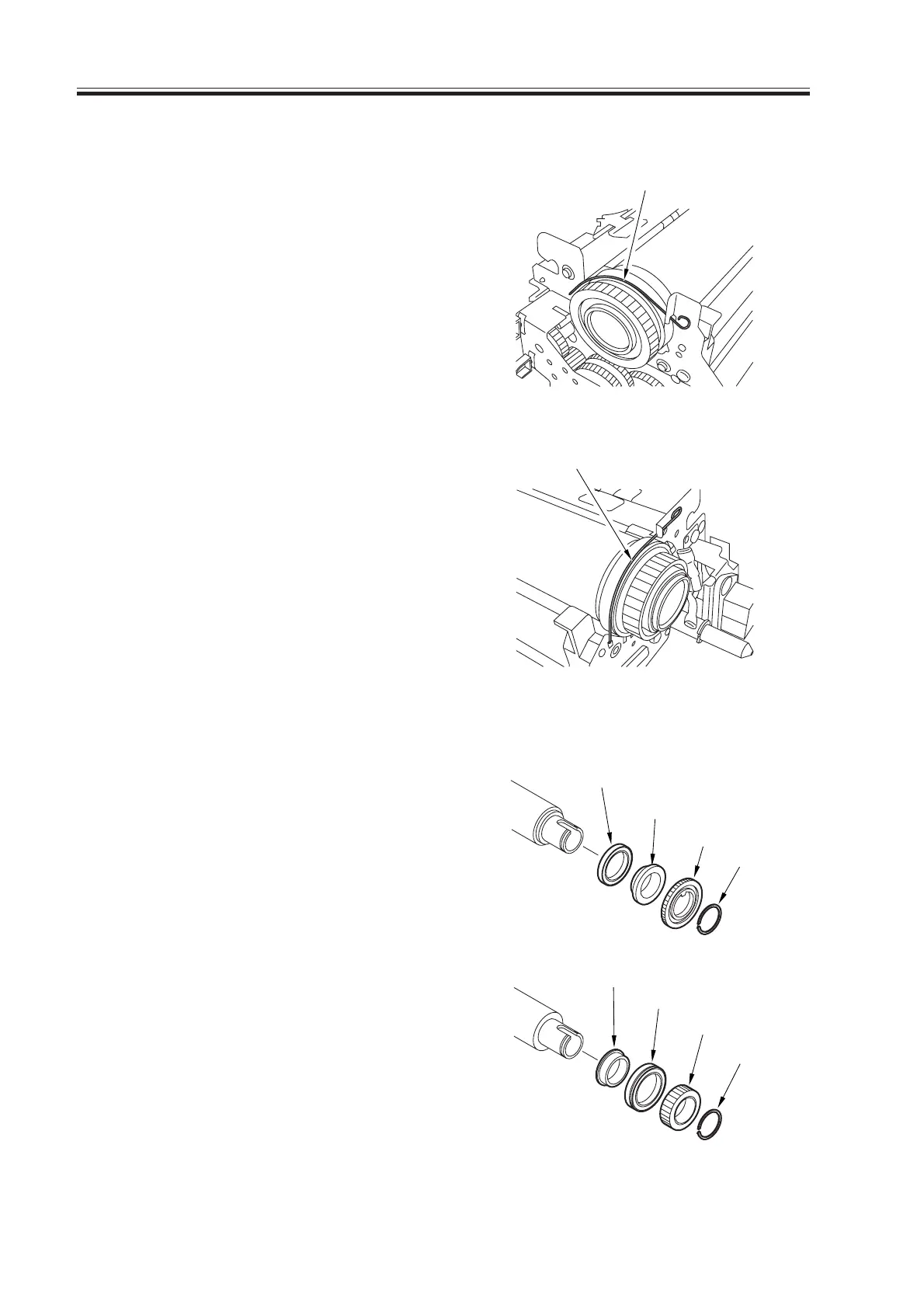

4.4 Fixing Roller Assembly
4.4.1 Removing the Fixing Upper Roller
1) Remove the fixing assembly form the
machine.
2) Remove the fixing web, and clean the
oil pan.
3) Remove the two fixing heaters.
4) Remove the stopper [1], one each from
the front and the rear.
5) While paying attention to the thermal
switch and the thermistor, detach the
upper roller assembly.
F06-404-01
6) Remove the C-ring [2] at the front, and
remove the gear [3], bushing [4], and
bearing [5].
7) Remove the C-ring [6] at the rear, and
remove the gear [7], bearing [8], and
bushing [9].
F06-404-02
(front)
(rear)
[1]
[1]
[9]
[8]
[7]
[6]
[2]
[3]
[4]
[5]
(front)
(rear)
Download Free Service Manual at http://printer1.blogspot.com

Canon iR6000 Specifications

General

Print Technology	Laser
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Functions	Print, Copy, Scan
Print Speed	60 ppm
Duplex Printing	Yes
Network Connectivity	Ethernet
Paper Sizes	A3, A4, B4, B5
Warm-Up Time	30 seconds
Multiple Copies	Up to 999
Magnification	25-400%
Copy Speed	60 ppm (A4)
