CHAPTER 8 PAPER DECK
8-7 P
1.3 Detecting Paper in the Deck
1.3.1 Detecting the Presence/Absence of Power

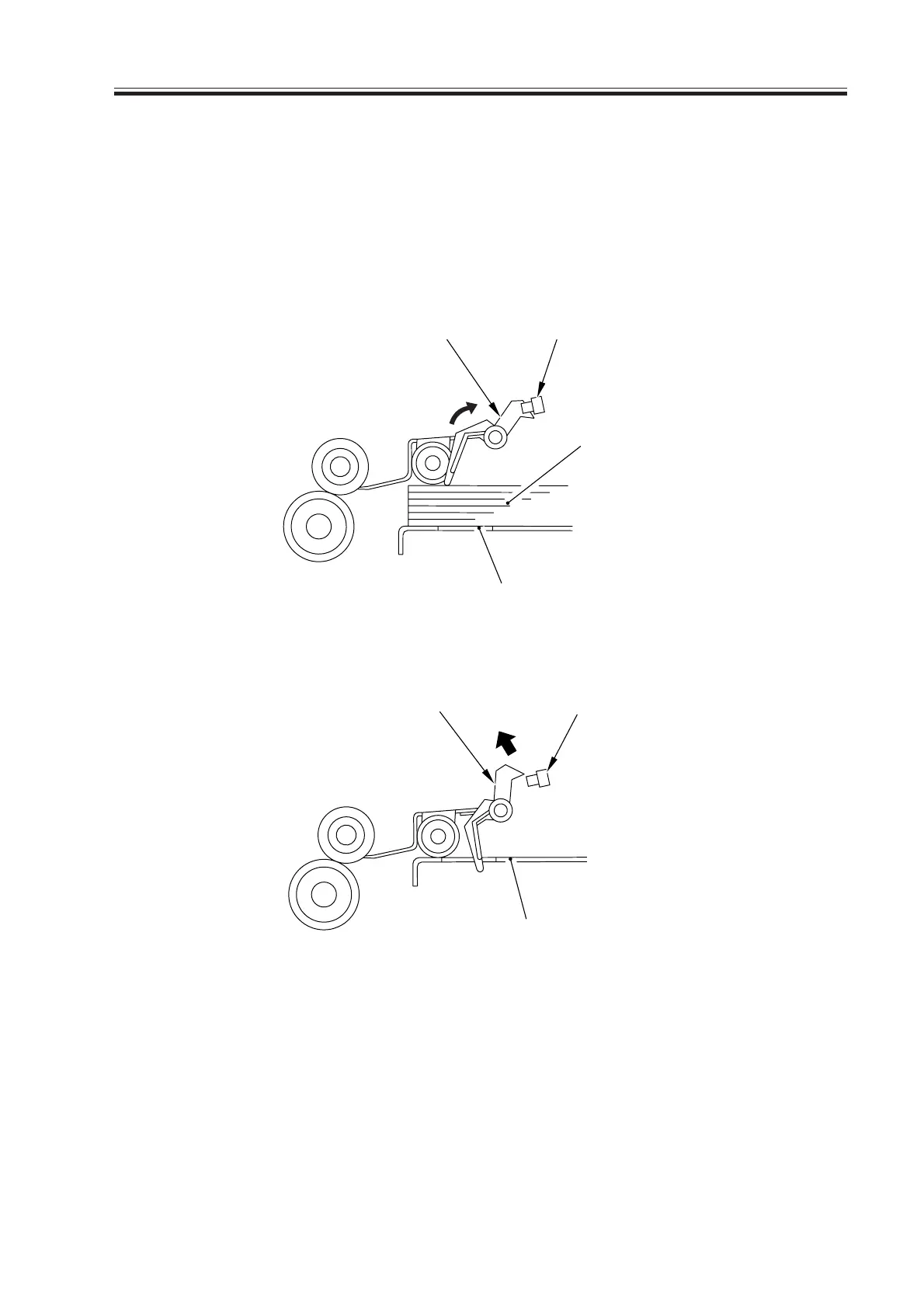

The presence/absence of paper inside the deck is detected by the deck paper sensor
(PS102). When paper runs out and, as a result, the paper detecting lever of the pickup roller
assembly moves past the deck paper sensor, the Add Paper message will be indicates in the
control panel of the host machine.
F08-103-01
F08-103-02
1.3.2 Switching the Deck Paper Size
The paper size of the deck may be switched by relocating the guide plate inside the deck
to suit the needs of the user; the new paper size must then be entered in service mode
(COPIER>OPTION>ACC>DK-P).
Deck paper sensorPaper detecting lever
Copy paper
Lifter
Lifter
Deck paper sensor
Paper detecting lever
