CHAPTER 4 IMAGE FORMATION SYSTEM

4-62 P

7.6 Pre-Transfer Charging Assembly

7.6.1 Removing the Pre-Transfer Charging Assembly

1) Open the front cover, and slide out the

hopper assembly.

2) Remove the mounting screw [1], and

disconnect the connector [2]; then, de-

tach the pre-transfer assembly [3].

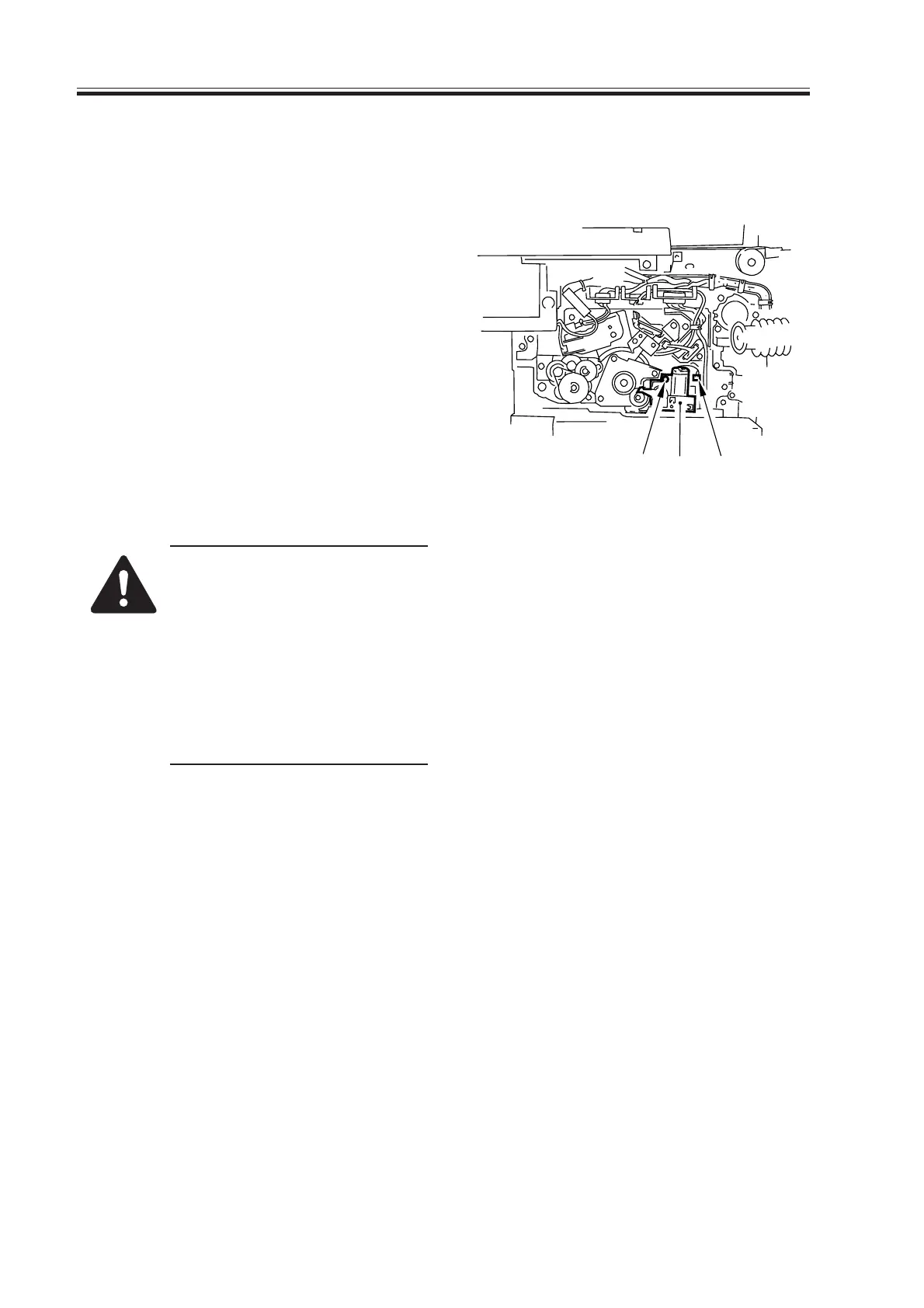

F04-706-01

When you have mounted the

pre-transfer charging assembly,

be sure to execute ‘wire clean-

ing’ in user mode. (If the sur-

face temperature of the fixing

upper roller is 100°C or lower,

you need not execute this, as the

wire will be cleaned automati-

cally.

[1]

[3]

[2]
