CHAPTER 3 STANDARDS AND ADJUSTMENTS

3-14 T

4.7 Adjusting the Pressure of the Separation Roller of the

Manual Feed Tray

If double feeding or pickup failure occurs during pickup, adjust the position of the pres-

sure spring of the separation roller.

1) Remove the right upper cover.

2) Remove the upper guide [1].

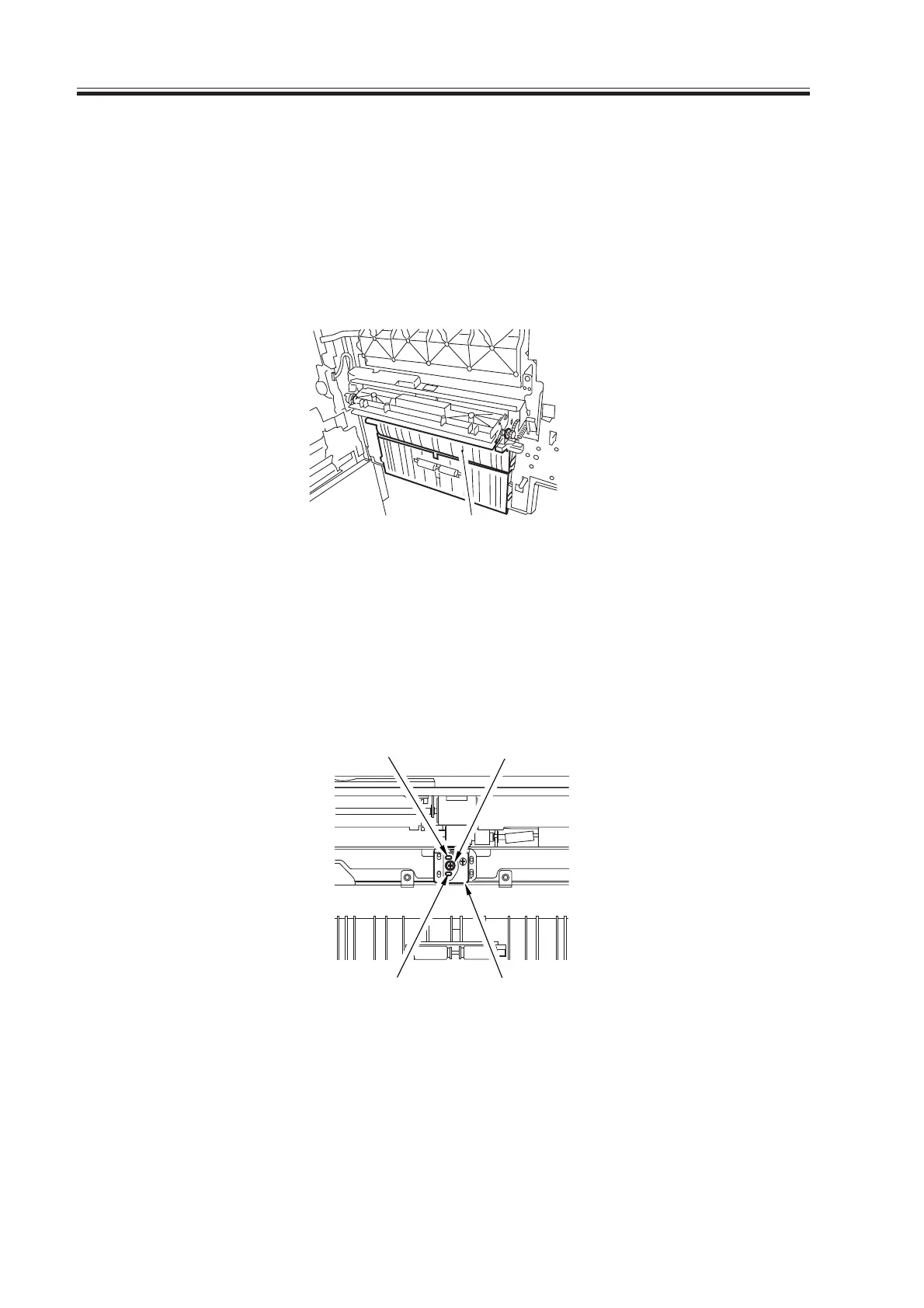

F03-407-01

• If double feeding occurs, remove the mounting screw [2], and lower the mounting base

[3]; then, tighten the mounting screw [2] in hole A.

• If pickup failure occurs, remove the mounting screw [2], and raise the mounting base

[3]; then, tighten the mounting screw [3] in hole B.

F03-407-02

[1]

[2]

[3]

hole A

hole B
