2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000

CHAPTER 5 PICK UP/FEEDING SYSTEM

5-66 P

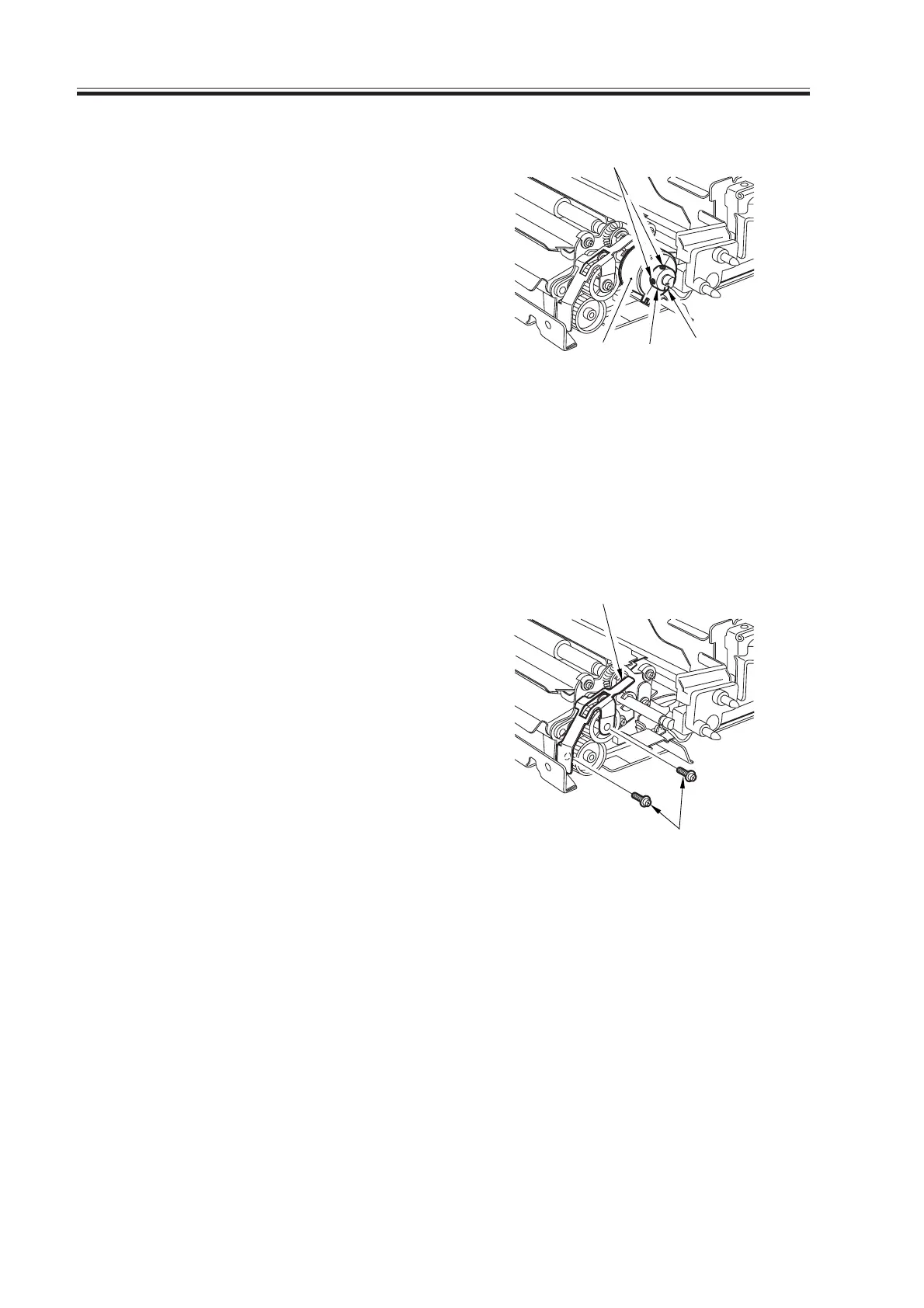

9.4 Registration Feeding Assembly

9.4.1 Removing the Registration Clutch

1) Remove the fixing/feeding unit from the

machine.

2) Loosen the two sems screws [1], and

detach the stopper [2].

3) Disconnect the connector [3], and re-

move the registration clutch [4].

F05-904-01

9.4.2 Removing the Registration Roller

1) Remove the fixing/feeding unit from the

machine.

2) Remove the feeding right cover of the

fixing/feeding unit.

3) Remove the transfer separation charging

assembly.

4) Remove the registration clutch.

5) Remove the two mounting screws [1],

and detach the protection cover [2].

F05-904-02

[1]

[2]

[3]

[4]

[1]

[2]
