2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000

CHAPTER 7 EXTERNALS AND CONTROLS

7-28 P

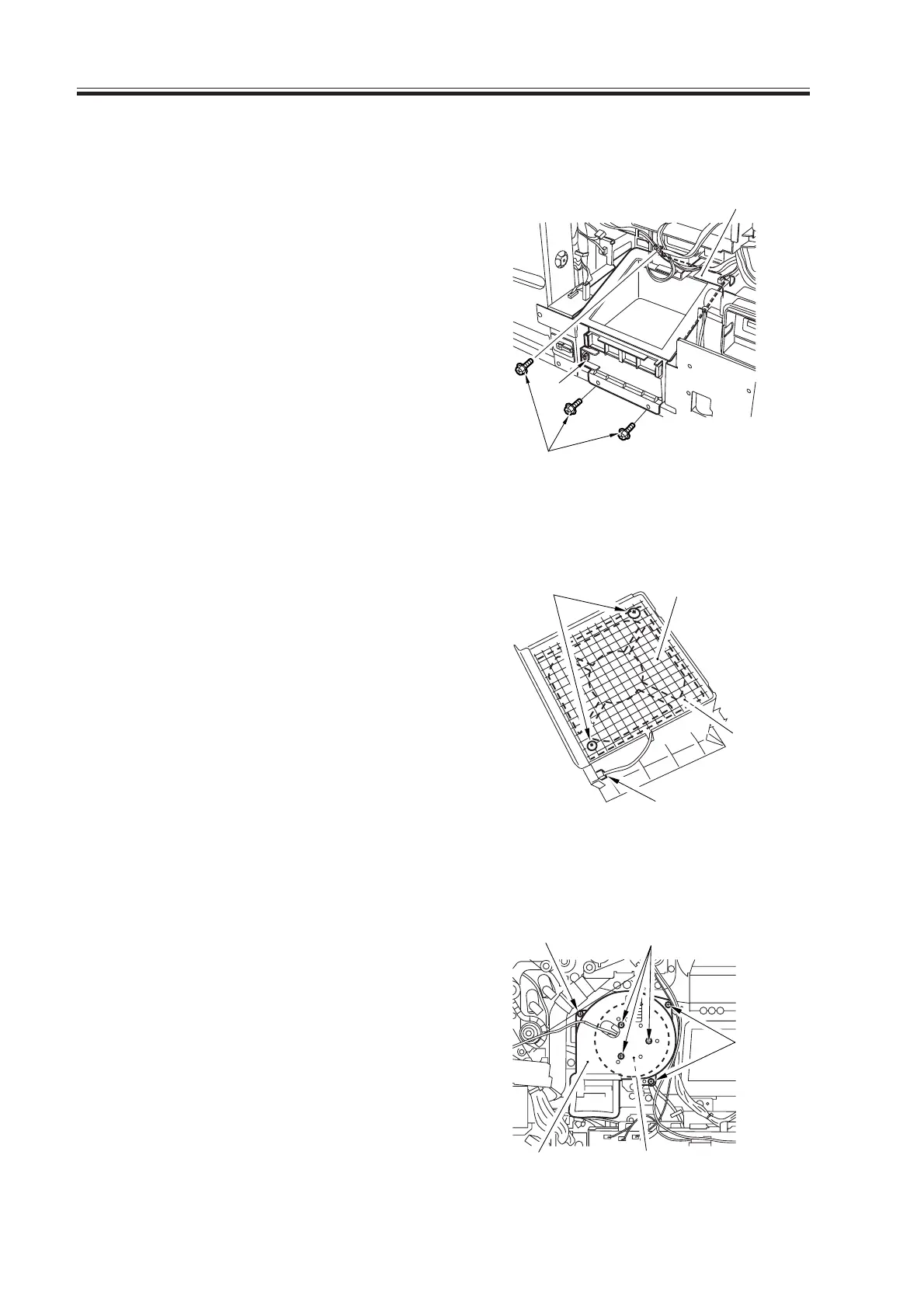

5.5 Fans

5.5.1 Exhaust Fan

1) Remove the rear lower cover.

2) Remove the three screws [1], and dis-

connect the connector [2]; then, detach

the exhaust fan duct [3].

F07-505-01

3) Remove the two screws [4], and discon-

nect the connector [5]; then, detach the

fan grille [6] to detach the exhaust fan

[7].

F07-505-02

5.5.2 Feeding Fan

1) Remove the DC controller PCB.

2) Remove the three screws [1], and detach

the primary fan cover [2].

3) Remove the three screws [3], and detach

the primary fan [4].

F07-505-03

[1]

[2]

[3]

[4]

[5]

[6]

[7]

[1] [3]

[1]

[2] [4]
