2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000

CHAPTER 6 FIXING SYSTEM

6-27 P

[2]

[3]

[1]

[6]

[5]

[4]

[7]

[8]

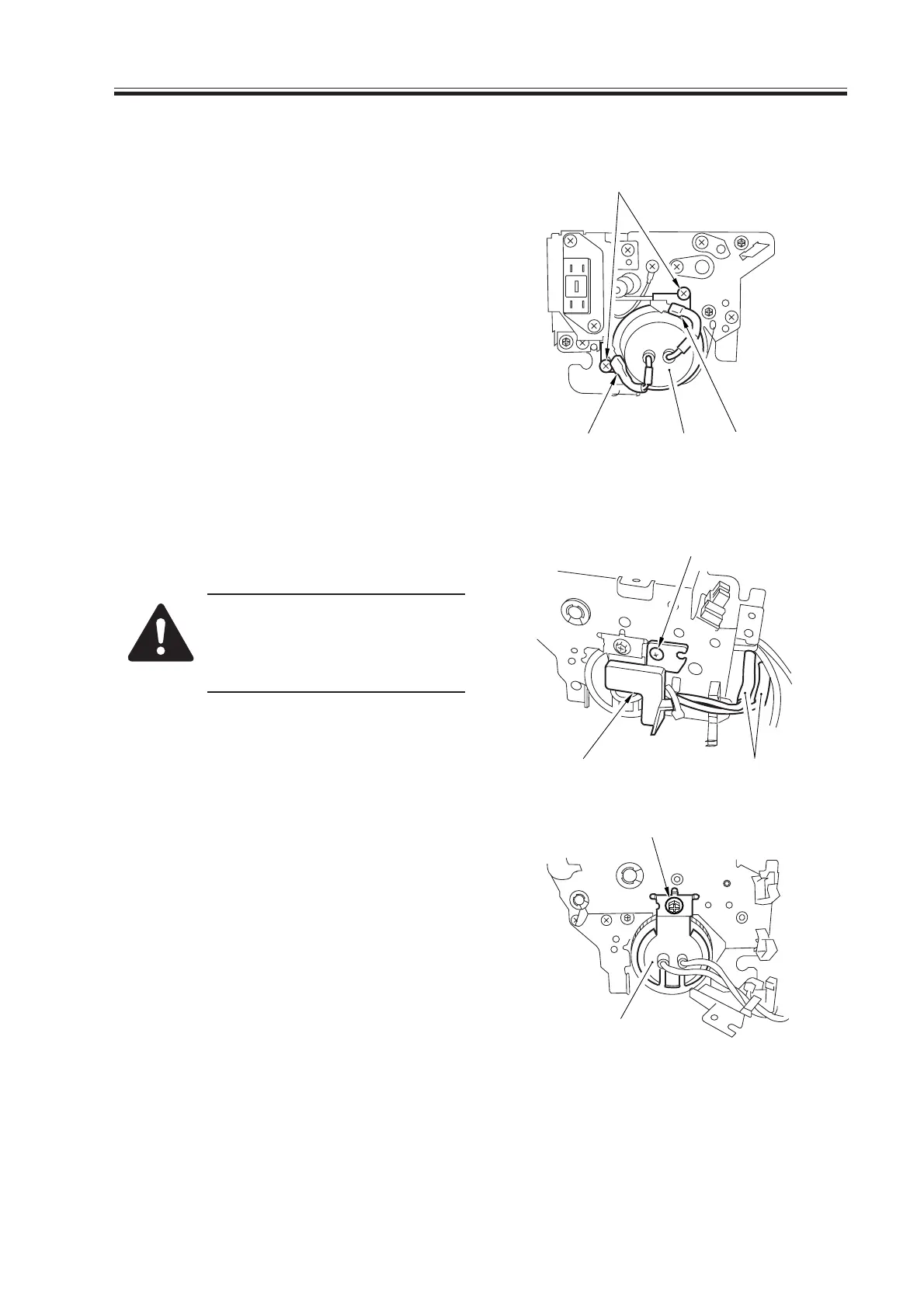

4.3 Fixing Heater and the Control Parts

4.3.1 Removing the Main/Sub Heater

1) Remove the fixing assembly from the

machine.

2) Remove the two fastons [1] and the two

screws [2] at the rear; then, detach the

heater positioning plate (rear) [3].

F06-403-01

3) Remove the screw [4] and the faston [5]

at the front, and detach the harness

cover [6].

The harness is equipped with a

tie-wrap. Be sure to use a new

tie-wrap if you have cut the tie-

wrap.

F06-403-02

4) Remove the screw [7], and detach the

heater positioning plate (front) [8].

5) Remove the main heater and the sub

heater.

F06-403-03
