Canon iR6000 Service Manual

COPYRIGHT © 2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 4 IMAGE FORMATION SYSTEM
4-83 P
7.11.5 Cleaning the Cleaner Side Scraper
Perform the following when replacing the cleaning blade (every 500,000 sheets).
1) Remove the cleaning blade.
2) Remove any paper lint collecting at the tip of the side scarper (A, i.e., between magnet
roller and toner guide roller) using tweezers or the like.
3) Remove the toner from the surface of the magnet roller. (Roll copy paper into a U to
scoop it up.)

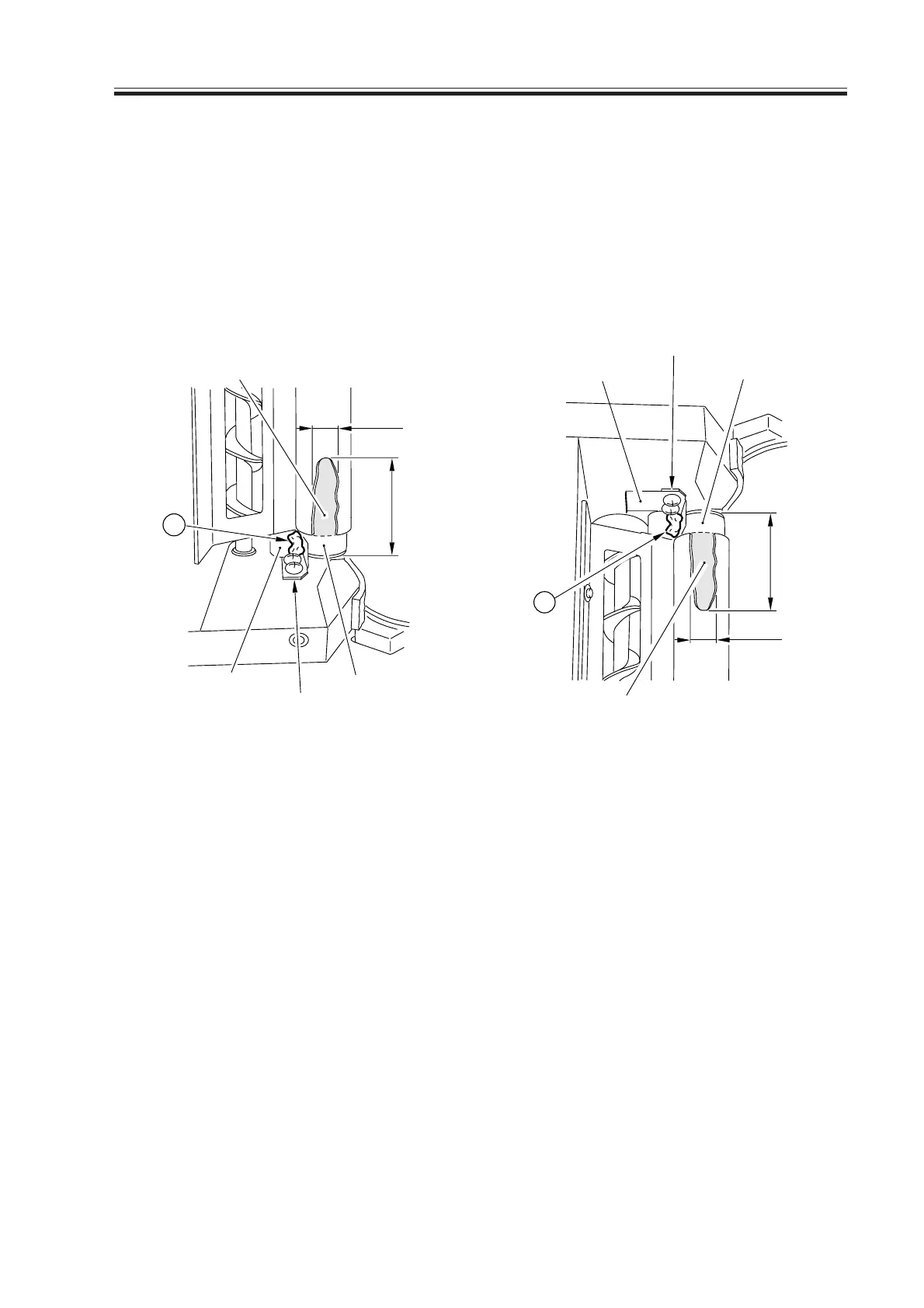

F04-711-09 F04-711-10
4) Turn the magnet roller clockwise (viewing from the front).
5) Repeat steps 3) through 5) until the area from which toner was removed in step 3) is
once again coated with an even layer of toner.
4 to 8mm
A
Toner guide roller
Side scraper (front)
Remove waste toner
(front)
30 to 40mm
A
Toner guide roller
4 to 8mm
Side scraper (rear)
Magnet roller
Remove waste toner
(rear)
30 to 40mm
Download Free Service Manual at http://printer1.blogspot.com

Canon iR6000 Specifications

General

Print Technology	Laser
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Functions	Print, Copy, Scan
Print Speed	60 ppm
Duplex Printing	Yes
Network Connectivity	Ethernet
Paper Sizes	A3, A4, B4, B5
Warm-Up Time	30 seconds
Multiple Copies	Up to 999
Magnification	25-400%
Copy Speed	60 ppm (A4)
