2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000

CHAPTER 5 PICK UP/FEEDING SYSTEM

5-78 P

9.6.15 Removing the Horizontal Registration Unit

1) Remove the duplex unit from the ma-

chine.

2) Remove the front cover of the duplex

unit.

3) Turn over the duplex unit.

4) Remove the mounting screw [1] from

the front.

5) Remove the mounting screw [2] and

disconnect the connector [3] from the

rear; then, detach the horizontal regis-

tration unit [4].

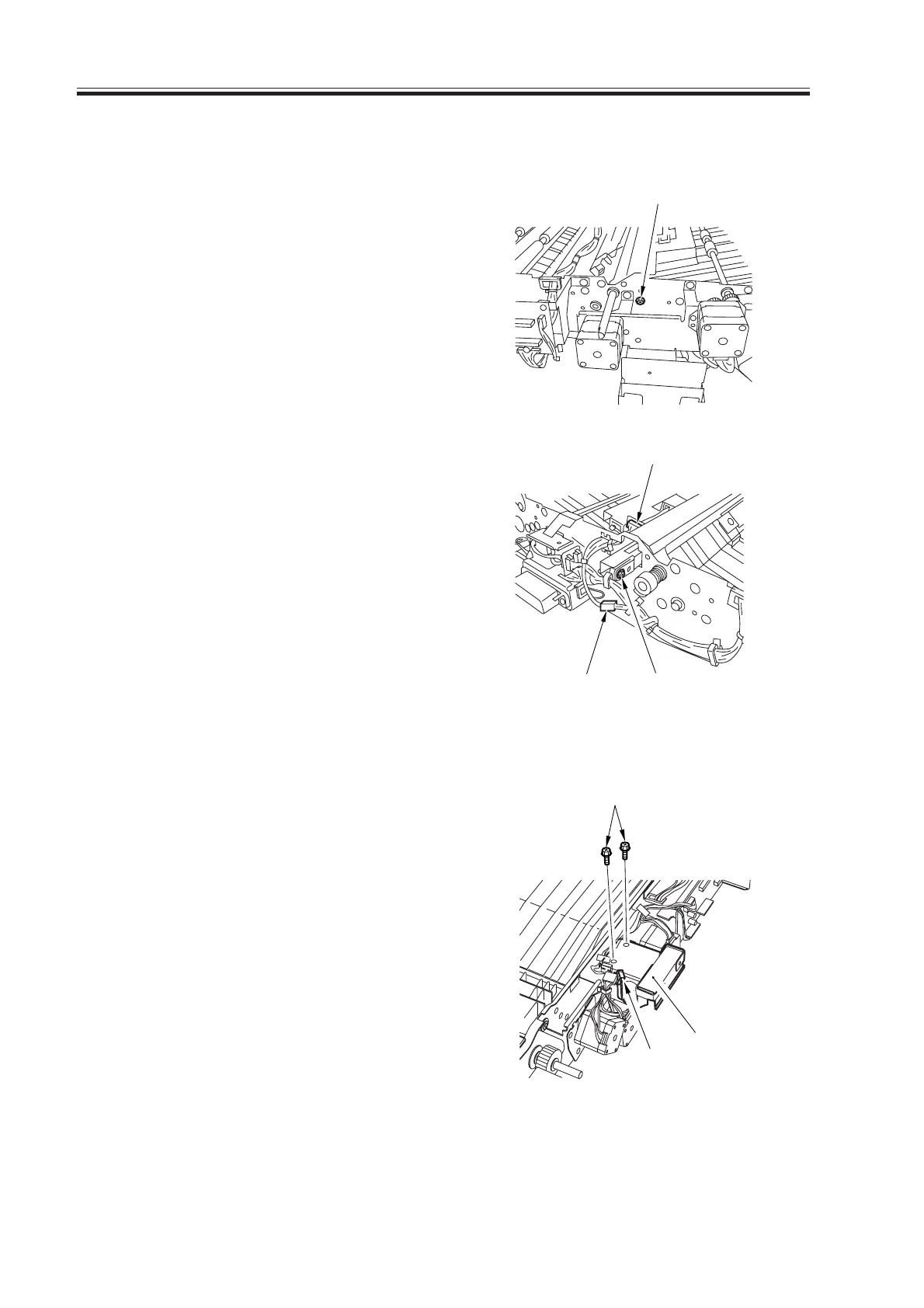

F05-906-25

9.6.16 Removing the Duplex Feeding Fan

1) Slide out the duplex unit, and detach the

front cover of the duplex unit.

2) Remove the two mounting screws [1],

and disconnect the connector [2]; then,

detach the fan together with its base [3].

F05-906-26

(front)

[1]

[4]

(rear)

[2][3]

[3]

[1]

[2]
