COPYRIGHT
©
2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 6 FIXING SYSTEM
6-8 P
F06-204-01
The system uses the following signals:
[1] Fixing assembly inlet guide drive signal; when ‘0’, the fixing assembly inlet guide
moves up.
[2] Fixing inlet guide drive signal; when ‘0’, the fixing assembly inlet guide moves down.

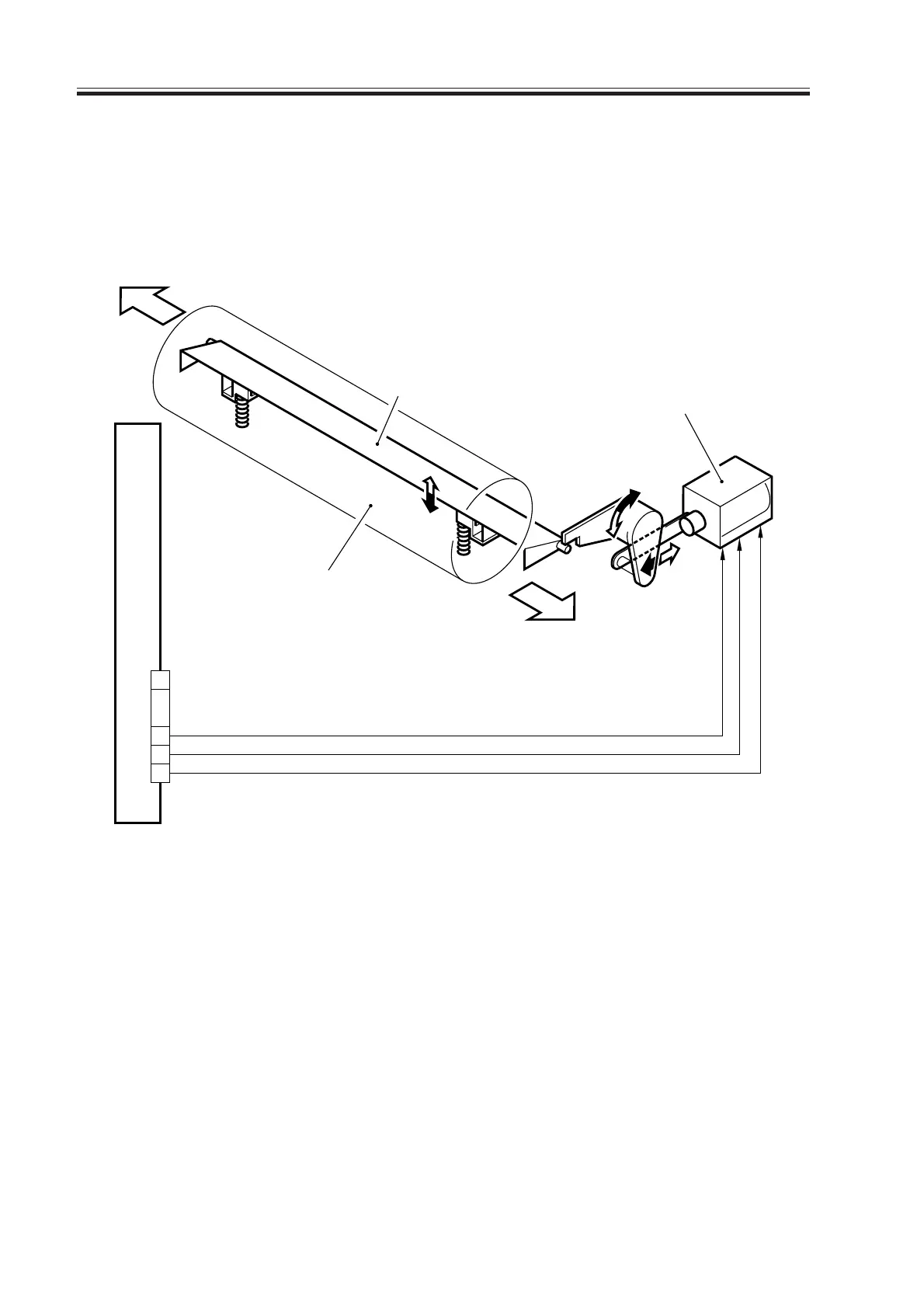

2.4 Controlling the Drive of the Fixing Assembly Inlet Guide
The machine changes the height of the fixing assembly inlet guide to suit specific paper
sizes, thereby ensuring correct movement of paper. The height is controlled by the fixing as-
sembly inlet solenoid operated by the following control system:
Fixing inlet guide
solenoid (SL1)
DC controller PCB
J106A
24V
SL1P* [1]
SL1R* [2]
(front)
Inlet guide
(rear)
Fixing upper roller
1
···
9
10
11
