Canon iR6000 Service Manual

COPYRIGHT © 2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 3 INSTALLATION
3-23 S
Checks/remarks

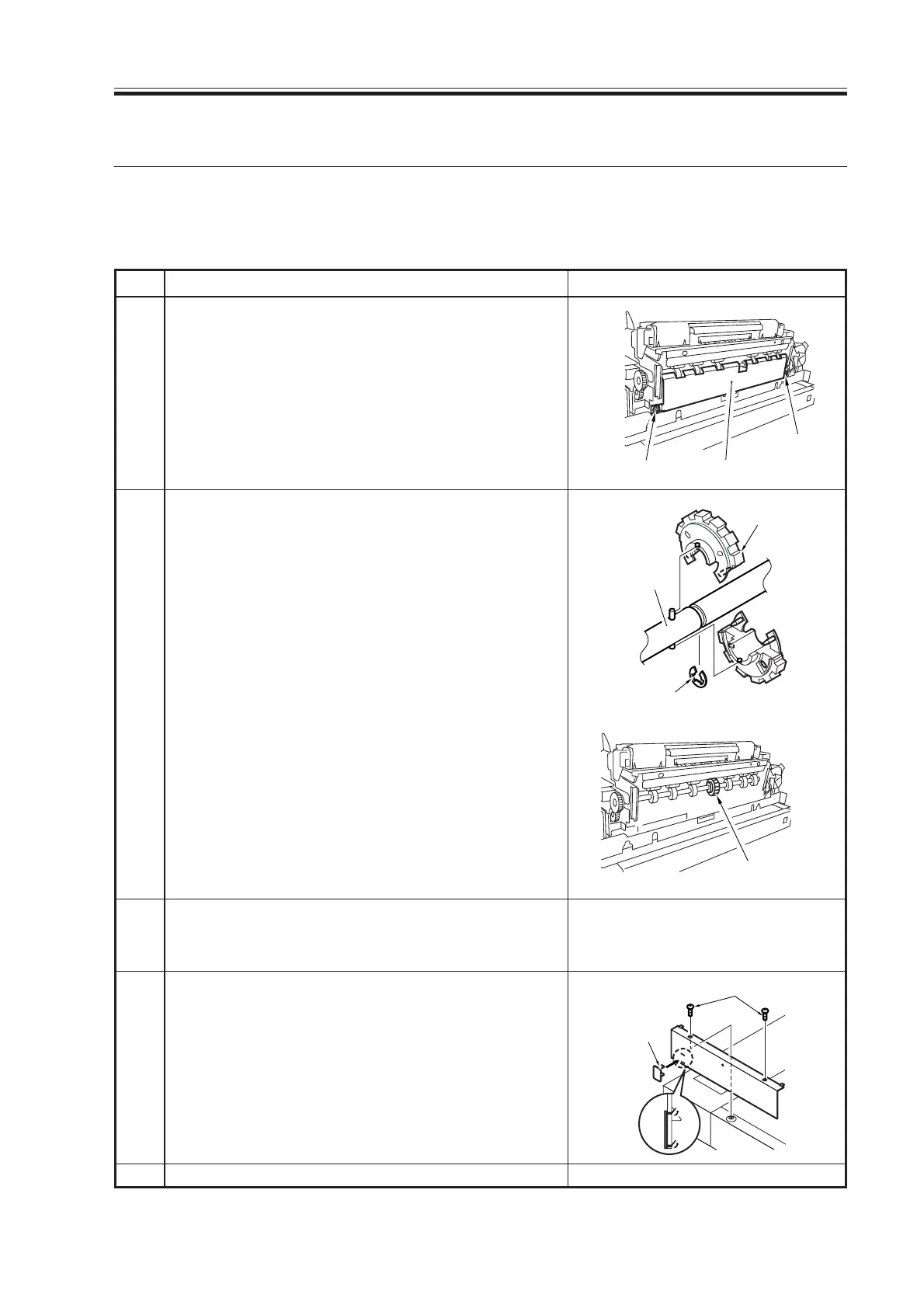

4. Mounting the Delivery Roll
The delivery roller must be equipped with a delivery roll in its middle before mounting
the delivery tray. The following steps, however, must not be performed if installation of
the shift tray or finisher is planned.
Screw
Delivery roller guide
Screw
Delivery
roller
shaft
Delivery roll
E-ring
Delivery roll
Screws
Magnet
catcher
Step
1
2
3
4
5
Work
Open the front cover, and slide out the fixing/
feeding assembly; then remove the two screws,
and detach the anti-wrap cover.
Mount the delivery roll aligning it against the pin
in the middle of the delivery roller; then secure it
in place with an E-ring.
Mount the anti-wrap cover with two screws, and
push the fixing/feeding assembly into the ma-
chine; then close the front cover.
Remove the two screws, and detach the reader
left cover; then mount the magnet catcher.
Mount the delivery tray.
Download Free Service Manual at http://printer1.blogspot.com

Canon iR6000 Specifications

General

Print Technology	Laser
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Functions	Print, Copy, Scan
Print Speed	60 ppm
Duplex Printing	Yes
Network Connectivity	Ethernet
Paper Sizes	A3, A4, B4, B5
Warm-Up Time	30 seconds
Multiple Copies	Up to 999
Magnification	25-400%
Copy Speed	60 ppm (A4)
