Canon iR6000 Service Manual

COPYRIGHT © 2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 5 PICK-UP/FEEDING SYSTEM
5-27 P
4.1.2 Sending Paper from the Reversing Assembly to the Duplexing/Feed-
ing Assembly

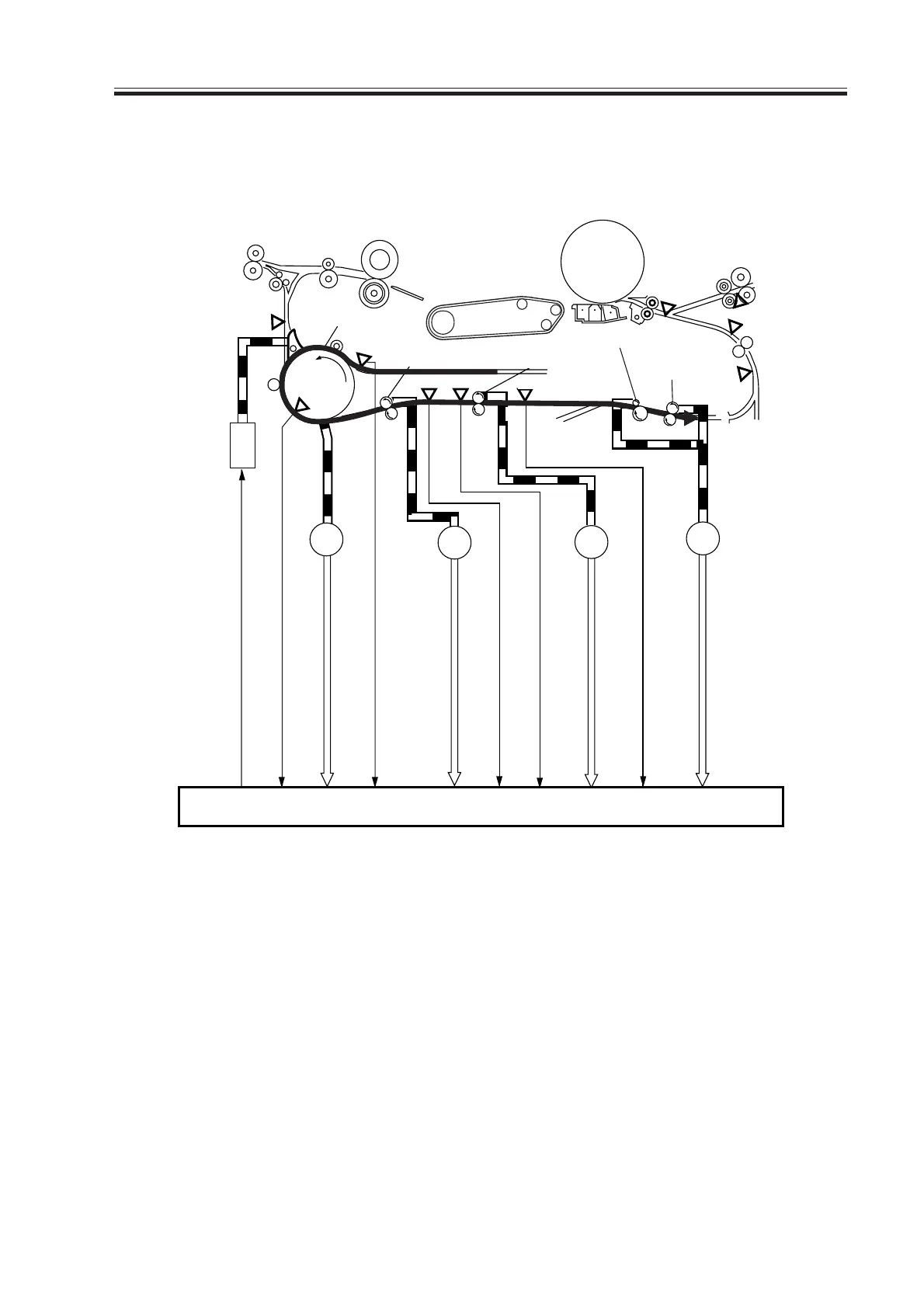

F05-401-02
M18
M25
PS38
PS37
PS24
PS35
PS29
PS30
PS46
Duplexing
assembly
outlet roller
Reversal roller
PS31
PS34
Curling roller
PS28
M14
SL8
M29
J107-B11 Reversing flapper solenoid drive signal (RVFSD2*) J107-B15 Reversal detection signal 1 (RVS1) J107B Reversal motor drive signal J107-B16 Reversal detection signal 2 (RVS2) J107A Duplexing/feeding left motor drive signal J107-B12 Duplexing horizontal registration signal (DSRGPD) J107-B14 Duplexing feeding right motor drive signal (DPDS) J107A Duplexing/feeding right motor drive signal J107-B13 Duplexing pre-registration paper detection signal (DGRFPD) J104B Vertical path duplexing feeding motor drive signal
DC controller PCB
Duplexing
feeding left roller
Duplexing
feeding right roller
Download Free Service Manual at http://printer1.blogspot.com

Canon iR6000 Specifications

General

Print Technology	Laser
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Functions	Print, Copy, Scan
Print Speed	60 ppm
Duplex Printing	Yes
Network Connectivity	Ethernet
Paper Sizes	A3, A4, B4, B5
Warm-Up Time	30 seconds
Multiple Copies	Up to 999
Magnification	25-400%
Copy Speed	60 ppm (A4)
