Canon iR6000 Service Manual

COPYRIGHT © 2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 7 EXTERNALS AND CONTROLS
7-14 P

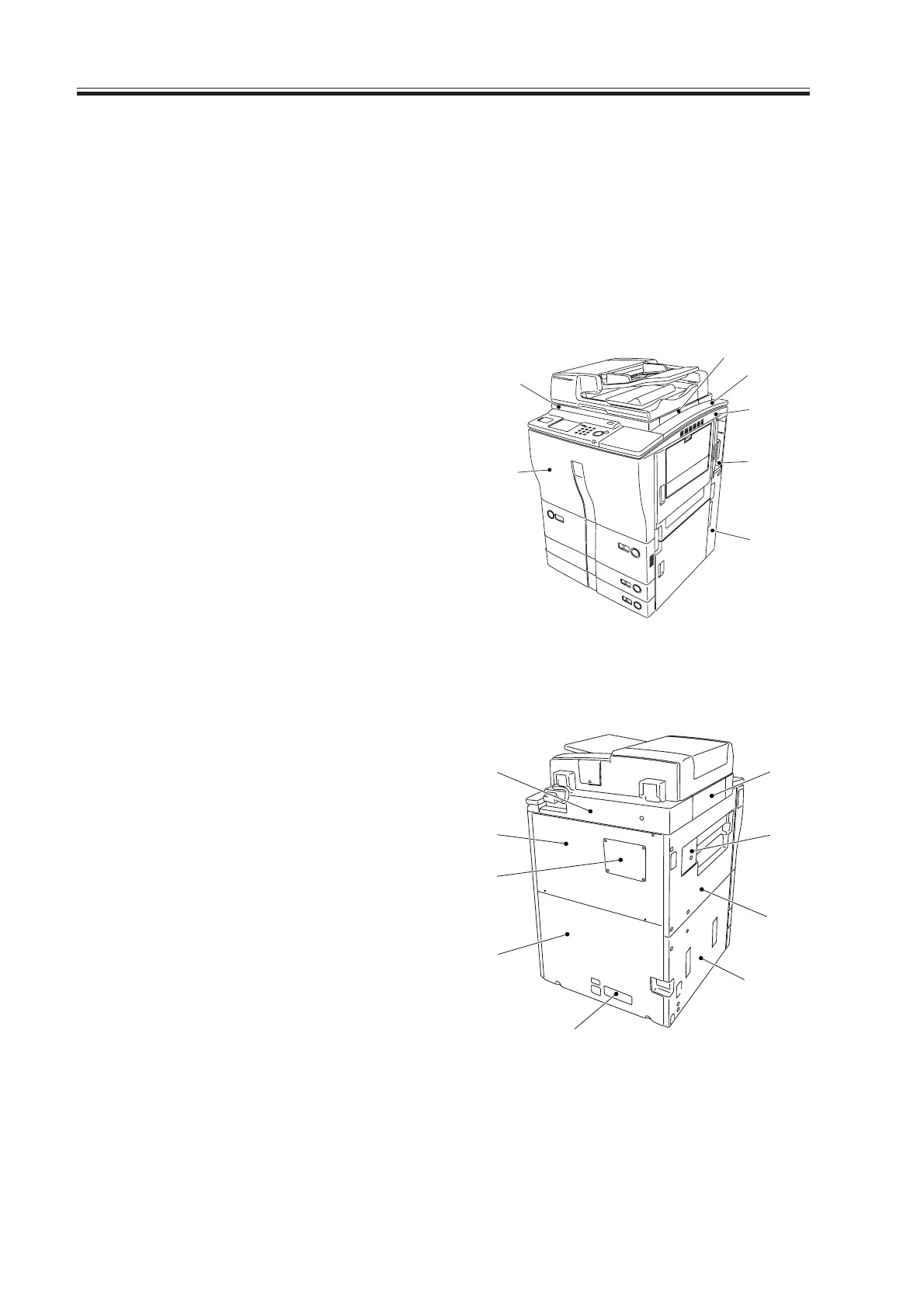

5.1.1 External Covers
Remove the external covers for cleaning,
inspecting, and repairing the inside of the
machine. Those covers that may be de-
tached without difficult are omitted from
the discussions; the number in parentheses
indicates the number of mounting screws
used.
[1] Front cover (1)
[2] Upper cover (3)
[3] Upper cover base (4)
[4] Right rear paper cover (3)
[5] Right rear lower cover (2)
[6] Reader right cover (2)
[7] Reader front cover
(right upper cover, right upper cover
base, reader right/left cover; 2 screws)
Externals 1
F07-501-01
[8] Rear upper cover (4)
[9] PCB cover (4)
[10] Rear lower cover (7)
[11] Filter cover (1)
[12] Left lower cover (5; 2 grip covers)
[13] Left upper cover (6; delivery assembly
cover)
[14] Delivery assembly cover (3)
[15] Reader rear cover (5; ADF connector)
[16] Reader left cover (2)
Externals 2
F07-501-02
[3]
[1]
[4]
[2]
[6]
[5]
[7]
[15]
[9]
[8]
[10]
[11]
[12]
[13]
[14]
[16]
Download Free Service Manual at http://printer1.blogspot.com

Canon iR6000 Specifications

General

Print Technology	Laser
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Functions	Print, Copy, Scan
Print Speed	60 ppm
Duplex Printing	Yes
Network Connectivity	Ethernet
Paper Sizes	A3, A4, B4, B5
Warm-Up Time	30 seconds
Multiple Copies	Up to 999
Magnification	25-400%
Copy Speed	60 ppm (A4)
