Canon iR6000 Service Manual

COPYRIGHT © 2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 6 FIXING SYSTEM
6-33 P

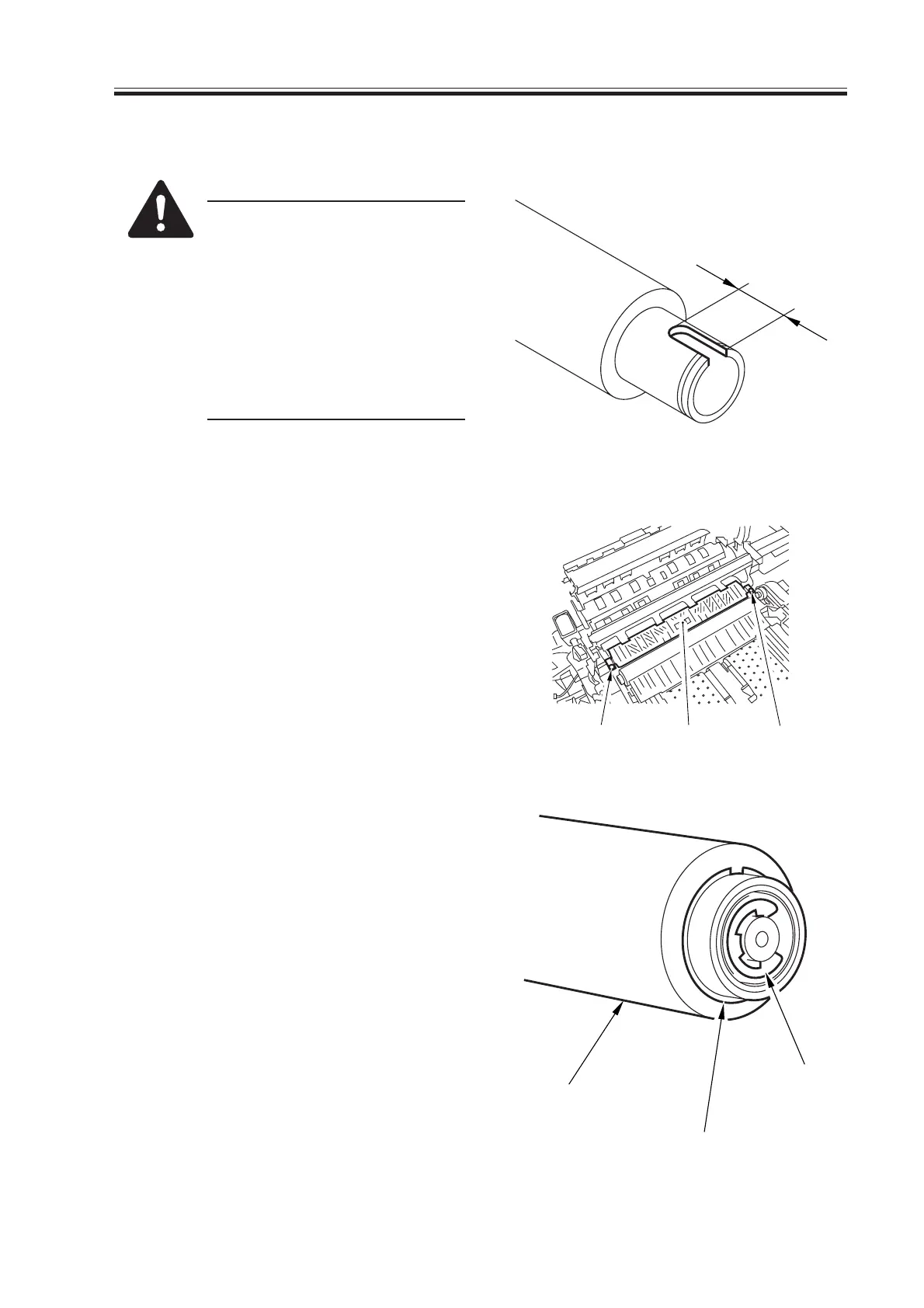

4.4.2 Mounting the Fixing Upper Roller
Mount the upper roller by reversing the steps used to remove it.
a. To avoid soiling or scratching
the surface of the roller, wrap
the upper roller with paper
after removal.
b. Mount it so that cut-off A is
toward the rear as shown.
c. Before mounting it, clean the
electrode plate and the elec-
trode terminals.
F06-404-03
4.4.3 Removing the Fixing Lower Roller
1) Remove the fixing assembly from the
machine.
2) Remove the fixing web, and clean and
remove the oil pan.
3) Open the fixing upper unit.
4) Remove the two screws [1], and detach
the lower separation claw support plate
[2].
F06-404-04
5) Remove the lower roller [3] from the
fixing assembly; then, remove the E-
ring [4] and the bearing [5] from both
front and rear.
F06-404-05
A
[1]
[2] [1]
[3]
[5]
[4]
Download Free Service Manual at http://printer1.blogspot.com

Canon iR6000 Specifications

General

Print Technology	Laser
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Functions	Print, Copy, Scan
Print Speed	60 ppm
Duplex Printing	Yes
Network Connectivity	Ethernet
Paper Sizes	A3, A4, B4, B5
Warm-Up Time	30 seconds
Multiple Copies	Up to 999
Magnification	25-400%
Copy Speed	60 ppm (A4)
