Canon iR6000 Service Manual

COPYRIGHT © 2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 5 PICK-UP/FEEDING SYSTEM
5-7 P

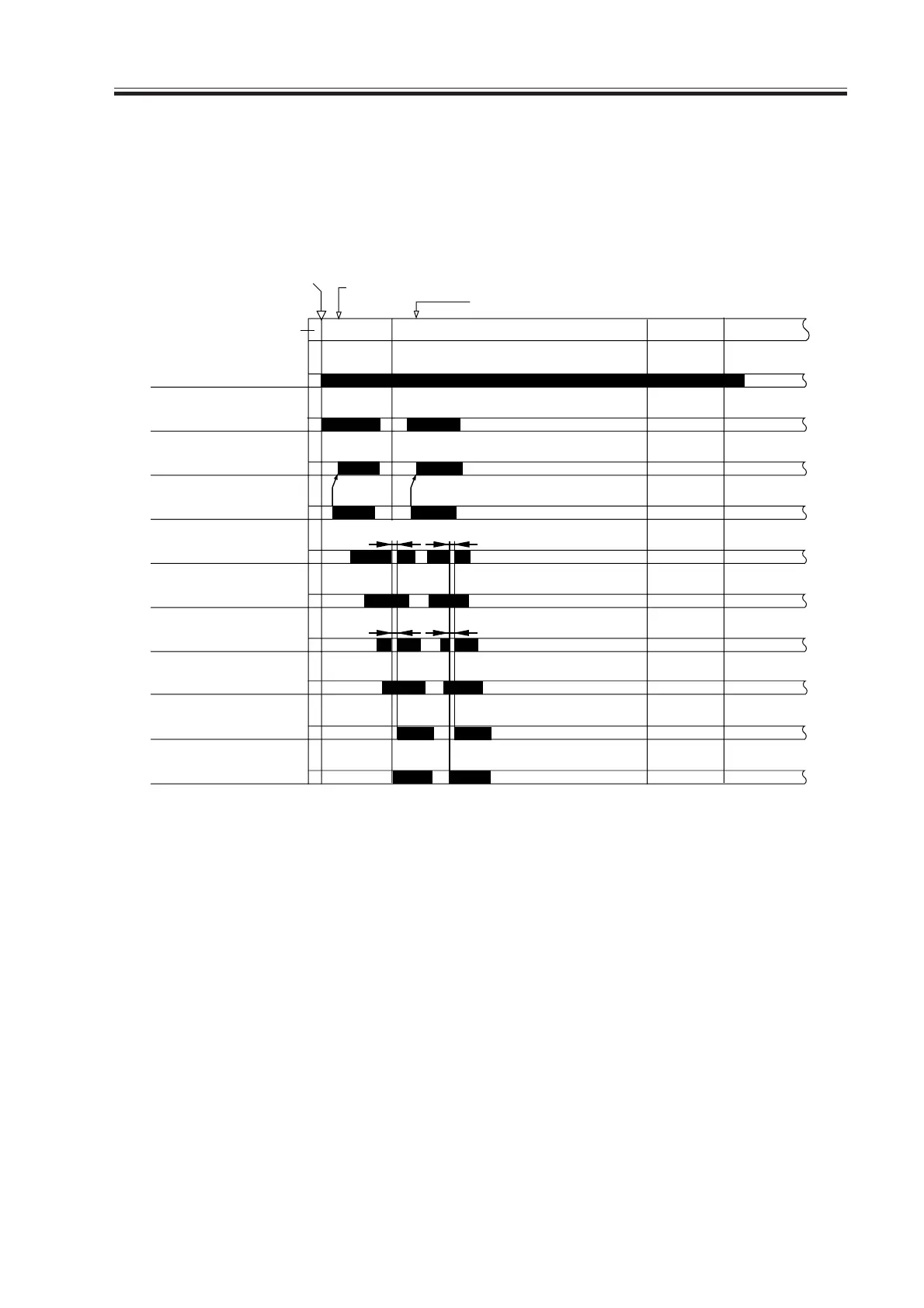

2.1.2 Sequence of Operations (pickup)
a.Right Deck
• A4, 2 Sheets, Continuous
F05-201-03
Start key ON
or print command
received
1st sheet pickup
2nd sheet pickup
Main motor (M2)
INTR
PRINT LSTR STBY
STBY
[1] : Rests to arch against the registration roller.
Right deck pickup
solenoid (SL6)
Right deck pickup
motor (M11)
Right deck retry
sensor (PS19)
Vertical path duplexing
feeding motor (M25)
Pre-registration motor
(M17)
Vertical path roller 1
paper sensor (PS24)
Laser write start
sensor (PS28)
Registration paper
sensor (PS29)
Registration roller
clutch (CL2)
[1][1]
Download Free Service Manual at http://printer1.blogspot.com

Canon iR6000 Specifications

General

Print Technology	Laser
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Functions	Print, Copy, Scan
Print Speed	60 ppm
Duplex Printing	Yes
Network Connectivity	Ethernet
Paper Sizes	A3, A4, B4, B5
Warm-Up Time	30 seconds
Multiple Copies	Up to 999
Magnification	25-400%
Copy Speed	60 ppm (A4)
