Canon iR6000 Service Manual

COPYRIGHT © 2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 3 STANDARDS AND ADJUSTMENTS
3-20 T

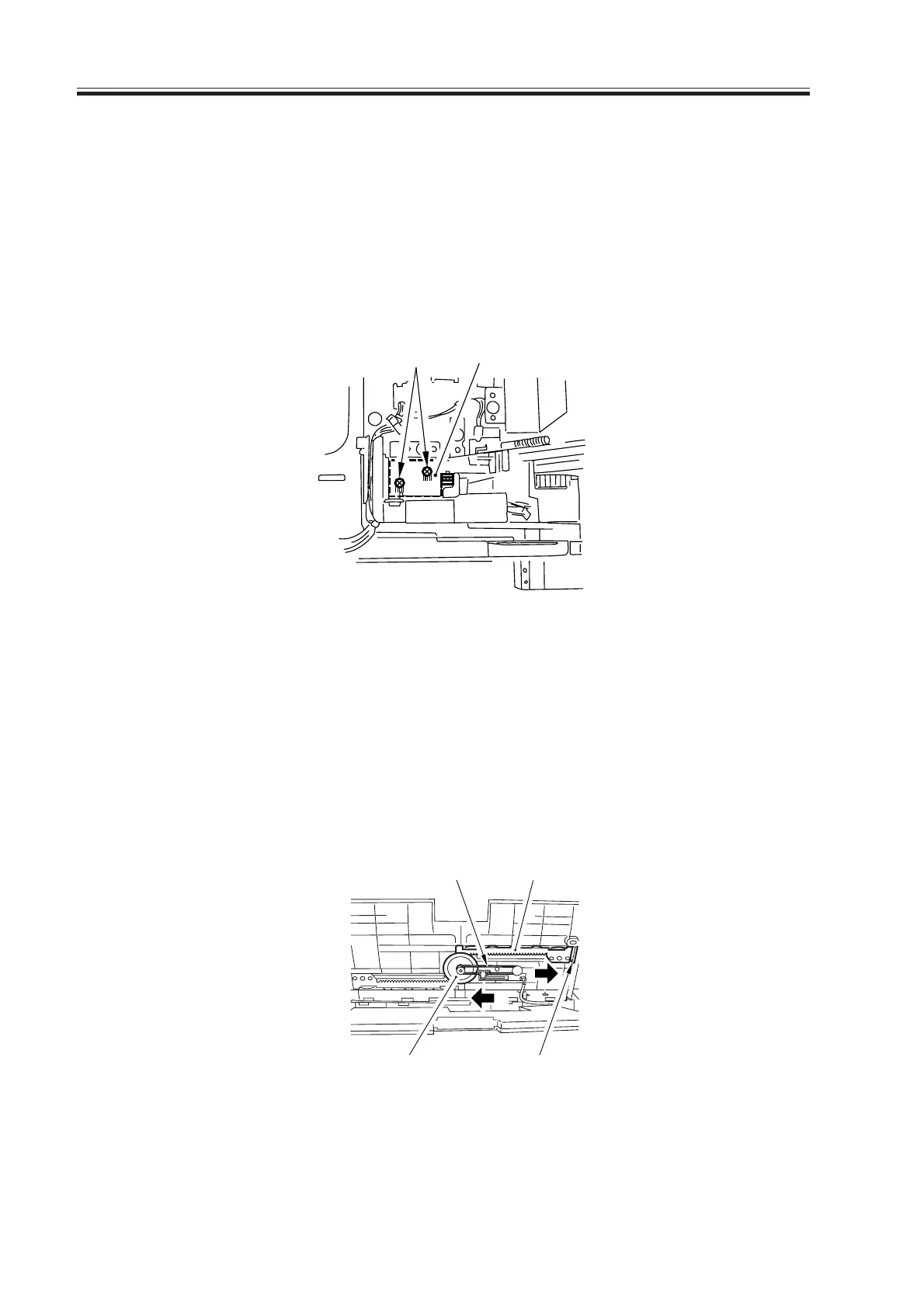

4.15 Position of the Side Paper Deck Pickup Roller Releasing
Solenoid
Before removing the deck pickup roller releasing solenoid [1] from the support plate, take
note of the position of the two fixing screws [2] of the solenoid with reference to the index
on the support plate. Or, draw a line on the support plate so that it will serve as a reference
when positioning the solenoid.
When mounting the solenoid on its own, be sure to secure it in its original position.
F03-415-01
4.16 Attaching the Timing Belt of the Manual Feed Tray
Assembly
1) Butt the rack plate [1] of the manual feed tray against A (open state}.
2) Move the slide volume in the direction of B, and attach the timing belt [2] to the pulley
[3].
F03-416-01
[2]
[1]
A
B
[3]
[2] [1]
Download Free Service Manual at http://printer1.blogspot.com

Canon iR6000 Specifications

General

Print Technology	Laser
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Functions	Print, Copy, Scan
Print Speed	60 ppm
Duplex Printing	Yes
Network Connectivity	Ethernet
Paper Sizes	A3, A4, B4, B5
Warm-Up Time	30 seconds
Multiple Copies	Up to 999
Magnification	25-400%
Copy Speed	60 ppm (A4)
