2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000

CHAPTER 4 IMAGE FORMATION SYSTEM

4-52 P

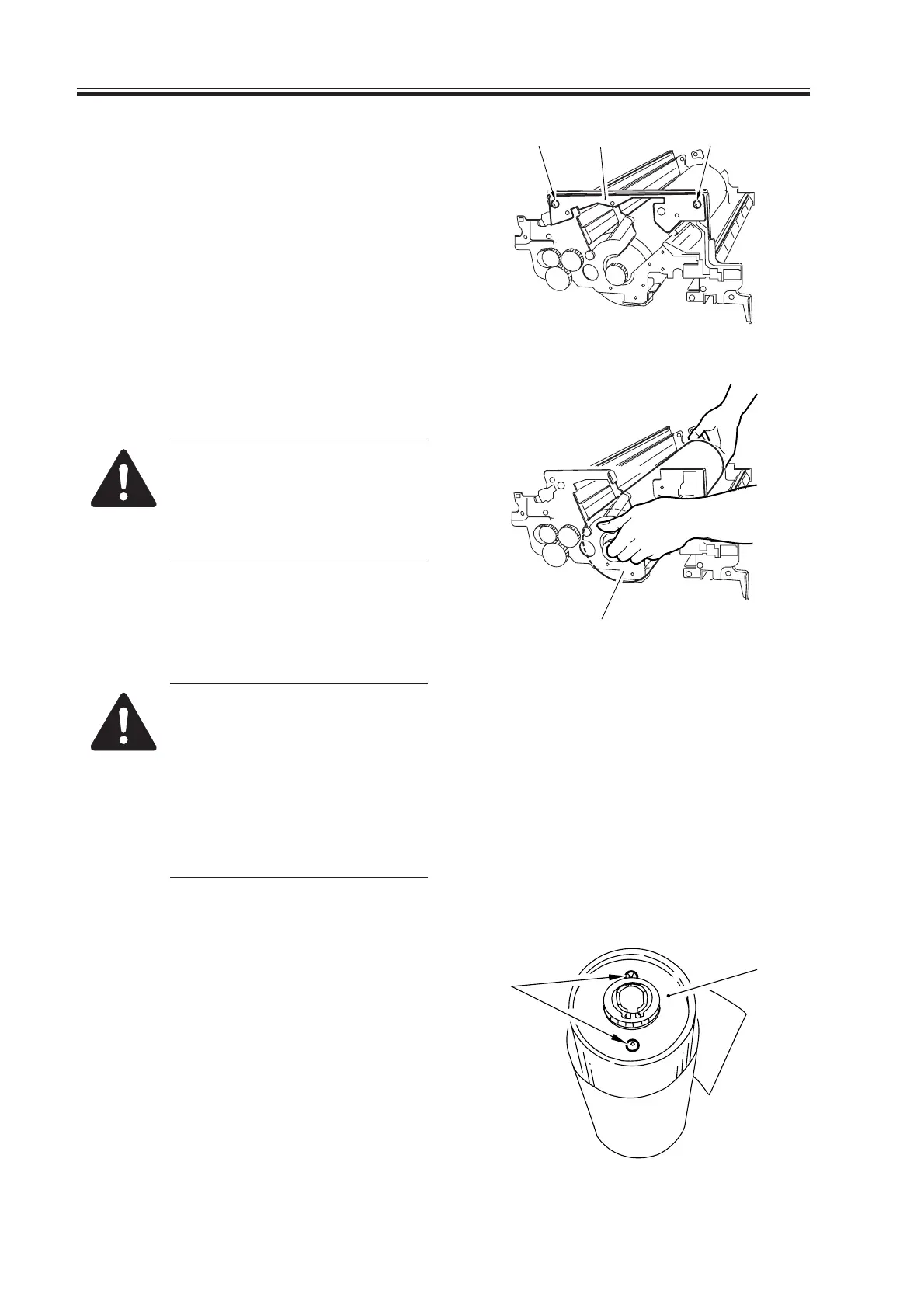

7) Remove the two mounting screws [3],

and detach the front side stay [4].

F04-702-02

8) Holding it as indicated, detach the pho-

tosensitive drum [5].

Take care not to damage the

photosensitive drum when re-

moving it. The bearing at the

rear and the gear at the front of

the drum need not be removed.

F04-702-03

If the temperature of the fixing

assembly is 150°C or higher

when replacing the drum unit,

be sure to execute the following

in service mode; otherwise, po-

tential control will not be ex-

ecuted:

COPIER>FUNCTION>DPC>DPC.

7.2.2 Replacing the Drum Heater

1) Remove the photosensitive drum from

the process unit.

2) Remove the two mounting screws [1],

and detach the flange [2] from the front.

F04-702-04

[1]

[2]

[3]

[3][4]

[5]
