Canon iR6000 Service Manual

COPYRIGHT © 2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 5 PICK UP/FEEDING SYSTEM
5-50 P

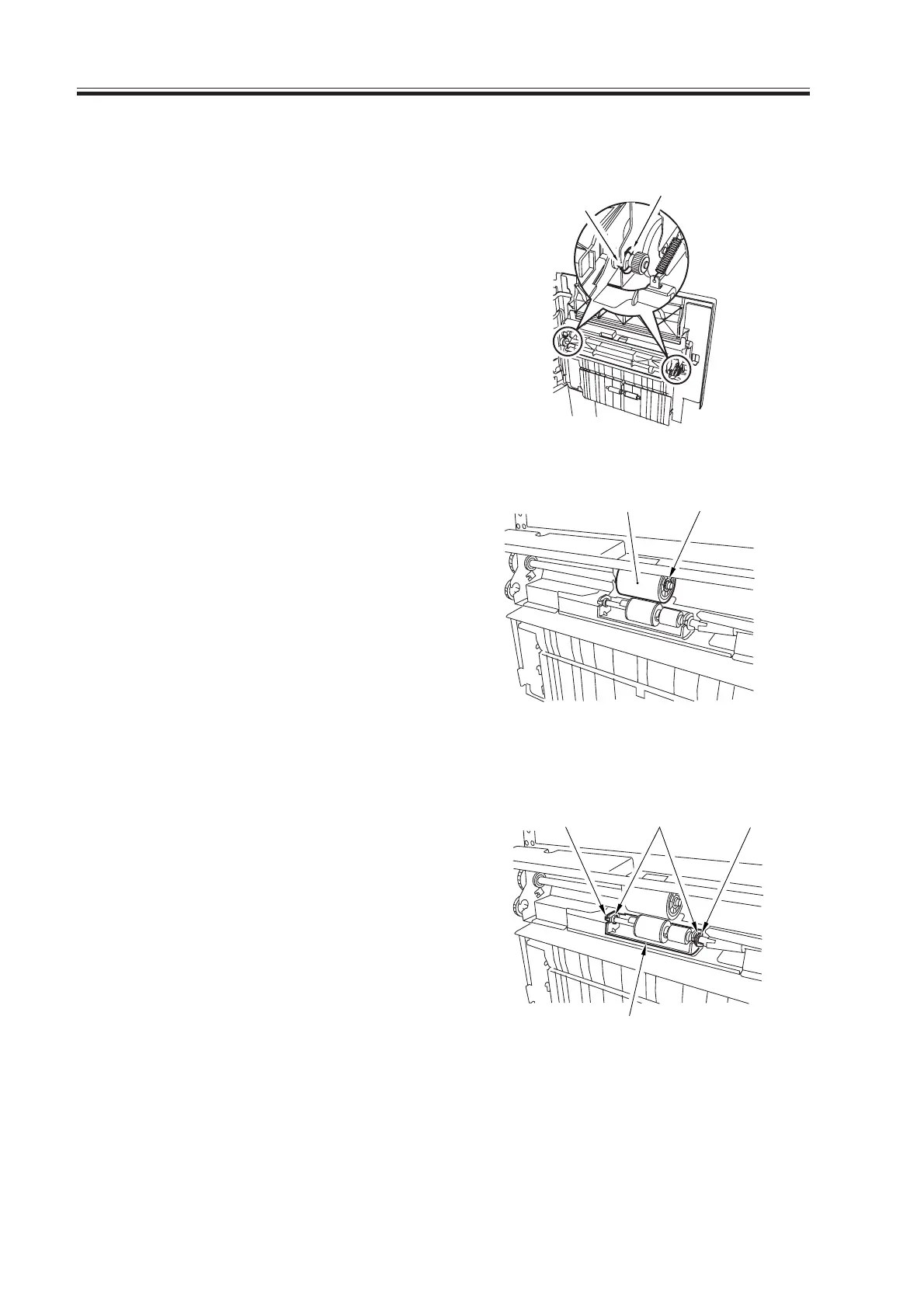

9.1.3 Removing the Manual Feed Pull-Out Roller Unit
1) Open the right upper cover. (See p. 5-
49P.)
2) Remove the two stop rings [1] (left,
right), and shift the two bushings [2];
then, detach the manual feed pull-out
roller unit.
F05-901-04
9.1.4 Removing the Feeding Roller
1) Open the right upper cover. (See p. 5-
49P.)
2) Remove the manual feed pull-out roller
unit. (See p. 5-50P.)
3) Remove the stop print [1], and detach
the pickup roller [2].
F05-901-05
9.1.5 Removing the Separation Roller
1) Remove the manual feed pull-out roller
unit. (see p. 5-50P.)
2) Remove the two stop rings [1] (left,
right), and remove the two bushings [2];
then, detach the separation roller assem-
bly [3].
F05-901-06
[2]
[1]
[2]
[1]
[1]
[2]
[3]
[1]
Download Free Service Manual at http://printer1.blogspot.com

Canon iR6000 Specifications

General

Print Technology	Laser
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Functions	Print, Copy, Scan
Print Speed	60 ppm
Duplex Printing	Yes
Network Connectivity	Ethernet
Paper Sizes	A3, A4, B4, B5
Warm-Up Time	30 seconds
Multiple Copies	Up to 999
Magnification	25-400%
Copy Speed	60 ppm (A4)
