CHAPTER 4 IMAGE FORMATION SYSTEM
4-75 P
7.9.3 Mounting the Blade
Mount the blade by reversing the steps used to remove it.
1) Push the blade mounting base against
the developing assembly, and tighten
the two mounting screws.
When mounting the blade, place copy
paper on the developing cylinder first to
protect the developing cylinder.

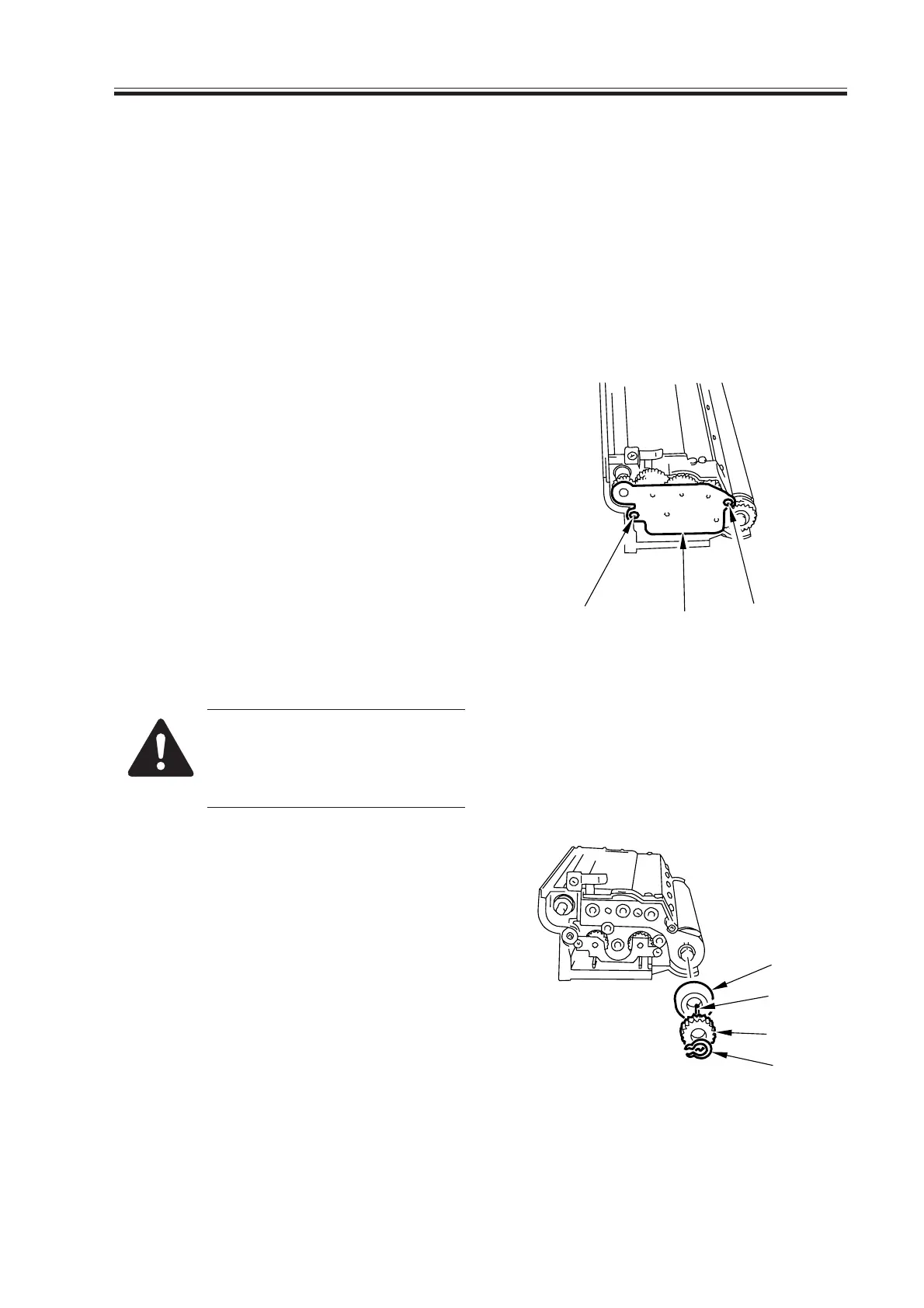

7.9.4 Removing the Developing Cylinder/Magnetic Seal
1) Remove the developing assembly from
the machine.
2) Remove the blade unit.
3) Remove the two mounting screws [1],
and detach the gear unit [2] together
with the gear.
F04-709-05
When removing the gear unit,
be sure to take care, as the gear
attached to the screw will be-
come free.
4) Remove the grip ring [3] mounted to
the cylinder shaft at the rear; then, re-
move the gear [4], parallel pin [5], and
push-on roll [6].
F04-709-06
[1]
[1]
[2]
[6]
[3]
[4]
[5]
