Canon iR6000 Service Manual

COPYRIGHT © 2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 5 PICK-UP/FEEDING SYSTEM
5-26 P
4. Double-Sided Prints
4.1 Control System
4.1.1 Sending Paper to the Reversing Assembly After Printing on the First
Side

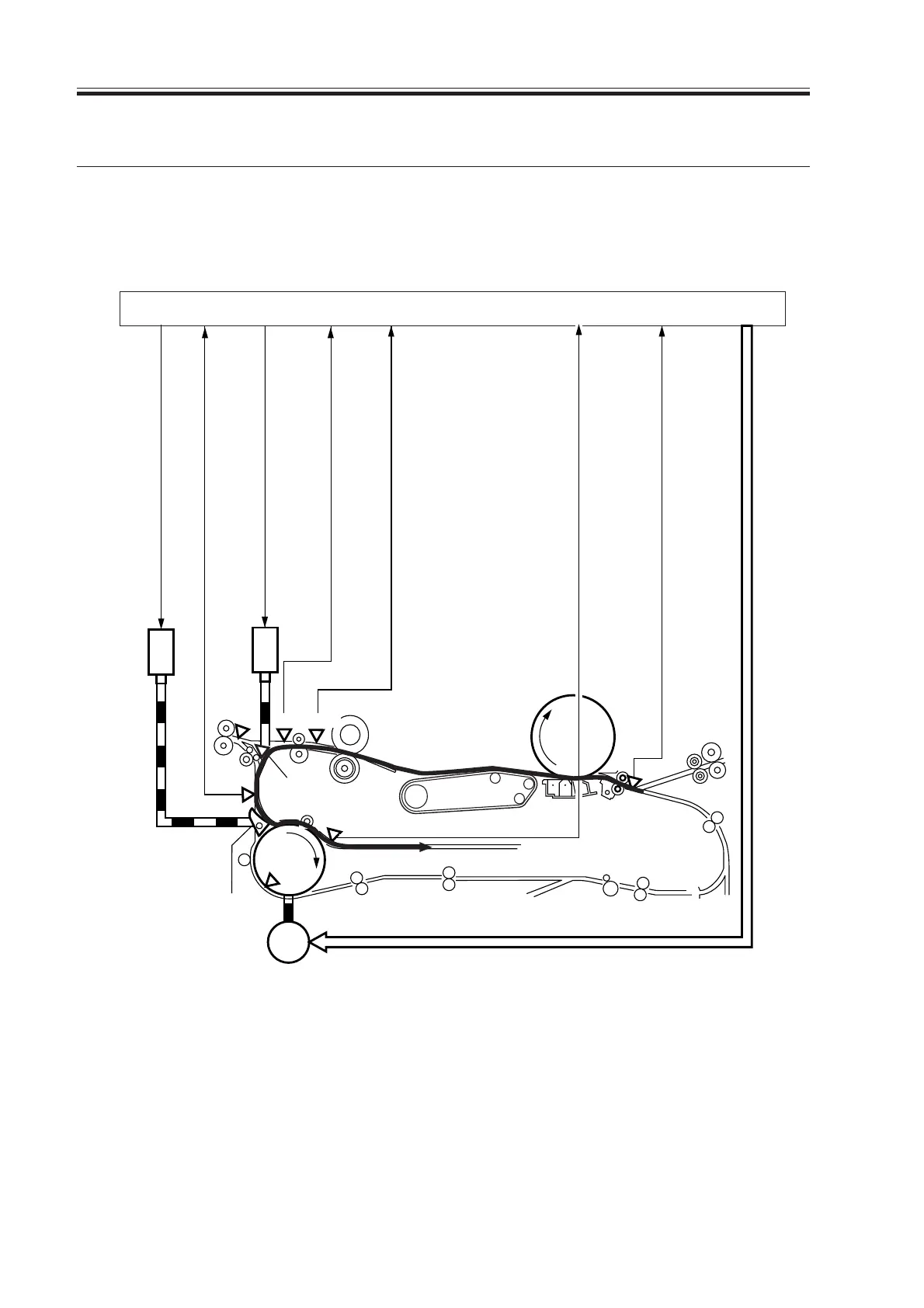

F05-401-01
PS36
PS38
PS37
PS35PS4
PS46
Reversing flapper
Delivery flapper
PS29
M14
SL8
SL5
Reversing flapper solenoid drive signal
(RVFSD2*)
J107-B11
Delivery assembly jam detection signal (DSJAM)
J106-B2
Delivery flapper solenoid drive signal
(RIVFS-D1*)
J106-A14
Internal delivery sensor drive signal (IDS)
J106-B1
Claw jam detection signal (CJAM)
J106-B19
Reversal detection signal 2(RVS2)
J107-B16
Registration paper detection signal (RGPD)
J106-A9
Reversal motor drive signal
J107B
DC controller PCB
Download Free Service Manual at http://printer1.blogspot.com

Canon iR6000 Specifications

General

Print Technology	Laser
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Functions	Print, Copy, Scan
Print Speed	60 ppm
Duplex Printing	Yes
Network Connectivity	Ethernet
Paper Sizes	A3, A4, B4, B5
Warm-Up Time	30 seconds
Multiple Copies	Up to 999
Magnification	25-400%
Copy Speed	60 ppm (A4)
