Canon iR6000 Service Manual

COPYRIGHT © 2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 5 PICK UP/FEEDING SYSTEM

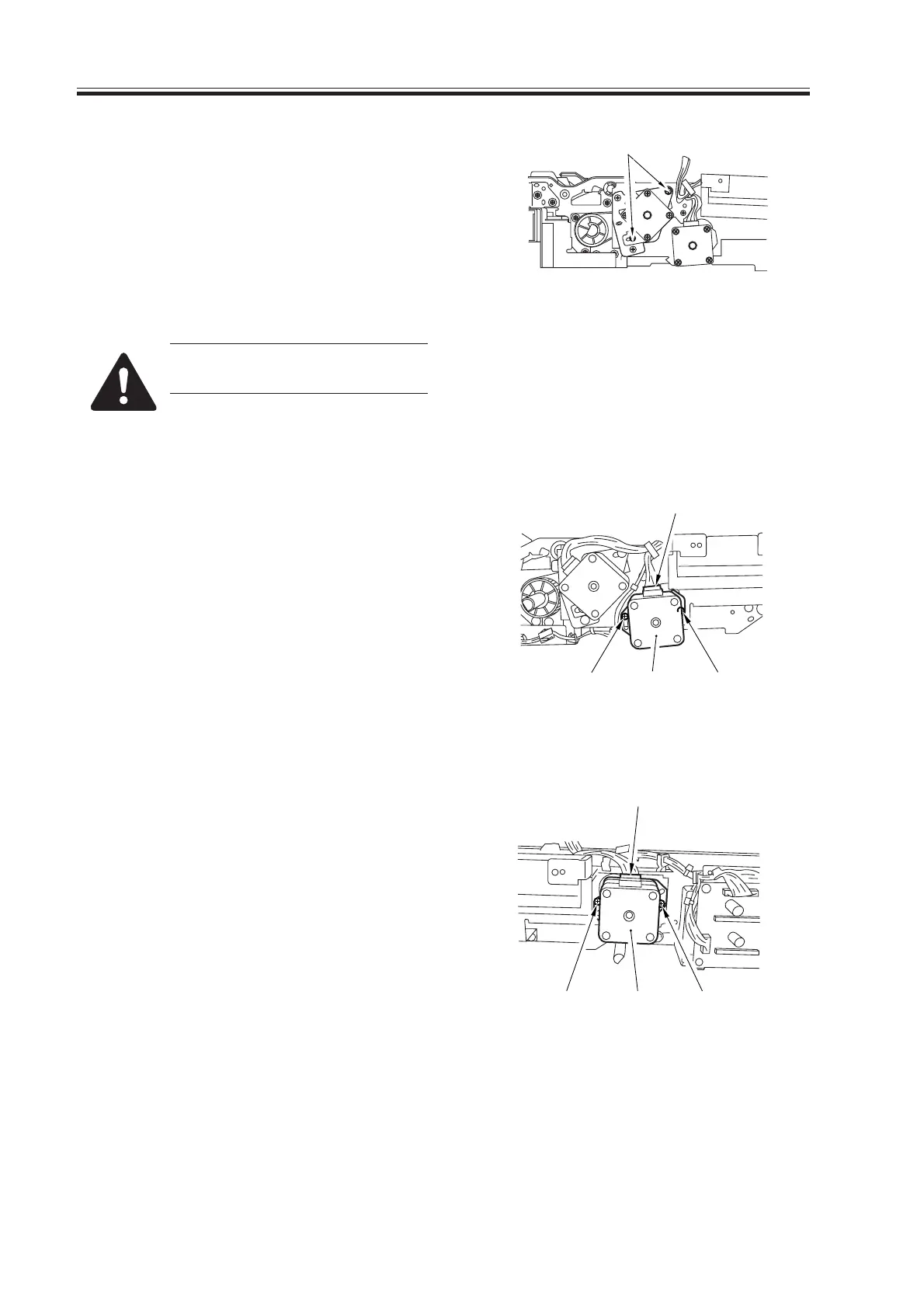

5-72 P
3) Loosen the two screws [2] that have
been tightened temporarily, and check
to make sure that the spring provides
tension; then, tighten the screws [2].
F05-906-07
At the end, be sure the timing
belt has tension.
9.6.5 Removing the Duplexing Feeding Left Motor
1) Remove the front cover of the duplex
unit.
2) Disconnect the connector [1], and re-
move the two screws [2]; then, detach
the duplex feeding left motor [3].
F05-906-08
9.6.6 Removing the Duplex Feeding Right Motor
1) Remove the front cover of the duplex
unit.
2) Disconnect the connector [1], and re-
move the two screws [2]; then, detach
the duplex feeding right motor [3].
F05-906-09
[2]
[2][2] [3]
[1]
[1]
[2] [2][3]
Download Free Service Manual at http://printer1.blogspot.com

Canon iR6000 Specifications

General

Print Technology	Laser
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Functions	Print, Copy, Scan
Print Speed	60 ppm
Duplex Printing	Yes
Network Connectivity	Ethernet
Paper Sizes	A3, A4, B4, B5
Warm-Up Time	30 seconds
Multiple Copies	Up to 999
Magnification	25-400%
Copy Speed	60 ppm (A4)
