5.4.5 Accessories Power Supply PCB
1) Remove the rear lower cover and the
left lower cover.
2) Remove the six screws [1], and discon-
nect the six connectors [2]; then, detach
the power cord base [3].

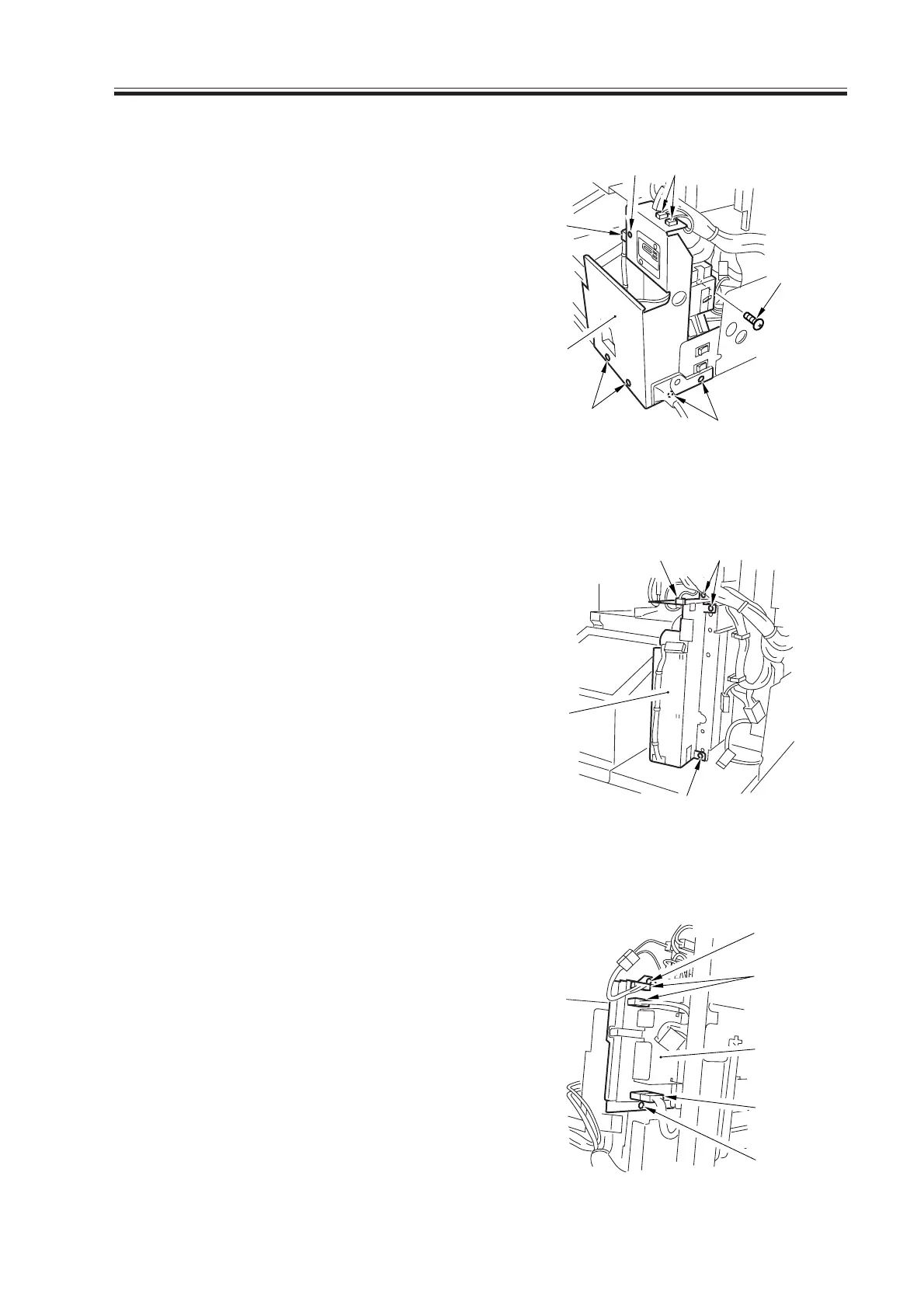

F07-504-10
3) Remove the three screws [4], and dis-
connect the two connectors [5]; then,
detach the accessories power supply
PCB [6].
F07-504-11
5.4.6 AC Driver PCB
1) Remove the rear upper/lower cover and
the left upper/lower cover.
2) Remove the two screws [1], and discon-
nect the three connectors [2]; then, de-
tach the AC driver PCB [3].
F07-504-12
[1] [2]
[1]
[1]
[1]
[3]
[2]
[4][5]
[4]
[6]
[1]
[2]
[3]
[2]
[1]
