o Keyboard to system board
o Diskette drive to system board
o Display cable to system board
o Display cable to display panel (black-and-white TFT only)
To remove a cable from a ZIF connector, lift both corners of the ZIF
connector slide simultaneously with constant light force until the

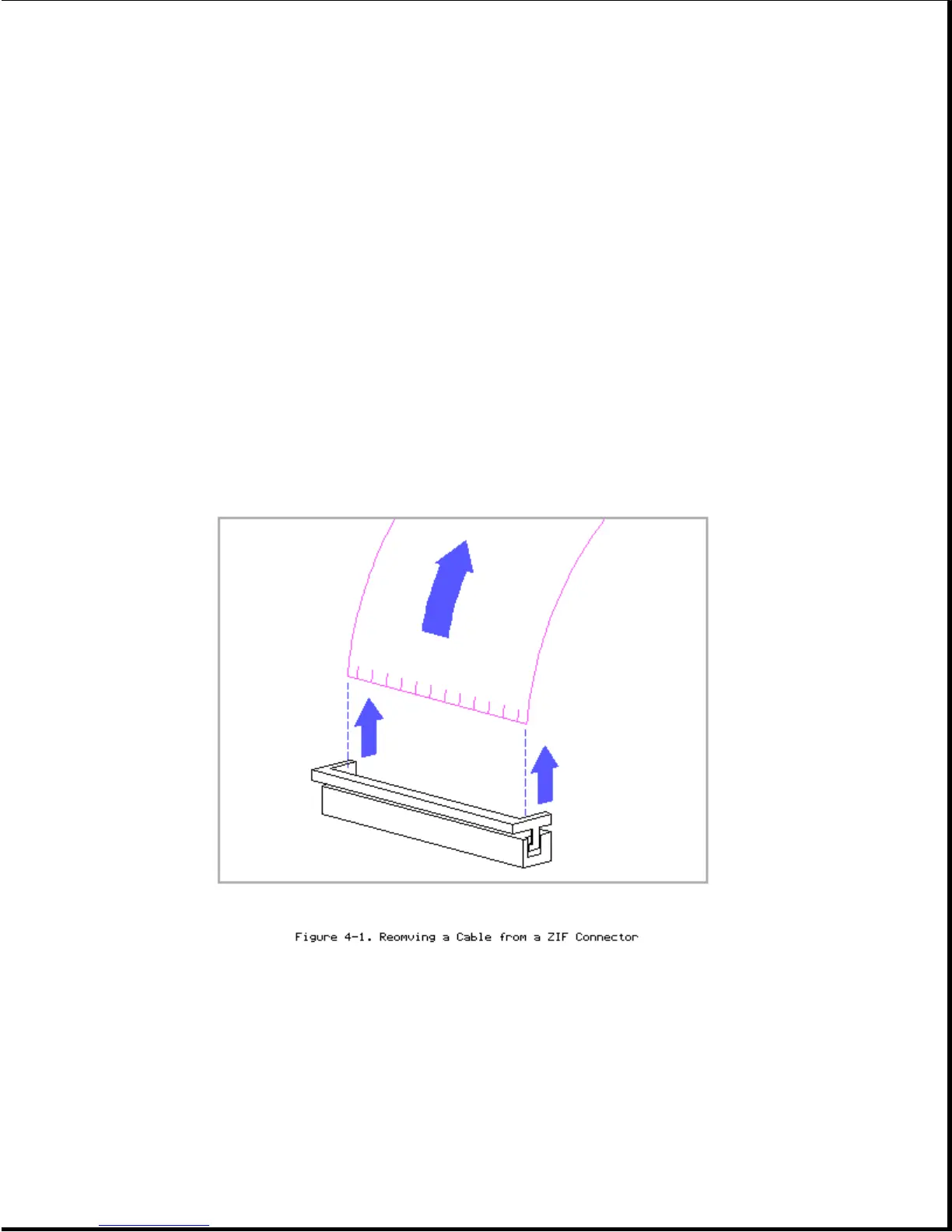

connector slide releases, then remove the cable (Figure 4-1).
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
A ZIF connector and its attached cable can be easily damaged. Handle only
the connector slide when removing or replacing a cable. Never pull or twist
on the cable while it is connected.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
IMPORTANT: Due to space limitations inside the system unit, the display
cable cannot be removed from the system board ZIF connector
using the standard removal technique. To remove the cable, the
connector removal tool must be used. Refer to "Removing the
Display Assembly" in Section 4.9.
