the factory. To prevent interference with the trackball when
the original trackball shield is reused, the tab for the
trackball shield must go back in its original position (above
or beneath the clutch). When replacing the trackball shield
with a new spare trackball shield (Table 3-11), the mounting
tab always goes beneath the clutch.
4. Remove the two remaining clutch screws (Figure 4-21).

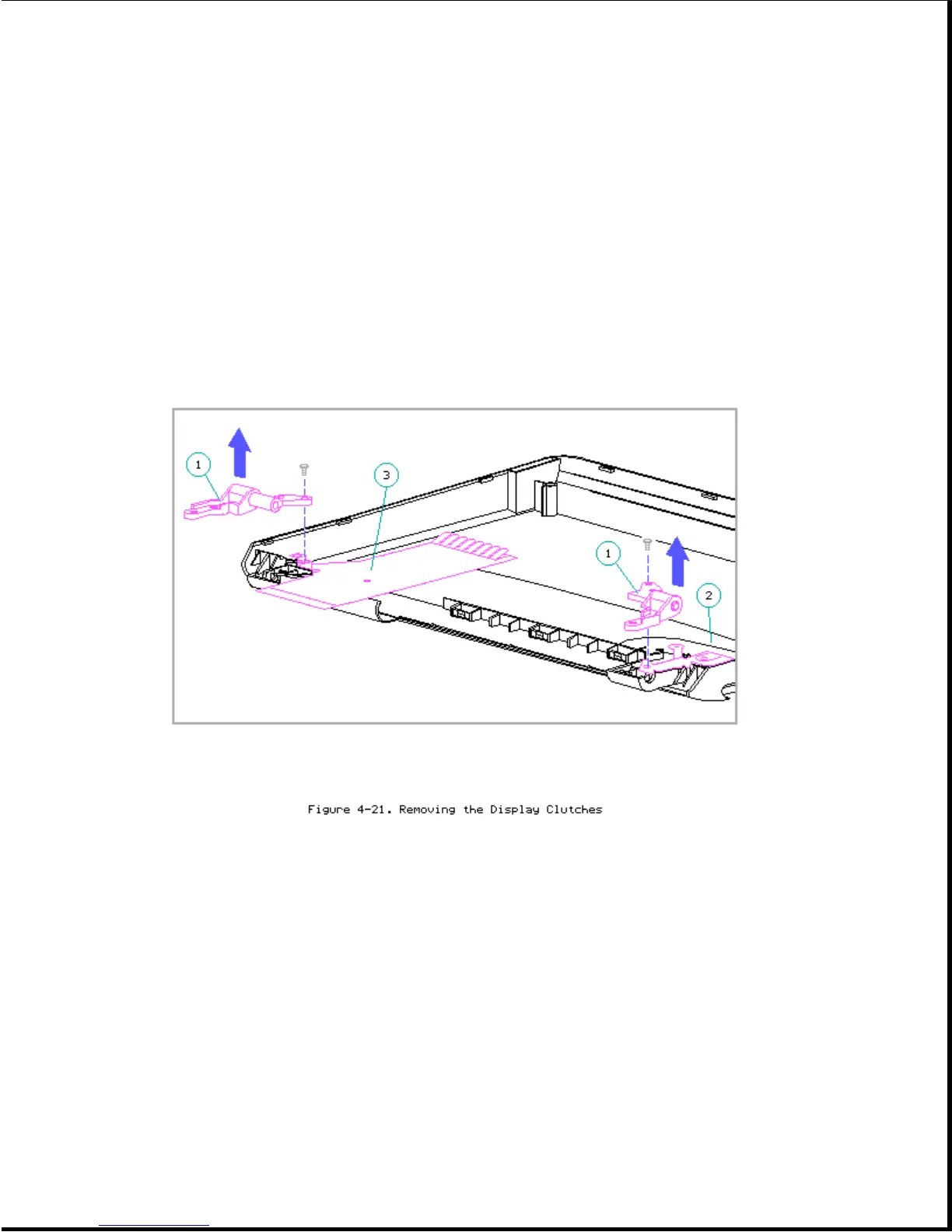

5. Remove the display clutches [1] from the display assembly. (Figure 4-21)
Display Enclosure
NOTE: To replace the display enclosure on the 9.5-inch color TFT model,
replace the entire display assembly (refer to "Removing the Display
Assembly" in this section).
To remove the display enclosure, complete the following steps:
1. Remove the keyboard cover (Section 4.7).
2. Remove the display assembly (refer to "Removing the Display Assembly"
in this section).
