Replacing the Keyboard
To replace the keyboard, complete the following steps:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
The keyboard cable and ZIF connector on the system board can be easily
damaged. Handle only the connector slide when replacing the cable; never
pull or twist on the cable while it is connected.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
1. Connect the keyboard cable to the ZIF connector on the system board.
IMPORTANT: Fully seat the cable before closing the ZIF connector slide.
Close the connector slide by simultaneously pressing on both
corners. When closed, the insertion line on the cable should
be even with the top edge of the connector slide. If it is
not, release the connector and fully seat the cable.
2. Place the keyboard toward the back of the computer approximately

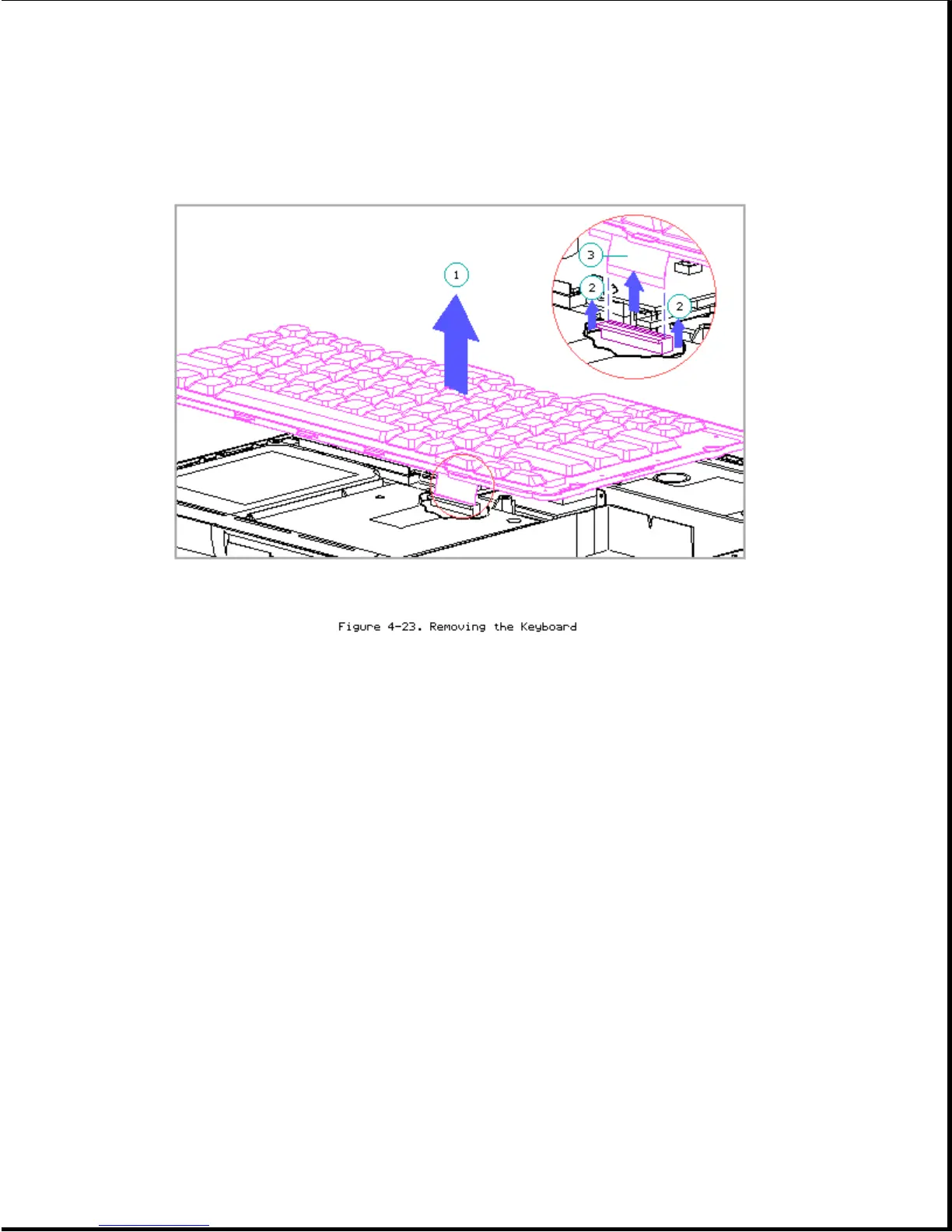

7 millimeters from its normal installed position (Figure 4-24).
3. Slide the keyboard forward to engage the keyboard alignment tabs at the
To Next Page
