Display Cable
NOTE: To replace the display cable on the 9.5-inch color TFT model, replace
the entire display assembly (refer to "Removing the Display Assembly"
in this section).
It is not necessary to remove the display assembly to remove the display
cable. To remove the display cable, complete the following steps:
1. Remove the keyboard cover (Section 4.7).
2. Remove the display cable and the display ground cable from the system
unit by completing steps 2 and 3 as listed in "Removing the Display
Assembly" in this section.
3. Remove the display bezel (refer to "Display Bezel" in this section).
4. Remove the display panel (refer to "Display Panel" in this section).
5. Disconnect the display cable from the inverter board.

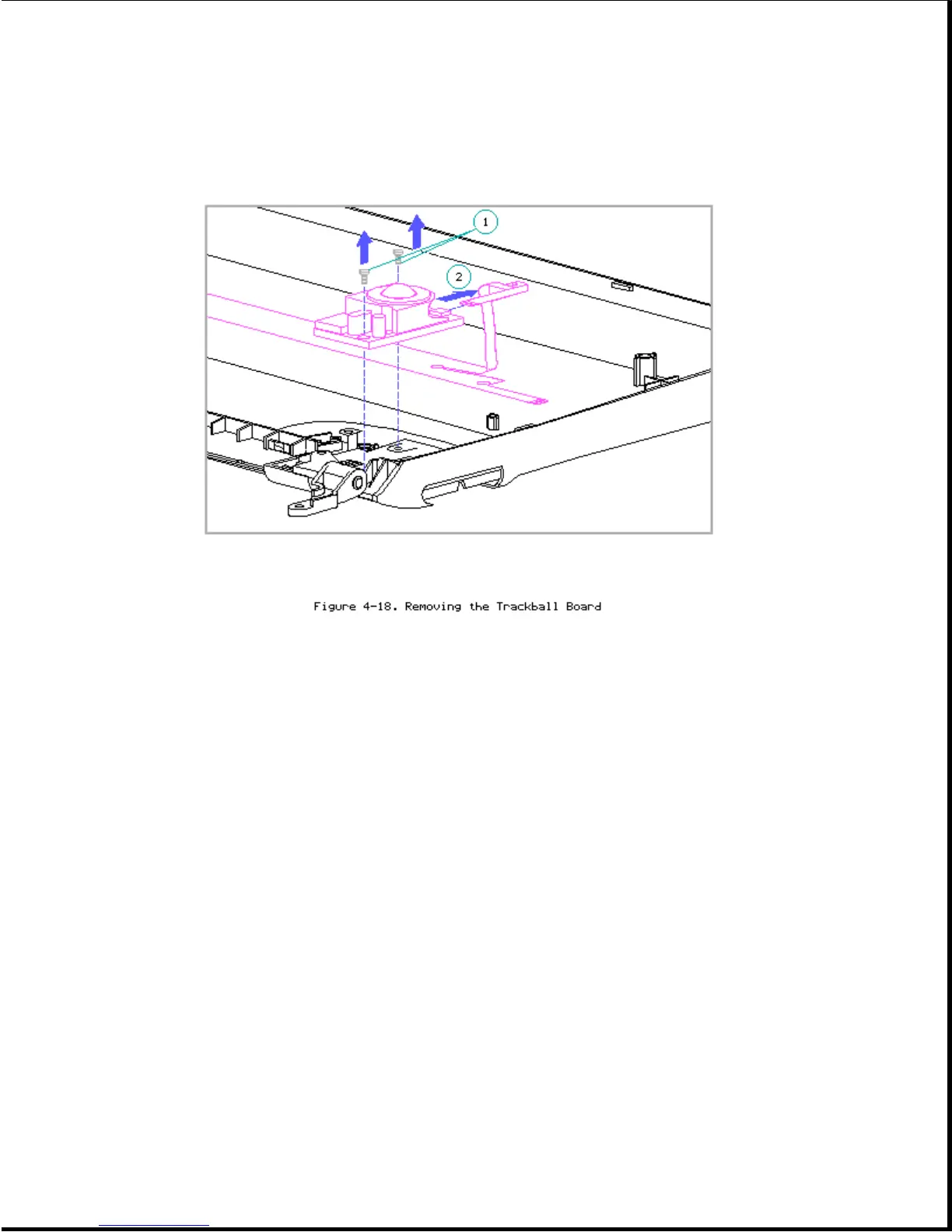

6. Disconnect the display cable from the trackball board.
