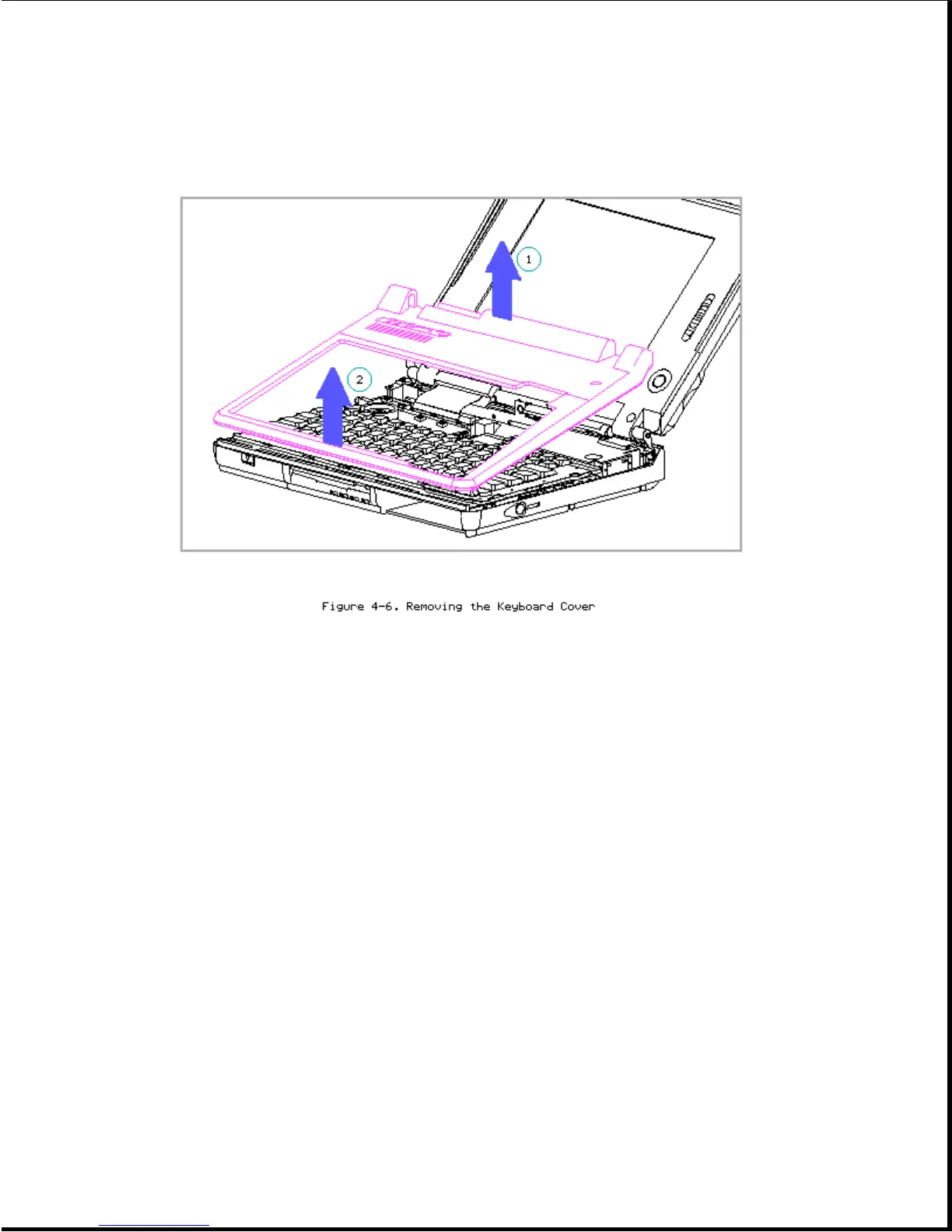

IMPORTANT: When replacing the keyboard cover, angle the front edge of the
keyboard cover into place at the front of the computer, ensuring
that the tabs on the keyboard cover correctly align with the
corresponding recesses on the computer. Gently press the rear
edge of the keyboard cover into place at the back of the
computer, and verify that the front edge is aligned. If the seam
between the computer and the keyboard cover is uneven, remove
the keyboard cover and realign the tabs and recesses.
4.8 Auxiliary Battery
Refer to "Auxiliary Battery" in Section 1.6 for more information on the
auxiliary battery.
To remove the auxiliary battery, complete the following steps:
1. Remove the keyboard cover (Section 4.7).
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
To avoid a potential short to the computer, do not use a metal tool to
