9.13 System Board And Battery Charging Compartment
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
ESD can damage electronic components. Ensure that you are properly grounded
before removing or replacing the system board and battery charging
compartment.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
To remove the system board and battery charging compartment, complete the
following steps:
1. Remove the bottom cover (Section 9.6).
2. Remove any expansion boards that are installed (Section 9.8).
3. Remove the expansion board cage (Section 9.9).

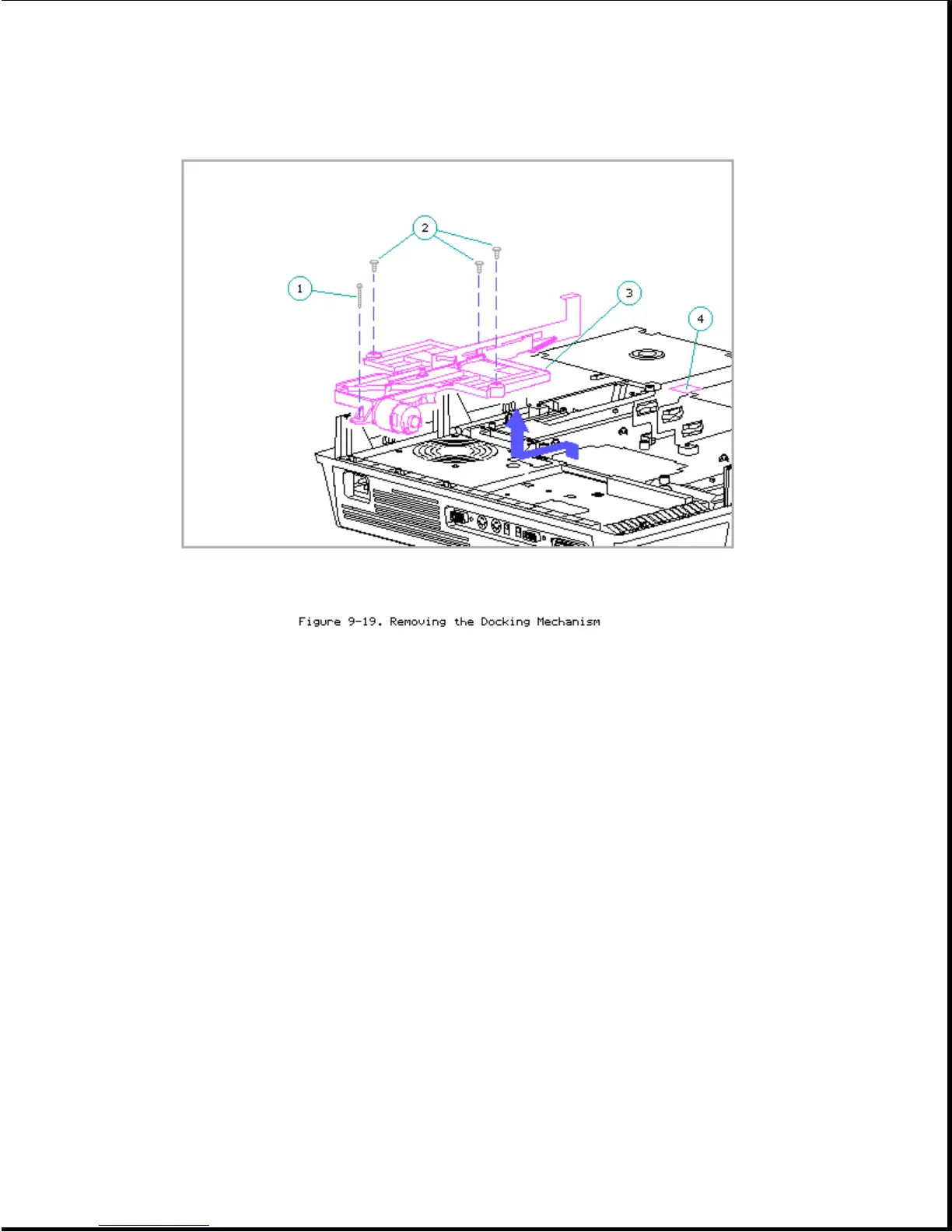

4. Remove the docking mechanism (Section 9.12).
5. Disconnect the SCSI cable if it is connected to the system board.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
