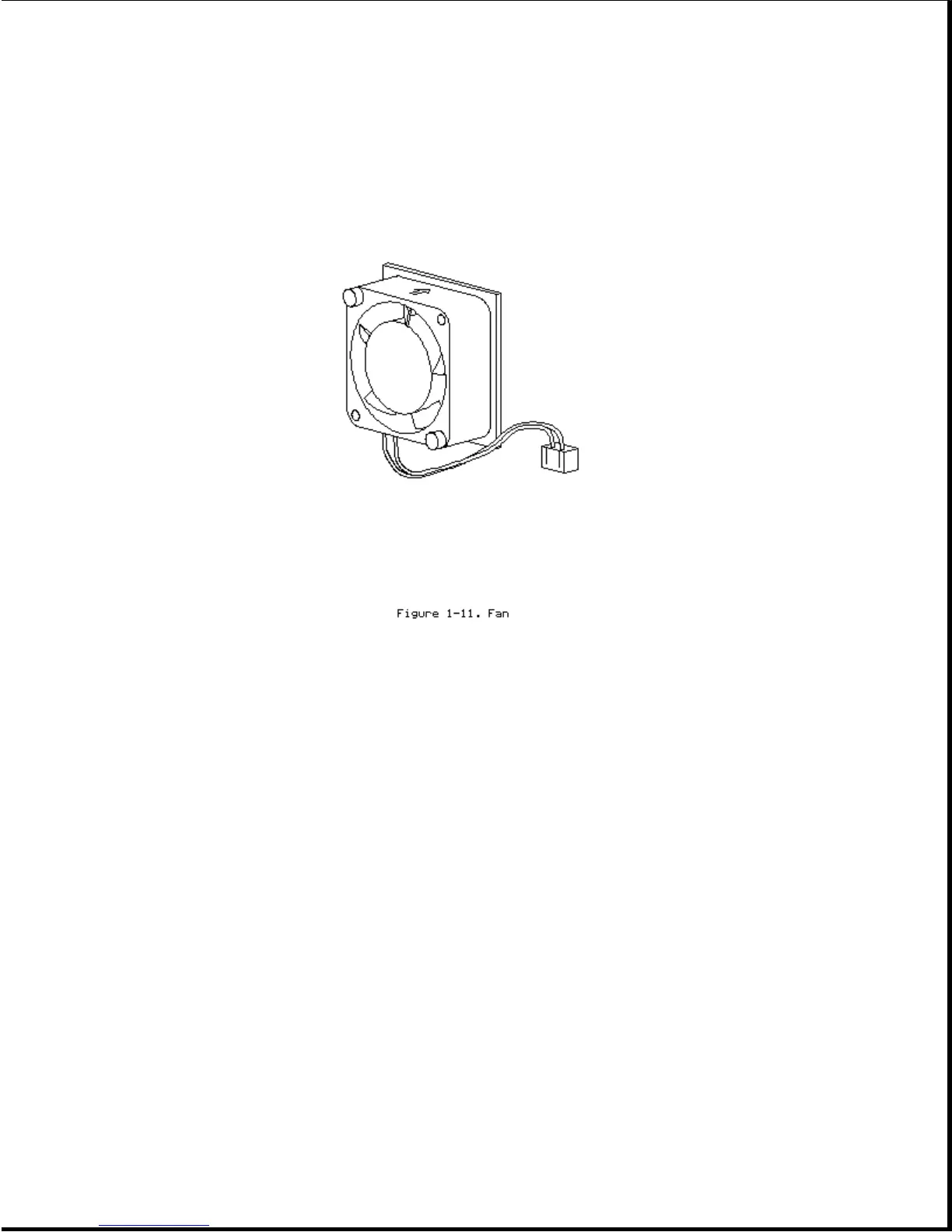

The internal fan (Figure 1-11) draws in fresh air through vent holes in the
PCMCIA compartment door, then exhausts it out the back of the computer.
The fan operates on 5 volts and is controlled by temperature sensors
located near the internal power supply and the processor board. The fan is
designed to turn on automatically when the system approaches maximum
reliable operating temperatures (refer to "Temperature Sensors" in this
section).
The fan is integrated into the input/output (I/O) bracket/fan assembly. To
replace the fan, the I/O bracket/fan assembly must be replaced.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
To properly ventilate the computer, allow at least a 3-inch (7.62 cm)
clearance at the back and sides of the unit.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Keyboard
The internal keyboard is connected to the system board by a flex cable. In
addition to the internal keyboard, there is a connector for an external
keyboard/mouse.
