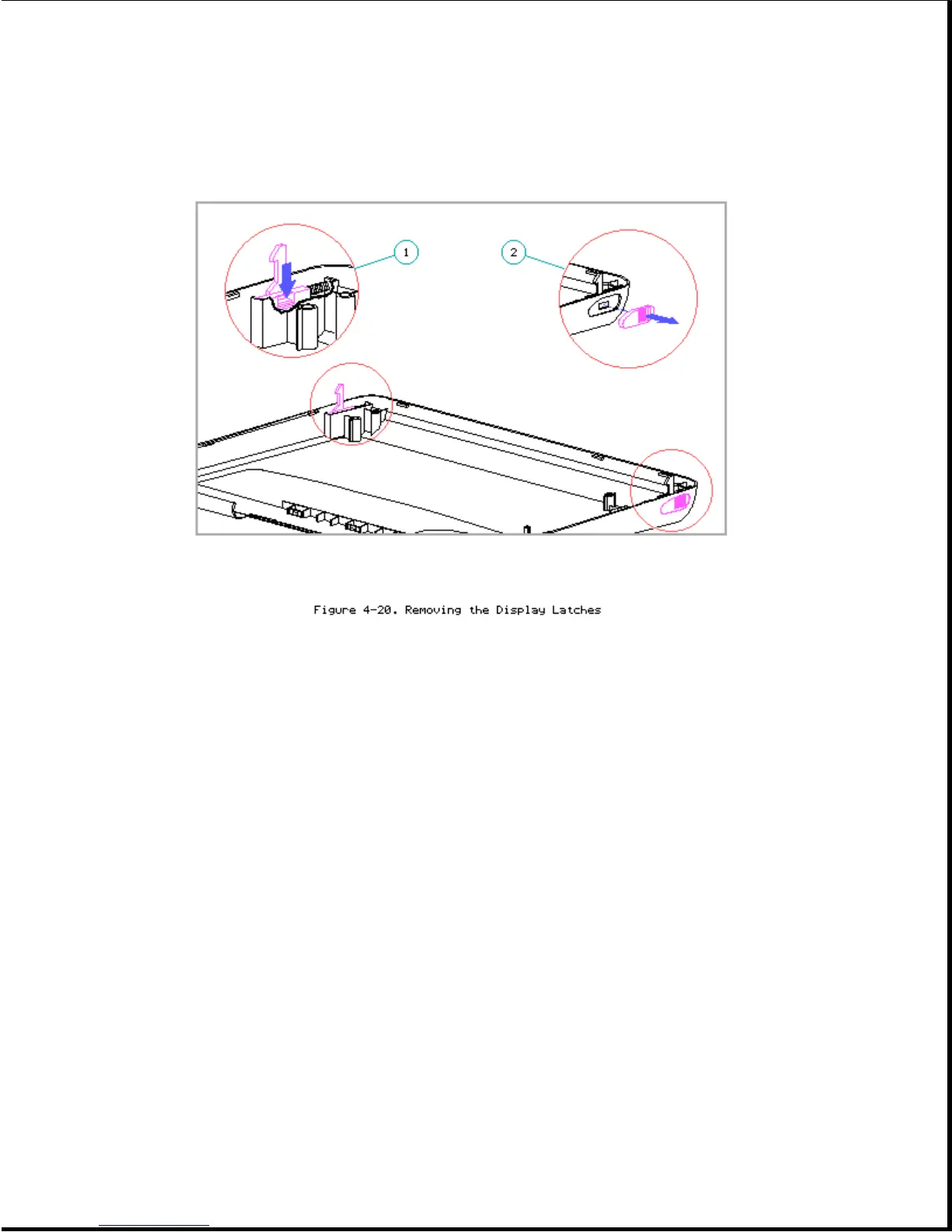

3. Remove the display latches and springs from the latch compartments.
Display Clutches
To remove the display clutches, complete the following steps:
1. Remove the keyboard cover (Section 4.7).
2. Remove the display assembly (refer to "Removing the Display Assembly" in
this section).
3. Remove the display bezel (refer to "Display Bezel" in this section).
NOTE: Two screws that attach the bezel to the display enclosure also
attach the clutches to the display enclosure.
IMPORTANT: Before removing the two remaining clutch screws (step 4),
note that these screws also attach the mounting tab of the
trackball shield [2] and one of the mounting tabs of the
display ground cable [3] (Figure 4-21). The tab for the
display ground cable goes beneath the clutch. The tab for the
trackball shield goes either above or beneath the clutch,
depending on which type of shield was originally installed in
