Compaq LTE Elite User Manual

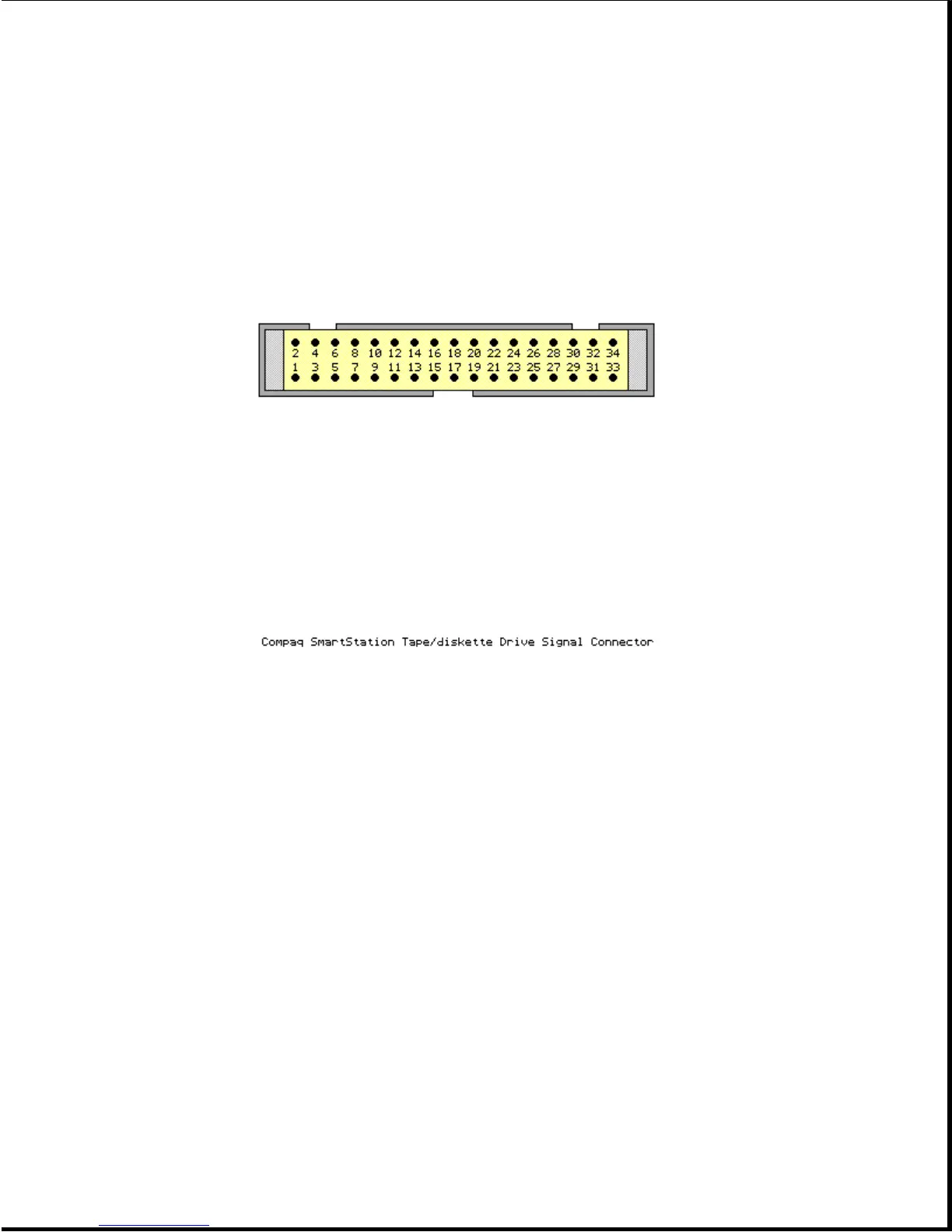

Table A-16. Compaq SmartStation Tape/diskette Drive Signal Connector
===========================================================================
Pin Signal Pin Signal
===========================================================================
1 Ground 18 Diskette Direction In *
2 Diskette Low Density * 19 Ground
3 Ground 20 Diskette Step *
4 Diskette Low Density Media * 21 Ground
5 Ground 22 Diskette Write Data *
6 Tape Select * 23 Ground
7 Ground 24 Diskette Write Gate *
8 Diskette Index * 25 Ground
9 Ground 26 Diskette Track 0 *
10 Not connected 27 Ground
11 Ground 28 Diskette Write Protect *
12 Diskette Drive Select * 29 Ground
13 Ground 30 Diskette Read Data *
14 Not connected 31 Ground
15 Ground 32 Diskette Head Select
16 Diskette Motor * 33 Ground
17 Ground 34 Diskette Disk Change *
===========================================================================
