Compaq LTE Elite User Manual

22 Ground 47 Select *
23 Ground 48 Control/Data *
24 Ground 49 Request *
25 Ground 50 Input/Output *
===========================================================================

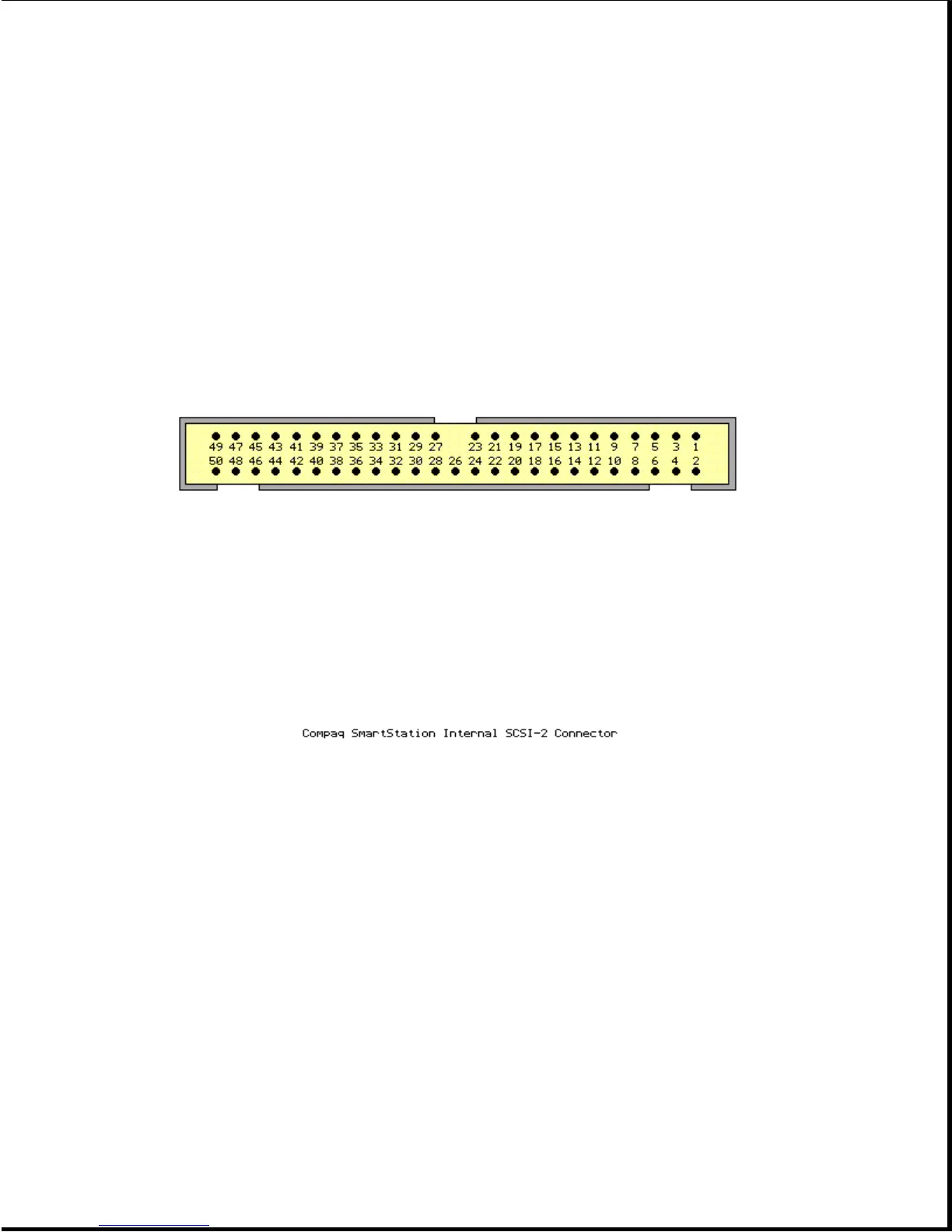

Table A-11. Compaq SmartStation Internal SCSI-2 Connector
===========================================================================
Pin Signal Pin Signal
===========================================================================
1 Ground 26 Term Power
2 SCSI Data Bit 0 27 Ground
3 Ground 28 Ground
4 SCSI Data Bit 1 29 Ground
5 Ground 30 Ground
6 SCSI Data Bit 2 31 Ground
7 Ground 32 Attention *
8 SCSI Data Bit 3 33 Ground
9 Ground 34 Ground
10 SCSI Data Bit 4 35 Ground
11 Ground 36 Busy *
12 SCSI Data Bit 5 37 Ground
13 Ground 38 Acknowledge *
14 SCSI Data Bit 6 39 Ground
15 Ground 40 Reset *
