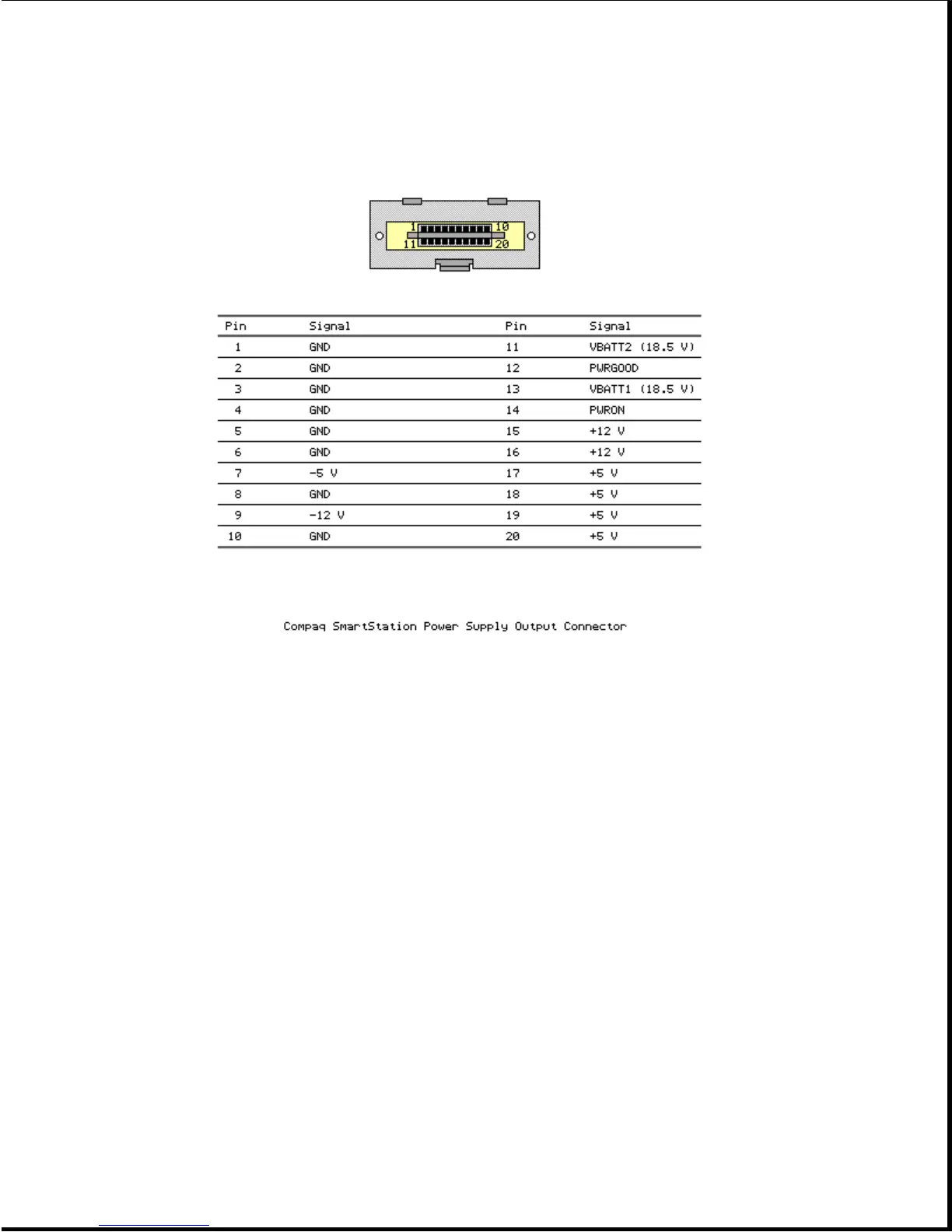

Table A-9. Compaq SmartStation Power Supply Output Connector
===========================================================================
Pin Signal Pin Signal
===========================================================================
1 Ground 11 VBatt2 (18.5V)
2 Ground 12 PwrGood
3 Ground 13 VBatt1 (18.5V)
4 Ground 14 PwrOn
5 Ground 15 +12V
6 Ground 16 +12V
7 -5V 17 +5V
8 Ground 18 +5V
9 -12V 19 +5V
10 Ground 20 +5V
===========================================================================
