This section covers external input/output (I/O) connectors and the internal
drive bay connectors for the Compaq SmartStation. Refer to Appendix A for
connector pin assignments.

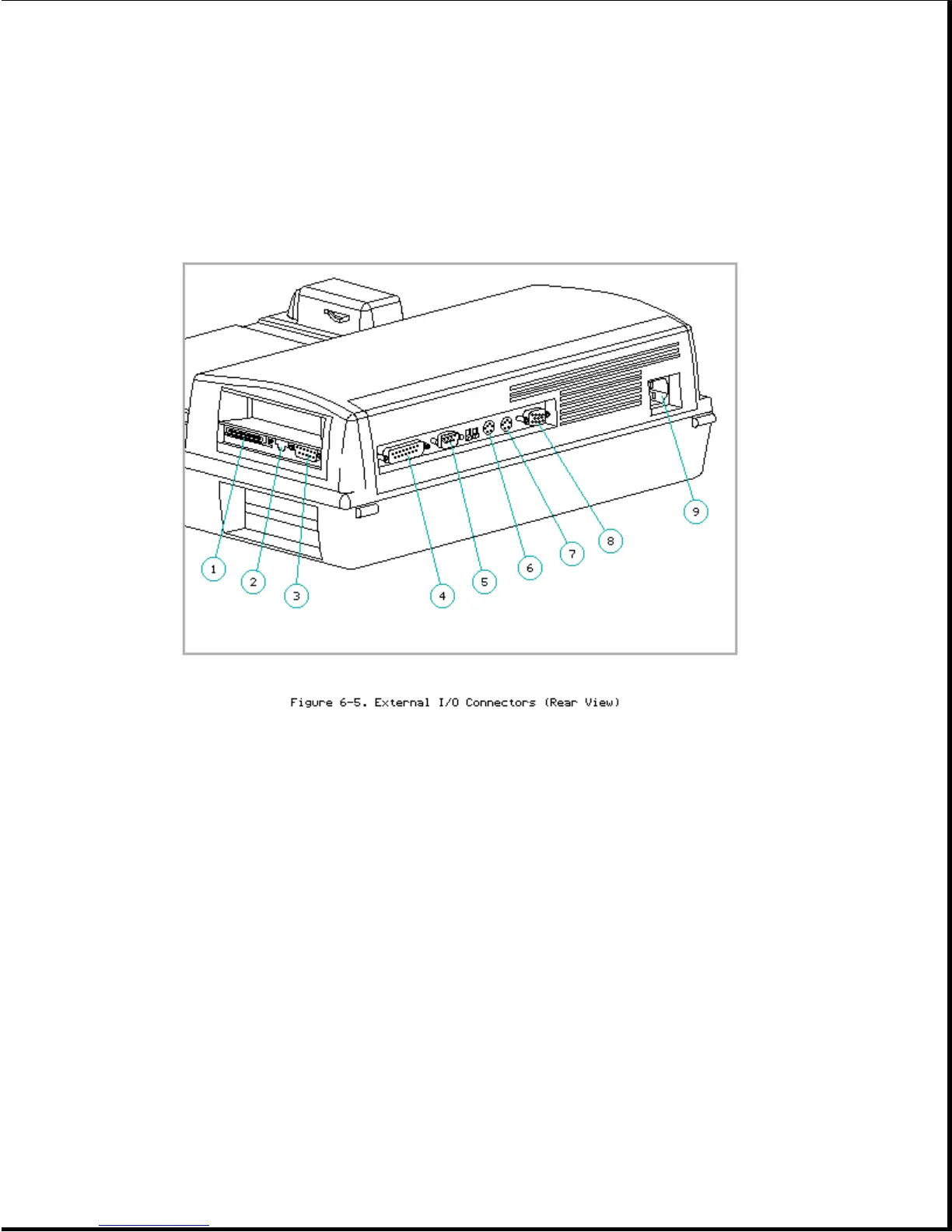

External I/O Connectors
1. SCSI-2
2. Ethernet TPE RJ-45
3. Ethernet AUI DB-15
4. Parallel
5. Serial
6. Mouse
7. External keyboard
8. External monitor
9. AC power
198-Pin External Options Connector
The 198-pin external options connector (Figure 6-6) handles the entire
electrical interface between the expansion base and the computer. The
external options connector automatically mates with the connector on the
computer during docking.
