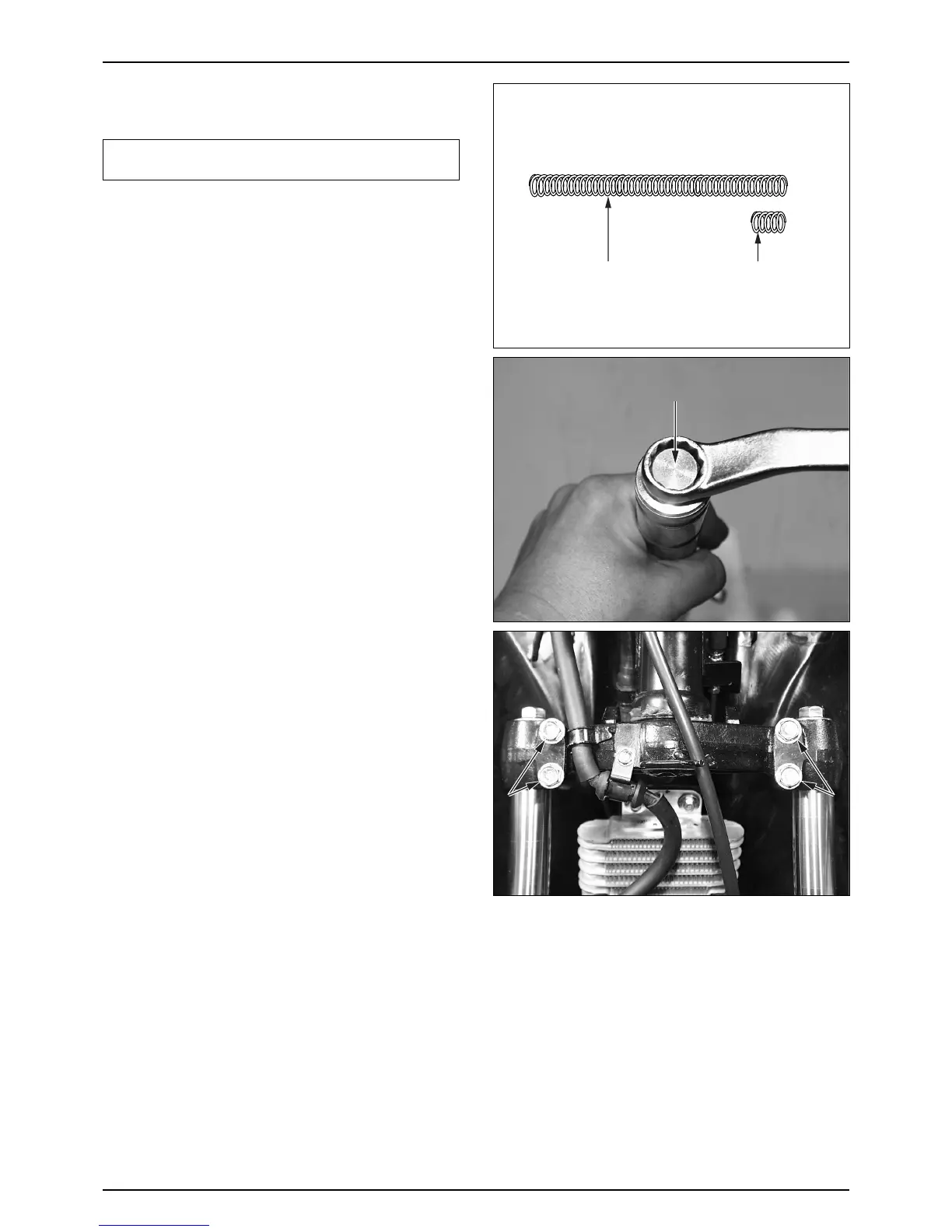

● Assemble the springs to the fork pipe.
NOTE
·Install the spring with the smaller pitch side facing
downward.
● Assemble the fork bolt to the fork pipe.
FRONT FORK
INSTALLATION
● Install the front fork to the steering stem.
● Install the front fork setting bolts.
TORQUE VALUE : 7.5 kgf
·
m
● Install the brake hose clip A to the RH. front fork.
● Install the following parts.
- Front wheel (⇨12-5 )
- Front brake caliper (⇨14-6 )
- Front fender (⇨4-3 )
- Front cover (⇨4-3 )
To Next Page
