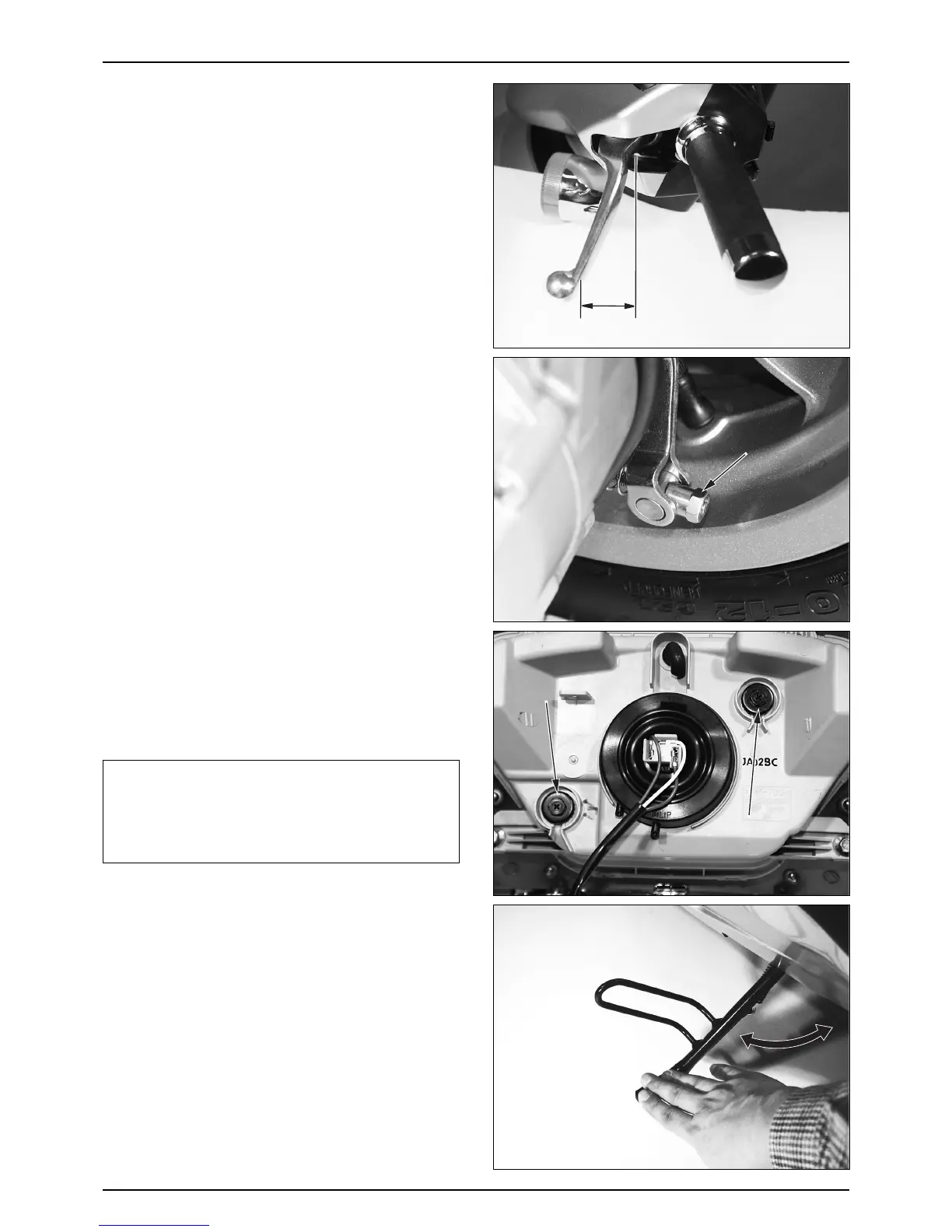

BRAKE LEVER FREE PLAY
● Check the free play after pulling the lever.
FRONT : 10~20mm
REAR : 10~20mm
PARKING BRAKE FREE PLAY ADJUSTMENT
● Turn the adjuster nut to adjust the free play.
● After initial adjustment, check the operation of the
parking brake light switch. Make additional
adjustments, if necessary.
HEADLIGHT AIM
● Adjust the headlight beam level by operating the
adjusting screw located on the upper side of the front
fender.
NOTE
•Adjust the beam level according to local laws and
regulations.
•Improper beam level adjustment may blind
oncoming drivers, or may incorrectly light the road
ahead.
SIDE STAND
● Erect the main stand.
● Pull the lower end of the side stand, and see if it moves
freely.
● If the side stand does not move smoothly, apply grease
to the pivot area.
● If the side stand moves too freely, check the side stand
spring.
● Check the axial movement of the side stand.
3-8
INSPECTIONS / ADJUSTMENTS
