FUEL SYSTEM
INSULATOR BAND
THROTTLE CABLE
SETTING SCREW
NEGATIVE
PRESSURE TUBE
SOCKET BOLT
INSULATOR
INSULATOR BAND
SETTING PLATE
O-RING INSULATOR

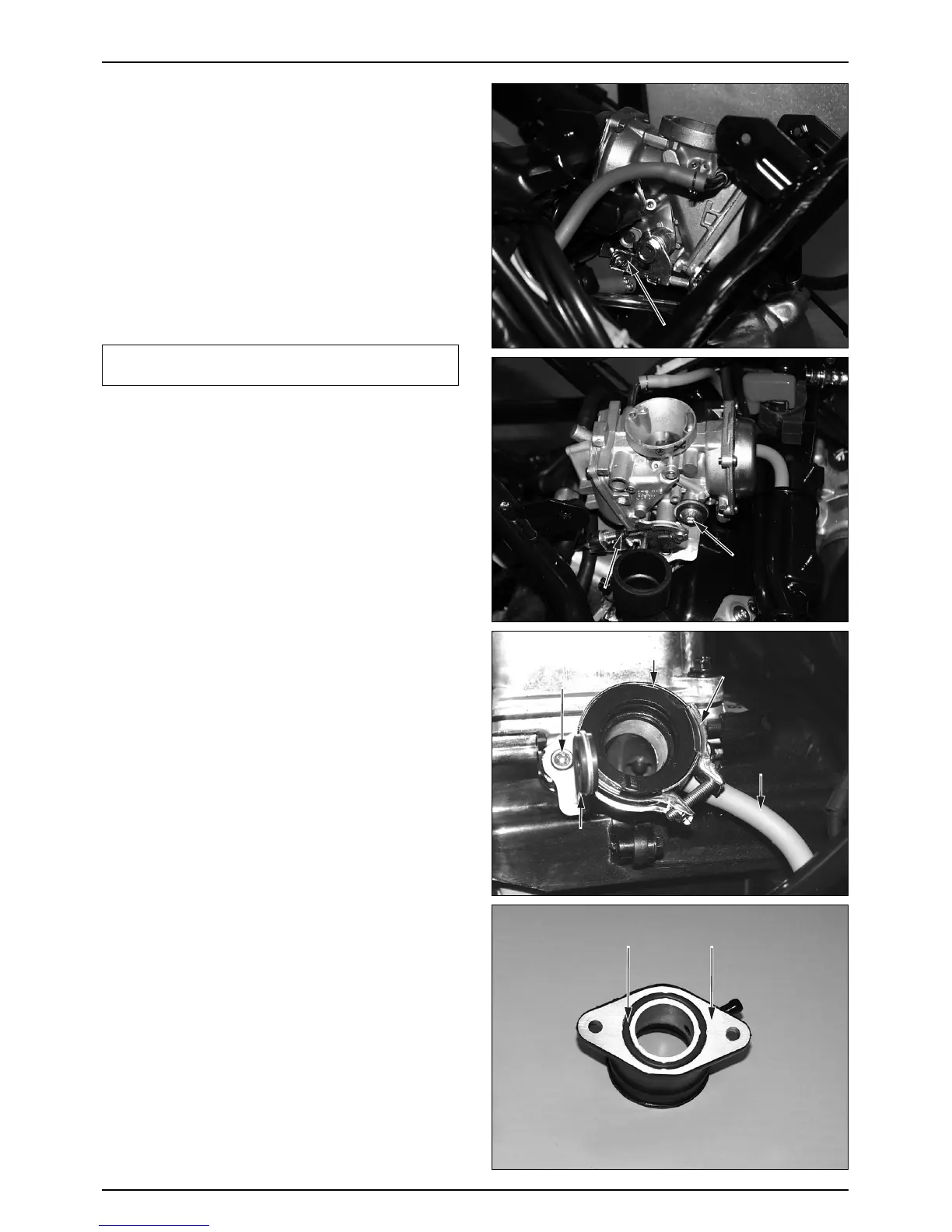

CABURETOR INSTALLATION
● Install the carburetor to the carburetor insulator.
● Tighten the carburetor insulator band screw.
● Tighten the setting screw securing the carburetor and
set plate.
● Install the fuel tube to the carburetor.
● Install the wiring coupler of the auto bystarter.
● Install the throttle cable to the carburetor.
● Install the air cleaner.(⇨5-4)
● Install the center cover.(⇨4-5)
● Install the luggage box.(⇨4-4)
NOTE
•After adjusting the carburetor, check the throttle grip
free play.
CABURETOR INSULATOR
REMOVAL
● Remove the luggage box. (⇨4-4)
● Remove the center cover. (⇨4-5)
● Remove the air cleaner. (⇨5-4)
● Remove the carburetor. (⇨5-4)
● Remove the fuel pump negative pressure tube.
● Loosen the carburetor insulator RH. socket bolt, and
remove the carburetor setting plate and socket bolt.
● Loosen the carburetor insulator LH. socket bolt, and
remove the carburetor insulator.
● Remove the carburetor insulator band.
● Install in the reverse order of removal.
INSPECTION
● Check the carburetor insulator O-ring for wear or
damage.
