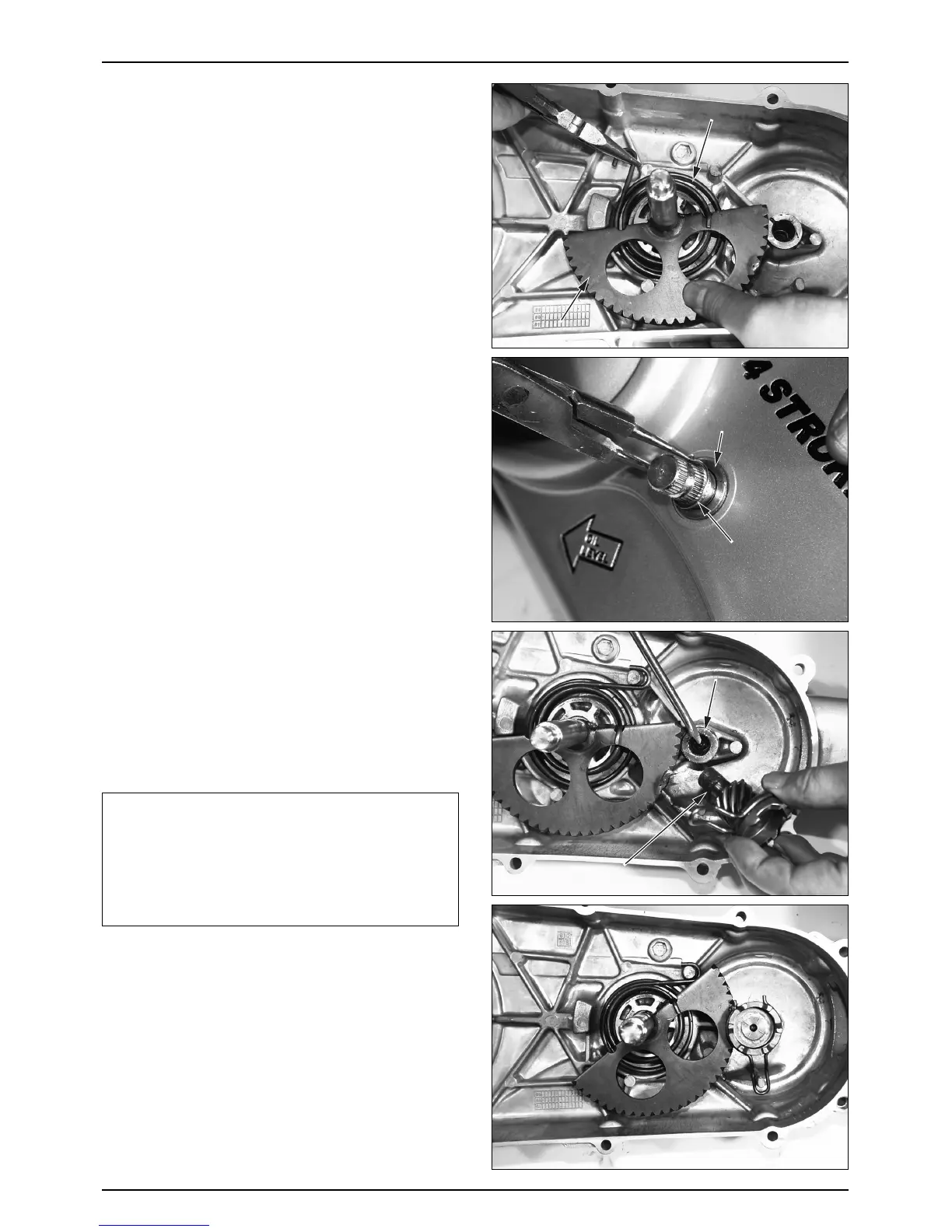

KICK STARTER INSTALLATION
● Install the kick spindle bush, spring in the LH.
crankcase cover.
● Install the kick starter spindle, then install the return
spring to the kick starter spindle.
● Install the kick starter spindle washer and 14mm
external cir-clip.
● Install the kick starter pedal to the spindle, and tighten
the flange bolt.
● Rotate the kick starter spindle using the kick starter
pedal, install the kick driven gear and 13mm thrust
washer.
● Install the LH. crankcase cover. (⇨7-2 )
NOTE
·When installing the 14mm external circlip, keep
holding the spindle manually and install the
circlip in the groove correctly.
·Apply the grease to the kick driven gear groove
and gear.
·Check the kick driven gear and the kick starter
spindle for smooth operation after installation.
7-5
LH. CRANKCASE COVER/KICK STARTER/CONTINUOUSLY VARIABLE TRANSMISSION
